INSTALLATION / CONNECTION

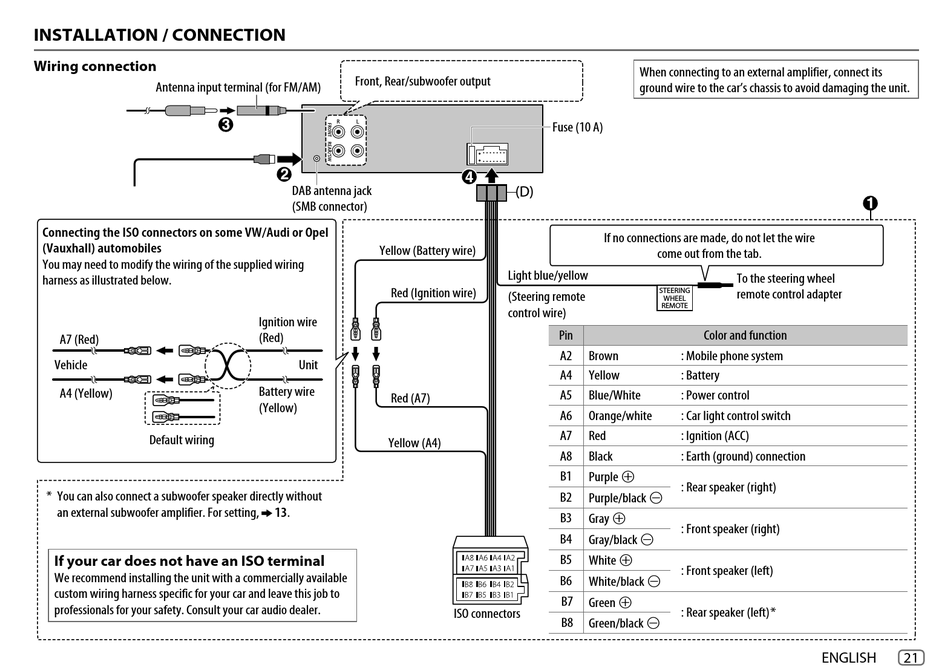

Wiring connection

Antenna input terminal (for FM/AM)
Connecting the ISO connectors on some VW/Audi or Opel
(Vauxhall) automobiles
You may need to modify the wiring of the supplied wiring
harness as illustrated below.
A7 (Red)
Vehicle
A4 (Yellow)
Default wiring
* You can also connect a subwoofer speaker directly without
an external subwoofer amplifier. For setting, 13.

If your car does not have an ISO terminal

We recommend installing the unit with a commercially available
custom wiring harness specific for your car and leave this job to
professionals for your safety. Consult your car audio dealer.
Front, Rear/subwoofer output
DAB antenna jack
(SMB connector)
Yellow (Battery wire)
Red (Ignition wire)
Ignition wire
(Red)
Unit
Battery wire
Red (A7)
(Yellow)
Yellow (A4)
Fuse (10 A)
If no connections are made, do not let the wire
Light blue/yellow
(Steering remote
control wire)
Pin
A2 Brown
A4 Yellow
A5 Blue/White
A6 Orange/white
A7 Red
A8 Black
Purple ]
B1
Purple/black [
B2
Gray ]
B3
B4 Gray/black [
B5 White ]
B6 White/black [
Green ]
B7
ISO connectors
Green/black [
B8
When connecting to an external amplifier, connect its
ground wire to the car's chassis to avoid damaging the unit.
come out from the tab.
To the steering wheel
STEERING
remote control adapter
WHEEL
REMOTE
Color and function
: Mobile phone system
: Battery
: Power control
: Car light control switch
: Ignition (ACC)
: Earth (ground) connection
: Rear speaker (right)
: Front speaker (right)
: Front speaker (left)
: Rear speaker (left) *
