General / communication loop (3)
classic 6
D
"LOOP 3"
KT
EN
Device
number
KT
Annual due
date
KT
Monthly due
date
KT
Firmware
version
KT
CRC-Code
KT
KT = briefly
pressing the
button
(< 3 seconds)
Loop for pulse 6
Briefly press the button (KT) to switch
directly from the "Pulse function" dis-
play to the "Annual due date" screen.

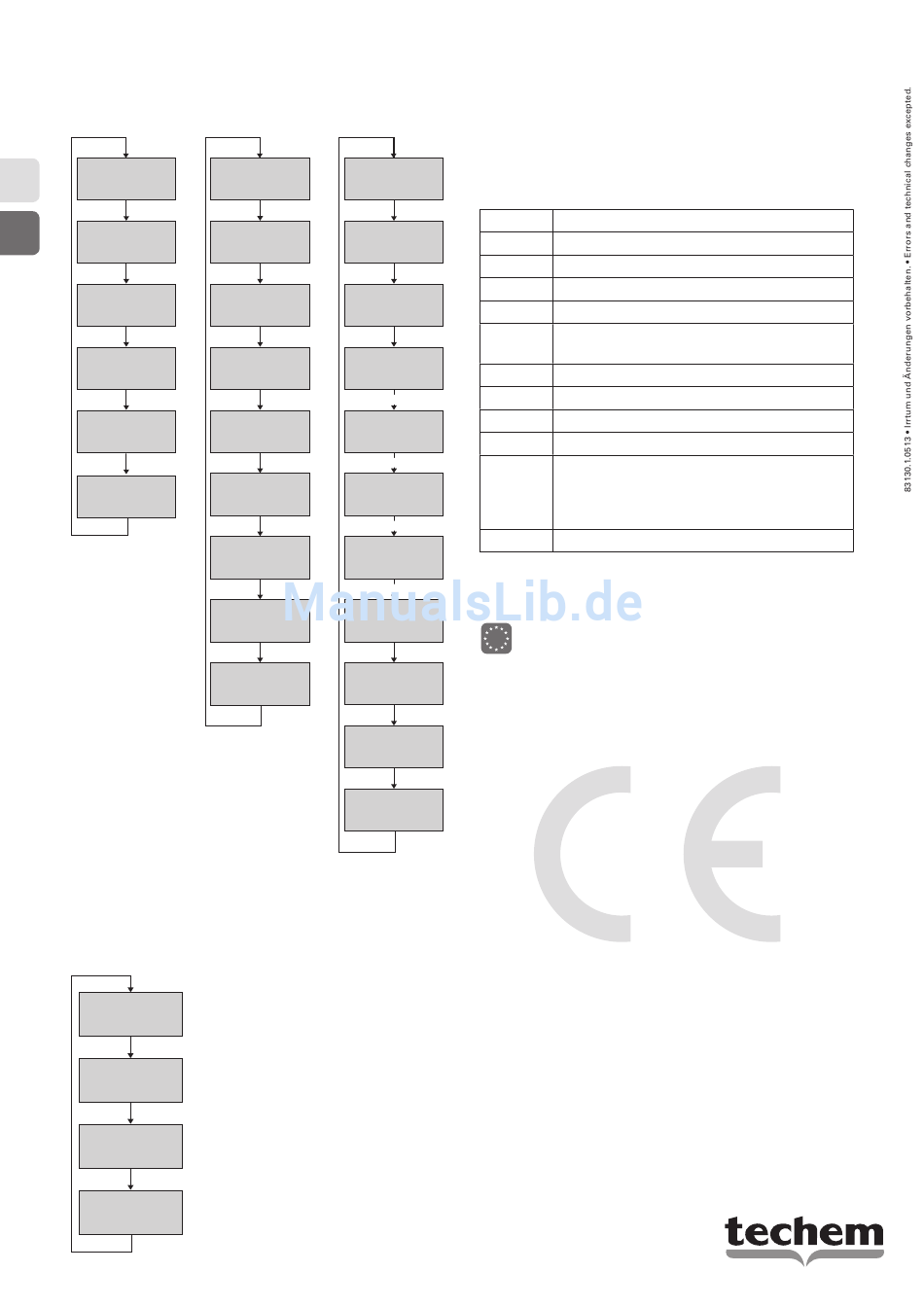

Miscellaneous loop (4)
It is possible to access parameter configuration via the
miscellaneous loop. Instructions on setting parameters
are contained in a separate document.
"LOOP 4"
KT
Date
KT
Time
KT
Code input
para-config
KT
m-bus 6 pulse 6
"LOOP 3" "LOOP 3"
KT KT
Device Device
number number
KT KT
m-Bus Pulse
KT KT
Primary Pulse
address function
Changes automatically
KT
Secondary Channel 1
address (CH1)
Changes automatically
KT
Annual due Channel 2
date (CH2)
Changes automatically
KT
Monthly due Pulse
date duration
Changes automatically
KT
Firmware Annual due
version date
KT KT
Monthly due
CRC-Code
date
KT KT
Firmware
version
KT
CRC-Code
KT

Error codes

The meter continuously performs self-diagnosis to en-
able it detect and display installation and device errors.
If an error occurs, the error code is shown in the user
loop. All the other windows continue to be available by
pressing the button.
FL nEG Wrong flow direction
DIFF nEG Negative temperature difference
F0 Flow measurement not possible
F1 Feed sensor failure
F2 Return sensor failure
F3 Electronics for evaluating the temperature
faulty
F4 Battery flat
F5 Feed sensor short-circuit
F6 Return sensor short-circuit
F7 Internal memory mode malfunction
F8 Error F1, F2, F3, F5 or F6 present for more
than 8 hours; attempted manipulation
detected. No further measurements will be
carried out.
F9 Electronics error
The error codes FL nEG, DIFF nEG and F0 are no longer
displayed as soon as the cause of the error is rectified.

EU Declaration of Conformity

Landis+Gyr GmbH, Humboldtstr. 64, D-90459, Nurem-
berg, Germany, hereby declares that this product com-
plies with the requirements of the following directives:
•
Measuring instruments Directive (2004/22 EC),
•
Electromagnetic compatibility of electrical and elec-
tronic equipment (2004/108/EC)
•
Directive concerning radio equipment and telecom-
munication equipment (1999/5/EC; R&TTE)
•
Directive restricting the use of certain hazardous
substances in electrical and electronic equipment
(2002/95/EC; RoHS)
EC type-examination certificate
EC design examination certificate DE-11-MI004-PTB003
Certificate of approval of the
quality management system
Landis+Gyr GmbH
Humboldtstr. 64
D-90459 Nuremberg
If required, the full Declaration of Conformity is available
from Techem Energy Services GmbH on request.
Techem Energy Services GmbH
Hauptstraße 89 · D-65760 Eschborn
www.techem.de · www.techem.com
DE-11-MI004-PTB004
DE-12-AQ-PTB006MID
