1 3 . F 2 C - T r e d u c t i o n a s s e m b l y w i t h i n t e g r a t e d r o l l e r b e a r i n g s
The safety instructions given before, item 6 to 7, are very important, please observe every single item.
Non-observance may cause injuries, machine damage or the warranty may lapse.
13.1 F2C-T installation and assembly procedure
The FINE CYCLO reduction assemblies Type F2C-T are shipped without painting.
13.2 F2C-T lubrication prior assembly
The reduction assembly series FINE CYCLO Type F2C-T are drained of grease at the time of shipment,
please be sure to fill the unit with grease Multemp FZ No.00 or Shell Alvania EP GreaseR0, quanti-

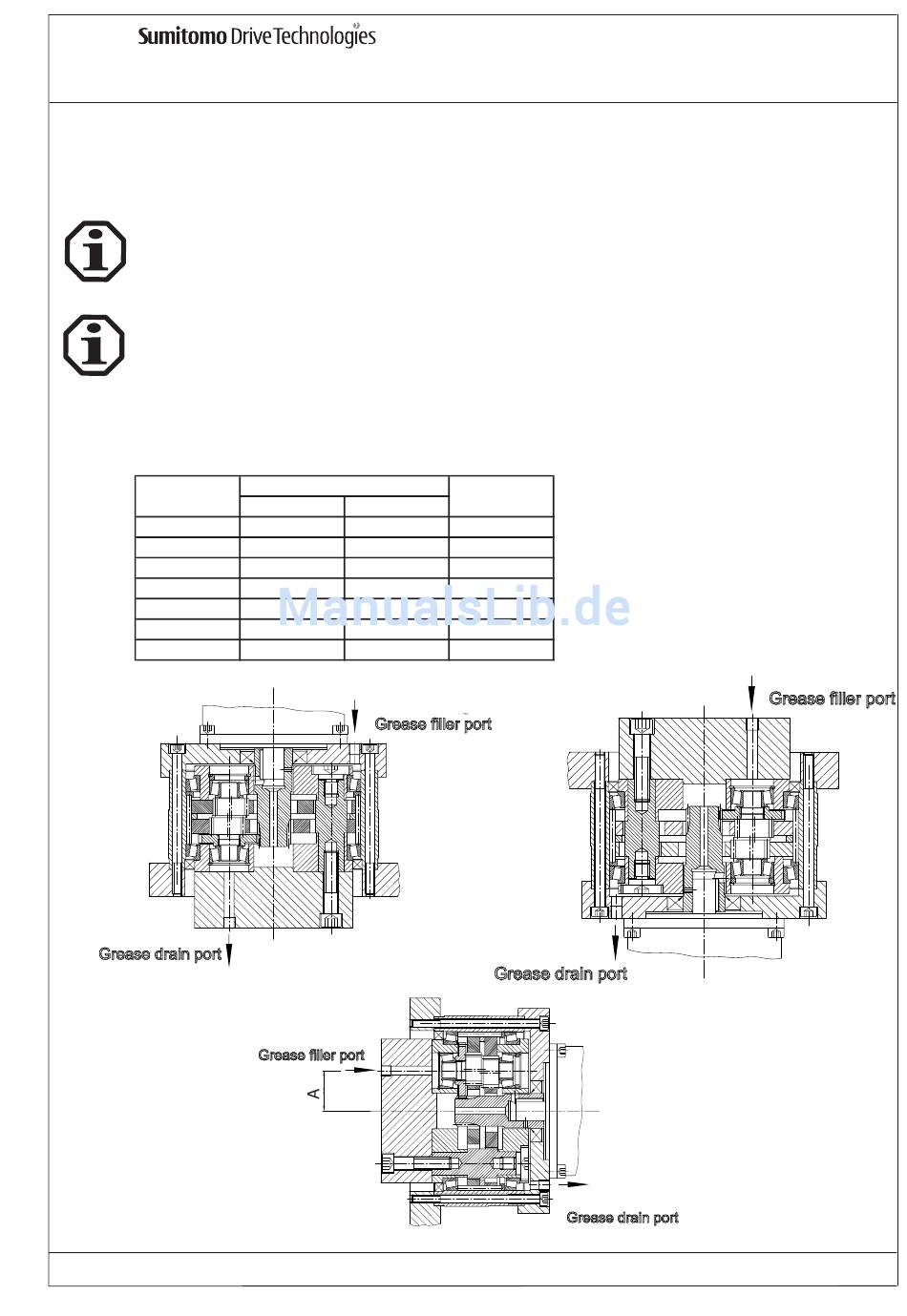

ties according to tab. 1 (grease filler port position see picture below). These greases are suitable for
operating temperatures of -10°C to +40°C.
After the units have been properly filled with grease, the are lifetime lubricated.
We recommend the unit is returned to Sumitomo Drive Technologies for inspection and regreasing after
5 years to increase service lifetime.
Tab. 1
F2C-T
155
255
355
455
555
655
755
Vertical 1
FC_GB_01_05 NO.991051
F I N E C Y C L O O p e r a t i n g M a n u a l
Grease quantity [g] *
vertical horizontal
80 60
120 100
230 180
300 240
400 320
700 560
800 640
Horizontal
*:
Note:
A[mm]
Grease quantity is valid for the gearbox
25
itself only.
31 For the space between gearbox and inter-
mediate flange additional quantities have
39
to be considered accordingly:
47
Horizontal:
55
Vertical 1:
63
vertical 2:
73
Vertical 2
Issue: 01/05
50%
100%
100%
