9.3 FC-A a
dditional dowel pins - graph
Fine Cyclo reduction unit
Dowel
pin
Thread
Slow speed flange
Dowel pin
9.4 FC-A l ubrication and maintenance
The FINE CYCLO reduction assemblies FC-A are grease lubricated for life and suitable for any mount-
ing position.
We recommend the unit is returned to Sumitomo Drive Technologies for inspection and regreasing after
5 years to increase service lifetime.
9.5 FC-A for use in hazardeous environment
The FINE CYCLO reduction assemblies FC-A fulfil the requirements of guideline 94/9EU, provided
Ex
installation is in accordance with the assembly tolerances and assembly methods shown at tab. 1 and
tab. 2, as well as safety instructions shown in chapter 6.6, 6.7 and 7.
9.6 FC-A mounting examples
For mounting examples please refer to Precision Catalogue No. 991007.
FC_GB_01_05 NO.991051
F I N E C Y C L O O p e r a t i n g M a n u a l

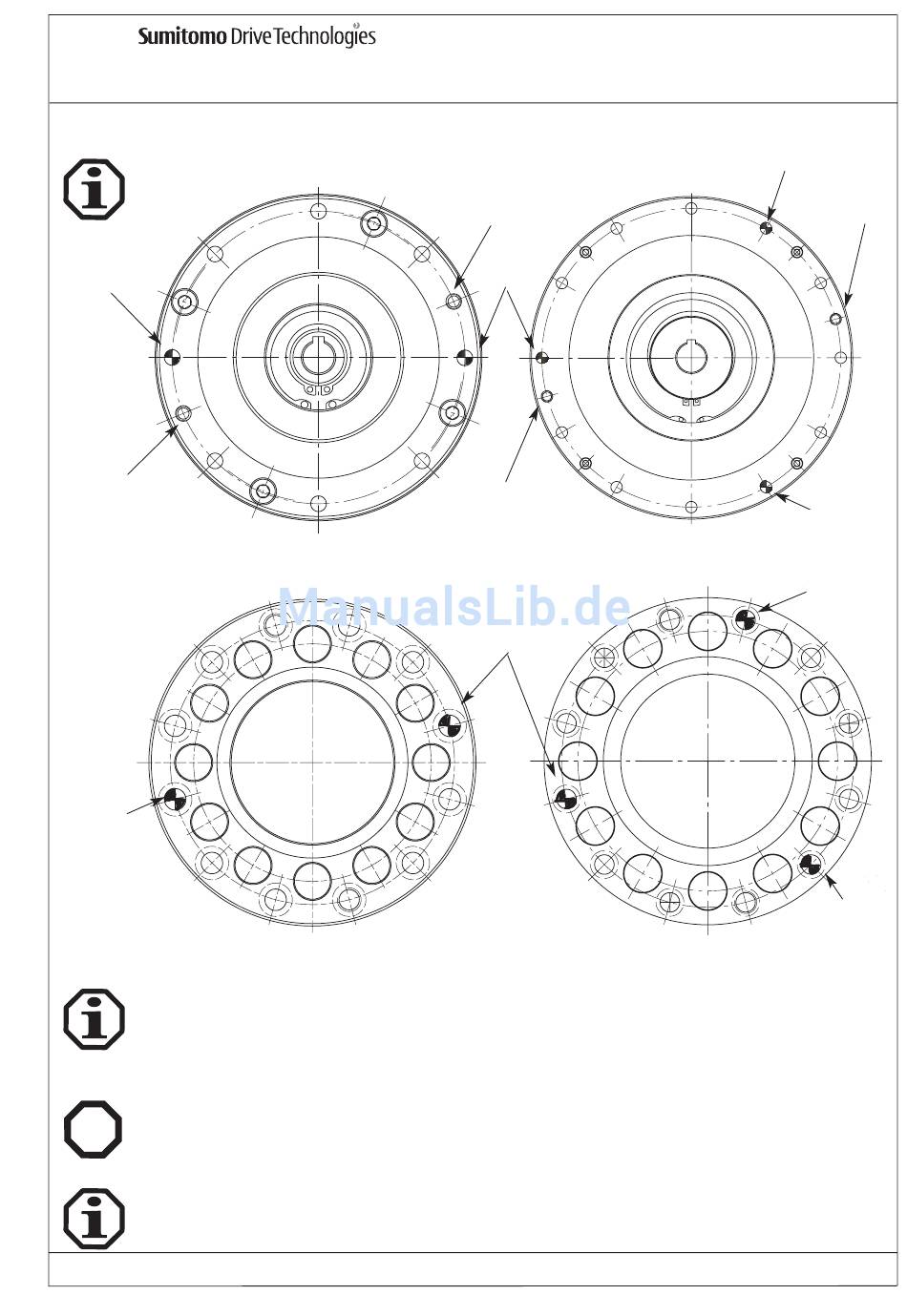

FC-A 15-65

FC-A 15-65
Thread
Dowel pin
Thread
Dowel pin
Issue: 01/05 Issue: 01/04
Dowel pin
Dowel pin
FC-A 75
Dowel pin
Dowel pin
FC-A 75
Page 8
Thread
