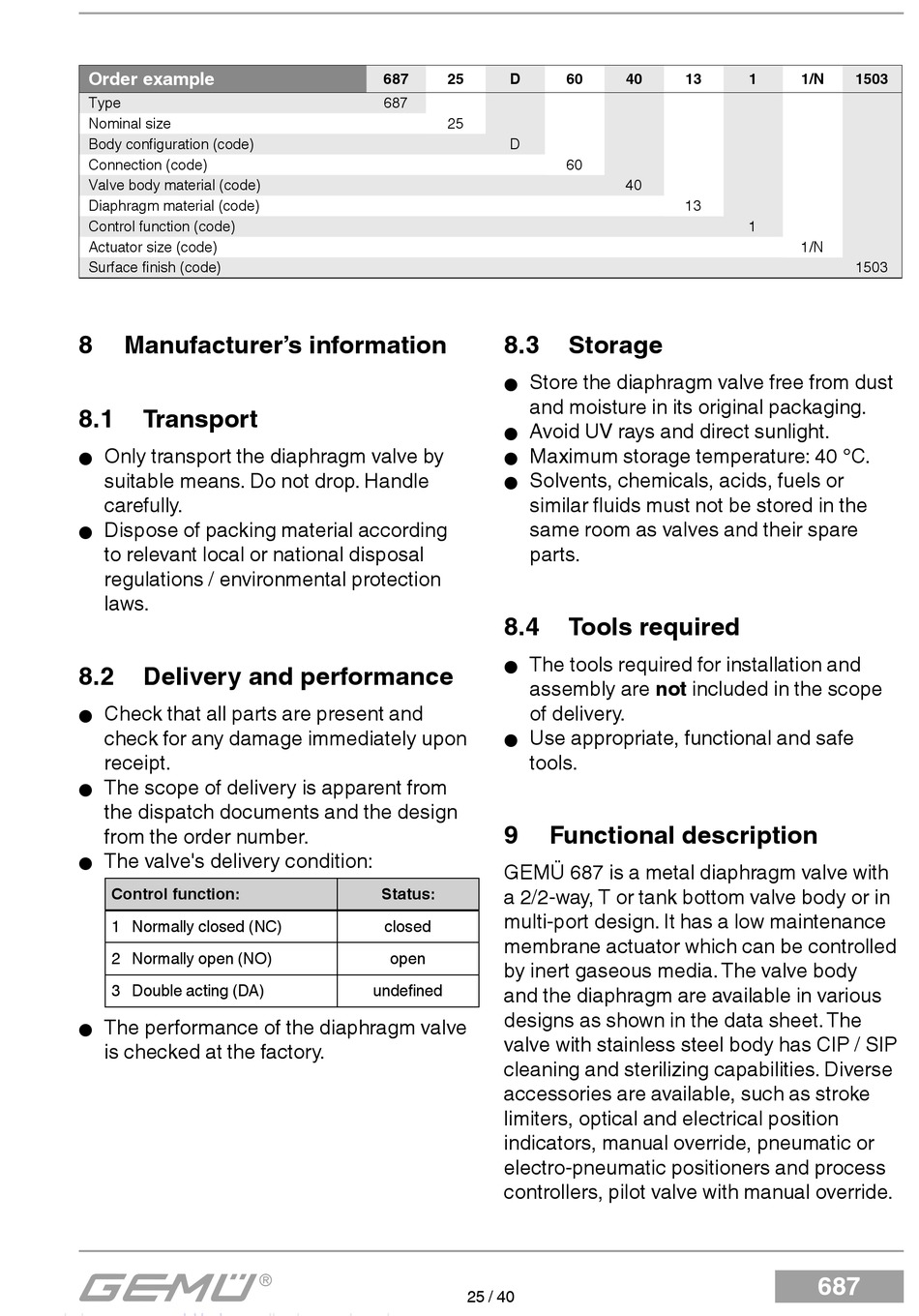

Order example
Type
Nominal size
Body configuration (code)
Connection (code)
Valve body material (code)
Diaphragm material (code)
Control function (code)
Actuator size (code)
Surface finish (code)
8

Manufacturer's information

8.1

Transport

Only transport the diaphragm valve by
G
suitable means. Do not drop. Handle
carefully.
Dispose of packing material according
G
to relevant local or national disposal
regulations / environmental protection
laws.
8.2

Delivery and performance

Check that all parts are present and
G
check for any damage immediately upon
receipt.
The scope of delivery is apparent from
G
the dispatch documents and the design
from the order number.
The valve's delivery condition:
G
Control function:
1 Normally closed (NC)
2 Normally open (NO)
3 Double acting (DA)
The performance of the diaphragm valve
G
is checked at the factory.
687 25 D
687
25
D
8.3
Store the diaphragm valve free from dust
G
and moisture in its original packaging.
Avoid UV rays and direct sunlight.
G
Maximum storage temperature: 40 °C.
G
Solvents, chemicals, acids, fuels or
G
similar fl uids must not be stored in the
same room as valves and their spare
parts.
8.4
The tools required for installation and
G
assembly are not included in the scope
of delivery.
Use appropriate, functional and safe
G
tools.
9
GEMÜ 687 is a metal diaphragm valve with
a 2/2-way, T or tank bottom valve body or in
Status:
multi-port design. It has a low maintenance
closed
membrane actuator which can be controlled
open
by inert gaseous media. The valve body
undefined
and the diaphragm are available in various
designs as shown in the data sheet. The
valve with stainless steel body has CIP / SIP
cleaning and sterilizing capabilities. Diverse
accessories are available, such as stroke
limiters, optical and electrical position
indicators, manual override, pneumatic or
electro-pneumatic positioners and process
controllers, pilot valve with manual override.
25 / 40
60 40 13
60
40
13

Storage

Tools required

Functional description

1 1/N 1503
1
1/N
1503
