A. Removing the DV5HH base cover
1. Remove the humidifi er chamber from the DV5HH base.

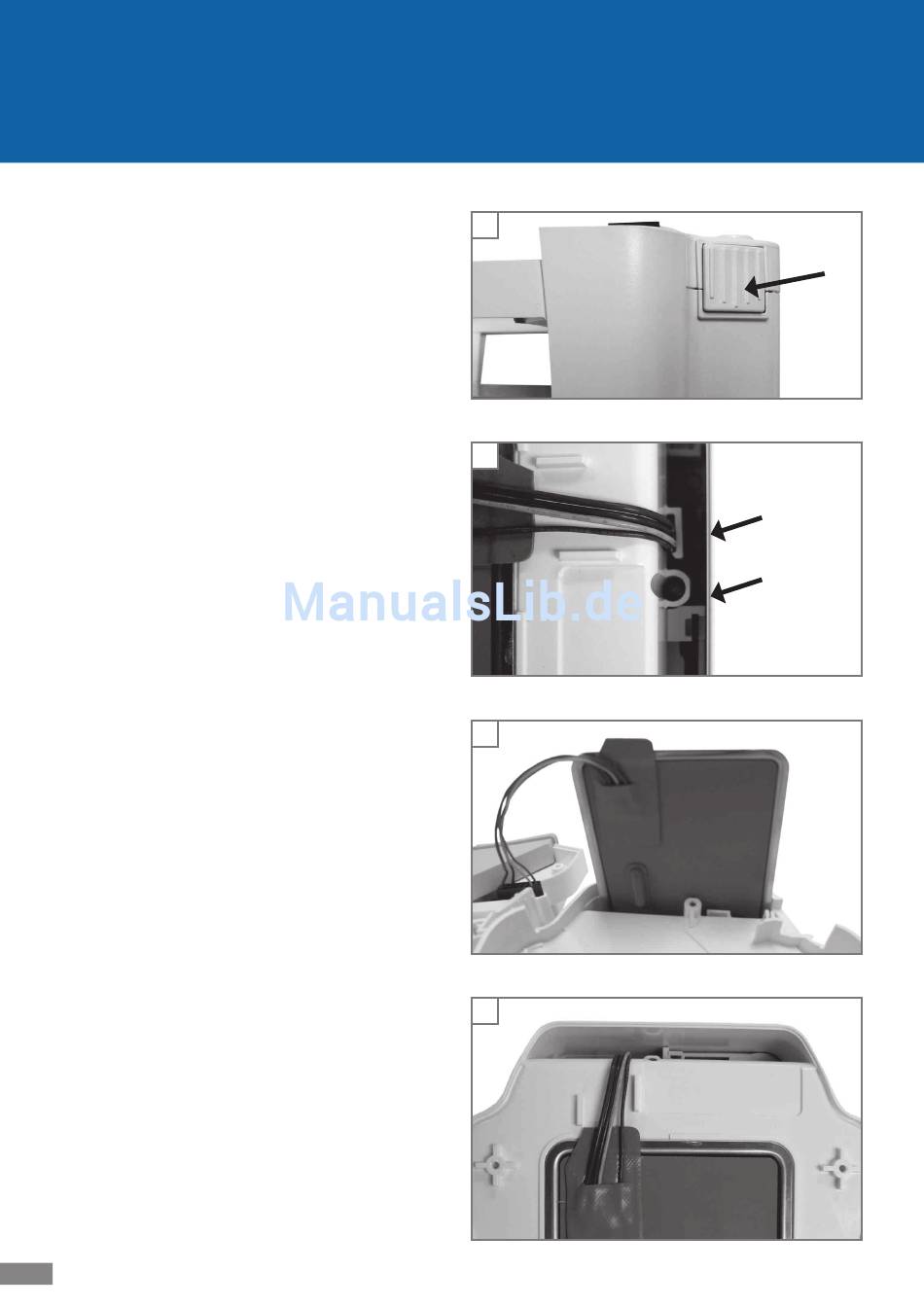

2. Push the release button (Fig. 1) on the DV5HH base and
lift the PAP device off the heater base and set aside in a
safe place.
3. Remove two T-10 screws from the top cover of the heater
base.
4. Turn the base over so that the bottom of the unit faces up
and remove four T-10 screws.
5. Lift the bottom cover off the unit
6. Remove the fi nal T-10 screw beside the wire harness clip.
(Fig. 2)
7. Hold the heater plate onto the base and turn the unit over.
8. Gently pull the top of the unit off the chassis and carefully
tilt the top without pulling the wire harness out of the
connector.
9. Carefully release the wire harness from the harness clip.
Reposition the heater plate so that the orange side is fac-
ing the harness clip and carefully push the heater plate
through the opening. (Fig. 3)
B. Replacing the DV5HH base cover
1. Position the heater plate so that the orange side is fac-
ing the harness clip and carefully push the heater plate
through the opening in the base. See image above.
2. Hold the heater plate onto the base and carefully insert
the harness wires, two at a time, into the harness clip. See
image above.
3. Install the top of the base onto the heater chassis with the
wire harness and manifold clear of all edges and the latch
working smooth and free. Fasten top to chassis with two
T-10 screws.
4. Holding the heater plate onto the base, turn the unit over
and position heater plate into the shallow opening with
the metal side facing down and the orange plastic side
facing up. Move the harness wires between wire guides.
(Fig. 4)
5. Replace the T-10 screw beside the wire harness clip.
6. Verify that the silicone spacer is in place on the inside of
the bottom cover. (Fig. 5)
7. Install the cover onto the bottom of the unit matching the
edges. Replace the 4 remaining T-10 screws in the bottom
cover.
8. With the air supply support plug attached to the back of
the PAP device, place the front of the PAP onto the front
of the heater base against the brackets and push the back
of the PAP down so that the latch closes and the electrical
connector is tight.
9. Slide the humidifi er chamber into the heater base until it
clicks into place.
26
LT-2026
1
2
3
4
DV5HH
harness
clip
T-10
screw
