Installation guidelines
Install the instrument:
• On a level surface
• In a clean, dry, well ventilated, temperature controlled location
• In a location with minimum vibrations that has no direct exposure to sunlight
• In a location where there is sufficient clearance around it to make connections and to do
maintenance tasks
• In a location where the power switch and power cord are visible and easily accessible

Mechanical installation

Install the mechanical Z-drive
Personal injury hazard. Instruments or components are heavy. Use assistance to install or move.
Pinch hazard. Parts that move can pinch and cause injury. Do not touch moving parts.

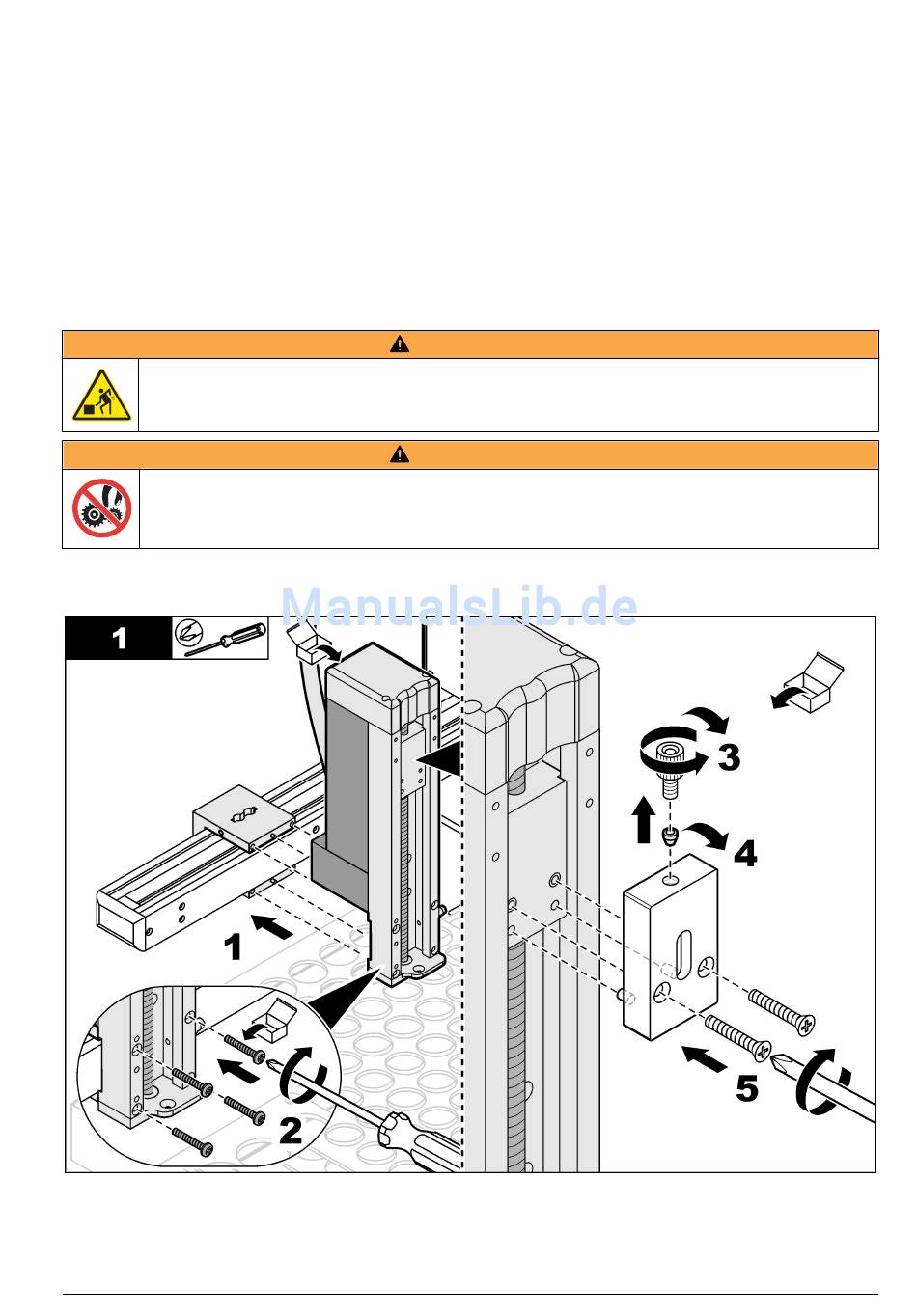

Refer to the illustrated steps that follow to install the supplied mechanical Z-drive.
Item to collect: Phillips-head screwdriver
