MOUNTING INSTRUCTIONS
7

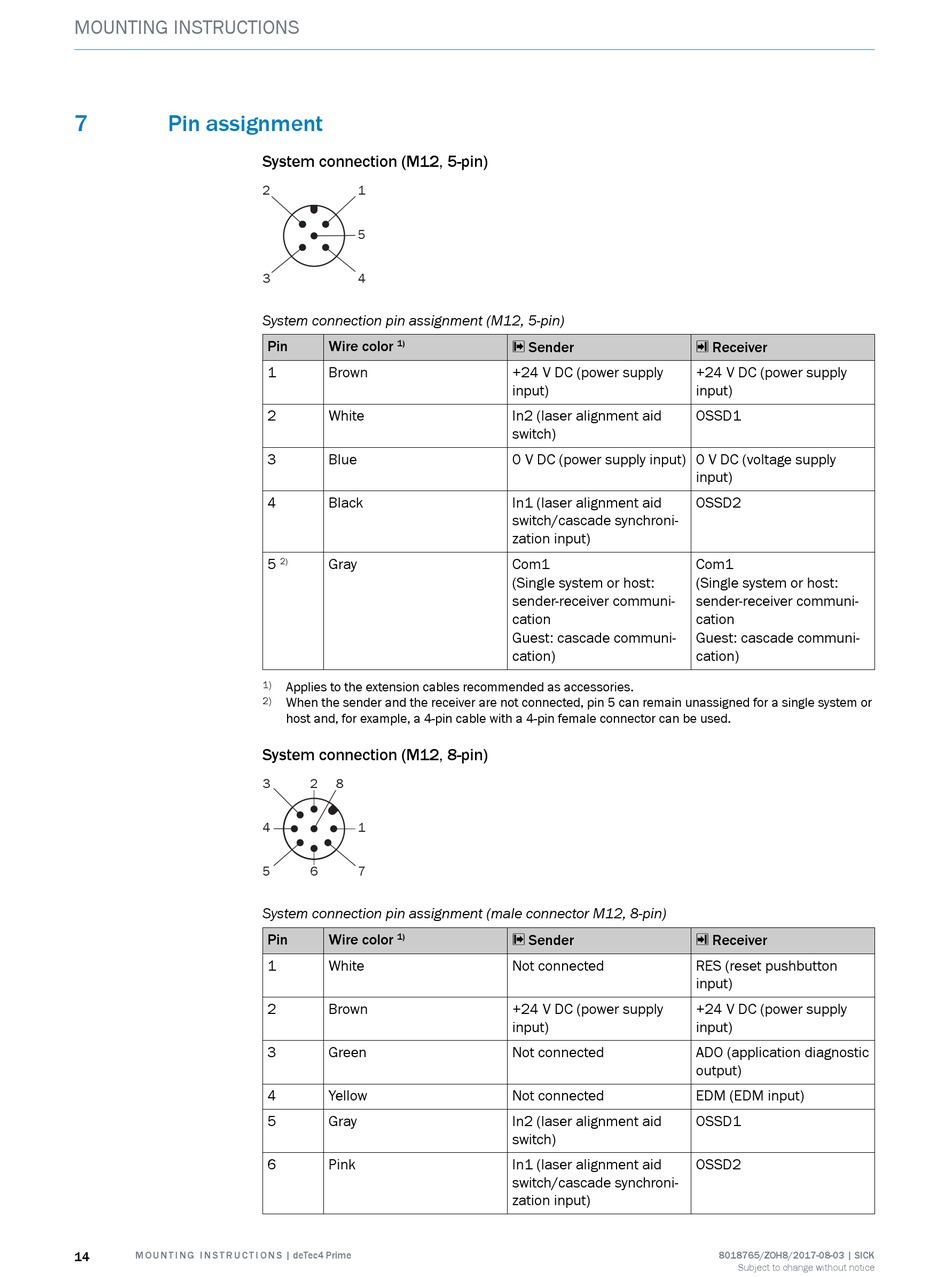

Pin assignment

14 M O U N T I N G I N S T R U C T I O N S | deTec4 Prime
System connection (M12, 5-pin)
2 1
5
3 4
System connection pin assignment (M12, 5-pin)
Pin Wire color 1)
1 Brown
2 White
3 Blue
4 Black
5 Gray
2)
1) Applies to the extension cables recommended as accessories.
2) When the sender and the receiver are not connected, pin 5 can remain unassigned for a single system or
host and, for example, a 4-pin cable with a 4-pin female connector can be used.
System connection (M12, 8-pin)
3 2 8
4 1
5 6 7
System connection pin assignment (male connector M12, 8-pin)
Pin Wire color
1)
1 White
2 Brown
3 Green
4 Yellow
5 Gray
6 Pink
s Sender
+24 V DC (power supply
input)
In2 (laser alignment aid
switch)
0 V DC (power supply input) 0 V DC (voltage supply
In1 (laser alignment aid
switch/cascade synchroni‐
zation input)
Com1
(Single system or host:
sender-receiver communi‐
cation
Guest: cascade communi‐
cation)
s Sender
Not connected
+24 V DC (power supply
input)
Not connected
Not connected
In2 (laser alignment aid
switch)
In1 (laser alignment aid
switch/cascade synchroni‐
zation input)
r Receiver
+24 V DC (power supply
input)
OSSD1
input)
OSSD2
Com1
(Single system or host:
sender-receiver communi‐
cation
Guest: cascade communi‐
cation)
r Receiver
RES (reset pushbutton
input)
+24 V DC (power supply
input)
ADO (application diagnostic
output)
EDM (EDM input)
OSSD1
OSSD2
8018765/ZOH8/2017-08-03 | SICK
Subject to change without notice
