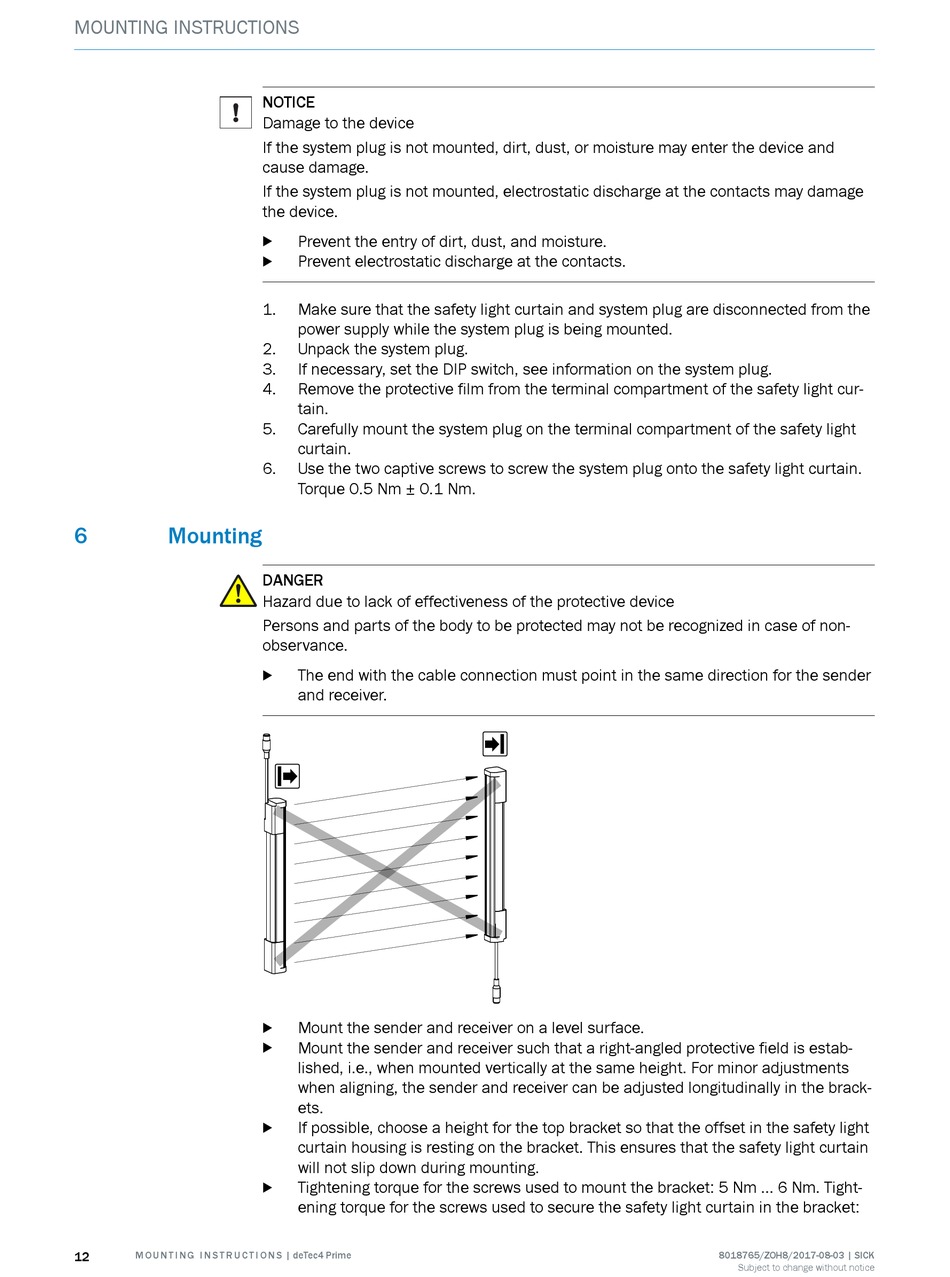

6 Mounting
12 M O U N T I N G I N S T R U C T I O N S | deTec4 Prime
NOTICE
Damage to the device
If the system plug is not mounted, dirt, dust, or moisture may enter the device and
cause damage.
If the system plug is not mounted, electrostatic discharge at the contacts may damage
the device.
Prevent the entry of dirt, dust, and moisture.
b
Prevent electrostatic discharge at the contacts.
b
1. Make sure that the safety light curtain and system plug are disconnected from the
power supply while the system plug is being mounted.
2. Unpack the system plug.
3. If necessary, set the DIP switch, see information on the system plug.
4. Remove the protective film from the terminal compartment of the safety light cur‐
tain.
5. Carefully mount the system plug on the terminal compartment of the safety light
curtain.
6. Use the two captive screws to screw the system plug onto the safety light curtain.
Torque 0.5 Nm ± 0.1 Nm.
DANGER
Hazard due to lack of effectiveness of the protective device
Persons and parts of the body to be protected may not be recognized in case of non-
observance.
The end with the cable connection must point in the same direction for the sender
b
and receiver.
Mount the sender and receiver on a level surface.
b
Mount the sender and receiver such that a right-angled protective field is estab‐
b
lished, i.e., when mounted vertically at the same height. For minor adjustments
when aligning, the sender and receiver can be adjusted longitudinally in the brack‐
ets.
If possible, choose a height for the top bracket so that the offset in the safety light
b
curtain housing is resting on the bracket. This ensures that the safety light curtain
will not slip down during mounting.
Tightening torque for the screws used to mount the bracket: 5 Nm ... 6 Nm. Tight‐
b
ening torque for the screws used to secure the safety light curtain in the bracket:
