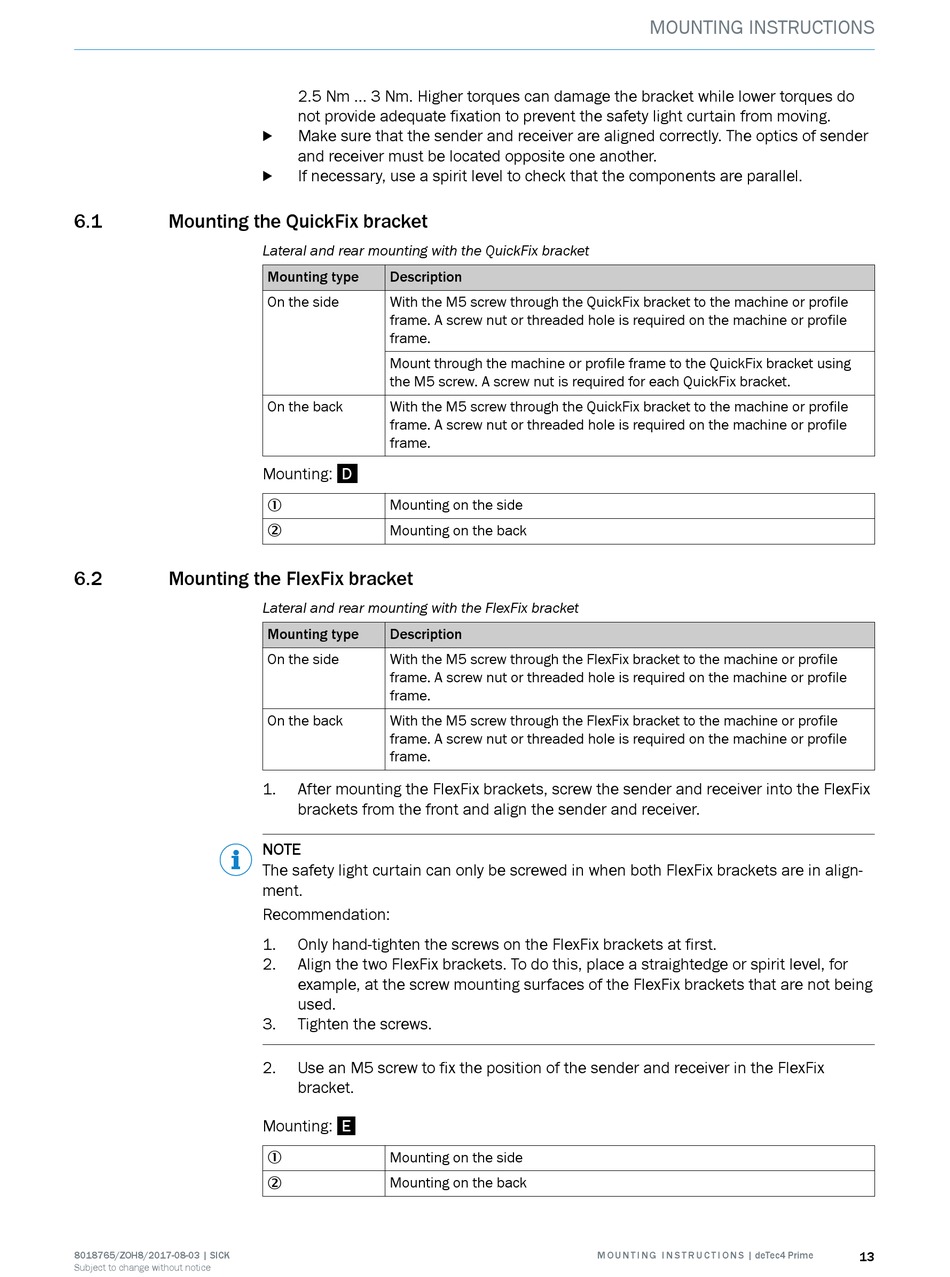

SICK deTec4 Prime Montageanleitung Seite 13

6.1 Mounting the QuickFix bracket
6.2 Mounting the FlexFix bracket
8018765/ZOH8/2017-08-03 | SICK
Subject to change without notice
2.5 Nm ... 3 Nm. Higher torques can damage the bracket while lower torques do
not provide adequate fixation to prevent the safety light curtain from moving.
Make sure that the sender and receiver are aligned correctly. The optics of sender
b
and receiver must be located opposite one another.
If necessary, use a spirit level to check that the components are parallel.
b
Lateral and rear mounting with the QuickFix bracket
Mounting type Description
On the side With the M5 screw through the QuickFix bracket to the machine or profile
frame. A screw nut or threaded hole is required on the machine or profile
frame.
Mount through the machine or profile frame to the QuickFix bracket using
the M5 screw. A screw nut is required for each QuickFix bracket.
On the back With the M5 screw through the QuickFix bracket to the machine or profile
frame. A screw nut or threaded hole is required on the machine or profile
frame.
Mounting: D
Mounting on the side
1
Mounting on the back
2
Lateral and rear mounting with the FlexFix bracket
Mounting type Description
On the side With the M5 screw through the FlexFix bracket to the machine or profile
frame. A screw nut or threaded hole is required on the machine or profile
frame.
On the back With the M5 screw through the FlexFix bracket to the machine or profile
frame. A screw nut or threaded hole is required on the machine or profile
frame.
1. After mounting the FlexFix brackets, screw the sender and receiver into the FlexFix
brackets from the front and align the sender and receiver.
NOTE
The safety light curtain can only be screwed in when both FlexFix brackets are in align‐
ment.
Recommendation:
1. Only hand-tighten the screws on the FlexFix brackets at first.
2. Align the two FlexFix brackets. To do this, place a straightedge or spirit level, for
example, at the screw mounting surfaces of the FlexFix brackets that are not being
used.
3. Tighten the screws.
2. Use an M5 screw to fix the position of the sender and receiver in the FlexFix
bracket.
Mounting: E
Mounting on the side
1
Mounting on the back
2
