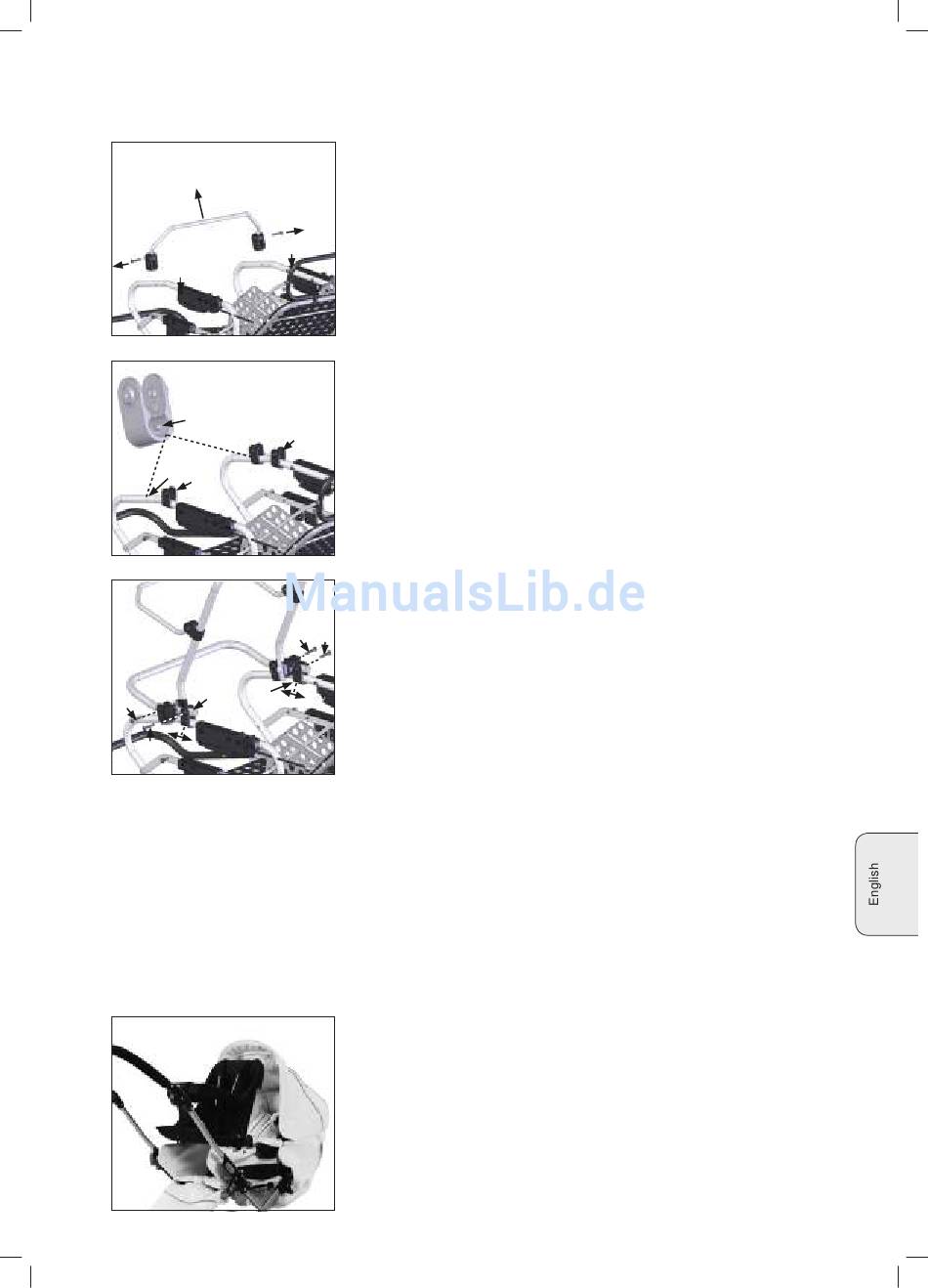

Assembly of Toddler Seat
6
9
10
7
11
12
13
8
15
14
16
9
Manual Syskonsits v. 2.7
• Remove the seat unit from the chassis
• Remove the crutch strap from the bumper bar
• Remove the bumper bar by removing the screw (9) with a star-headed
screwdriver. Detach the front bar and the clip. Save these in a safe
9
place so you can reassemble them when required
• Undo the popper on the armrest (10) which is located closest to the foot-
10
rest end and fold the seat unit fabrics away
• Assemble the four U-clamps around the armrests
IMPORTANT!
• Assemble the two U-clamps with the plastic button on the inside
13
(11) so that the plastic button fits into the hole on the inside of the
armrest (12). Place one U-clamp on each side
• Then assemble the two remaining U-clamps (13) (without the
plastic button on the inside) higher up the armrest, towards the
backrest (one on each side)
• Position the Toddler Seat on the seat unit. Open the poppers on
the Toddler Seat fabrics to make it easier to access the screws
• Fasten two screws (14) through the front U-clamps with a star-
14
16
headed screw driver
• Pull up the two top/rear U-clamps (15) as far as required to enable
the screws to fit through the rear U-clamps and the holes in the
15
Toddler Seat frame. Tighten the screws (16) in the top/rear clamps.
Secure the poppers on the Toddler Seat fabrics
• Make sure that the Toddler Seat is correctly assembled. When cor-
rectly assembled the large knob is positioned above the bend of the
seat frame (Picture 11, nr. 21)
WARNING!
• The Toddler Seat should always be assembled so that the child is
facing the handle of the pram
Only applicable to the Sport Chassis with reversible handle:
• When assembling the Toddler Seat on the Sport chassis, the re-
versible handle must be in its original position (the position neces-
sary for folding the chassis) and the child in the Toddler Seat must
be facing the handle. Never reverse the handle!
• This is how the Toddler Seat looks when correctly assembled.
Please note that the backrest of the pushchair cannot be placed in
the top/most upright position as there will be insufficient space for the
child in the pushchair
(the fabric is not shown in order to make the instructions clearer)
