Assembly of Toddler Seat
1
2
1
2
4
4
5
3
3
4
7a
7
5
8
22

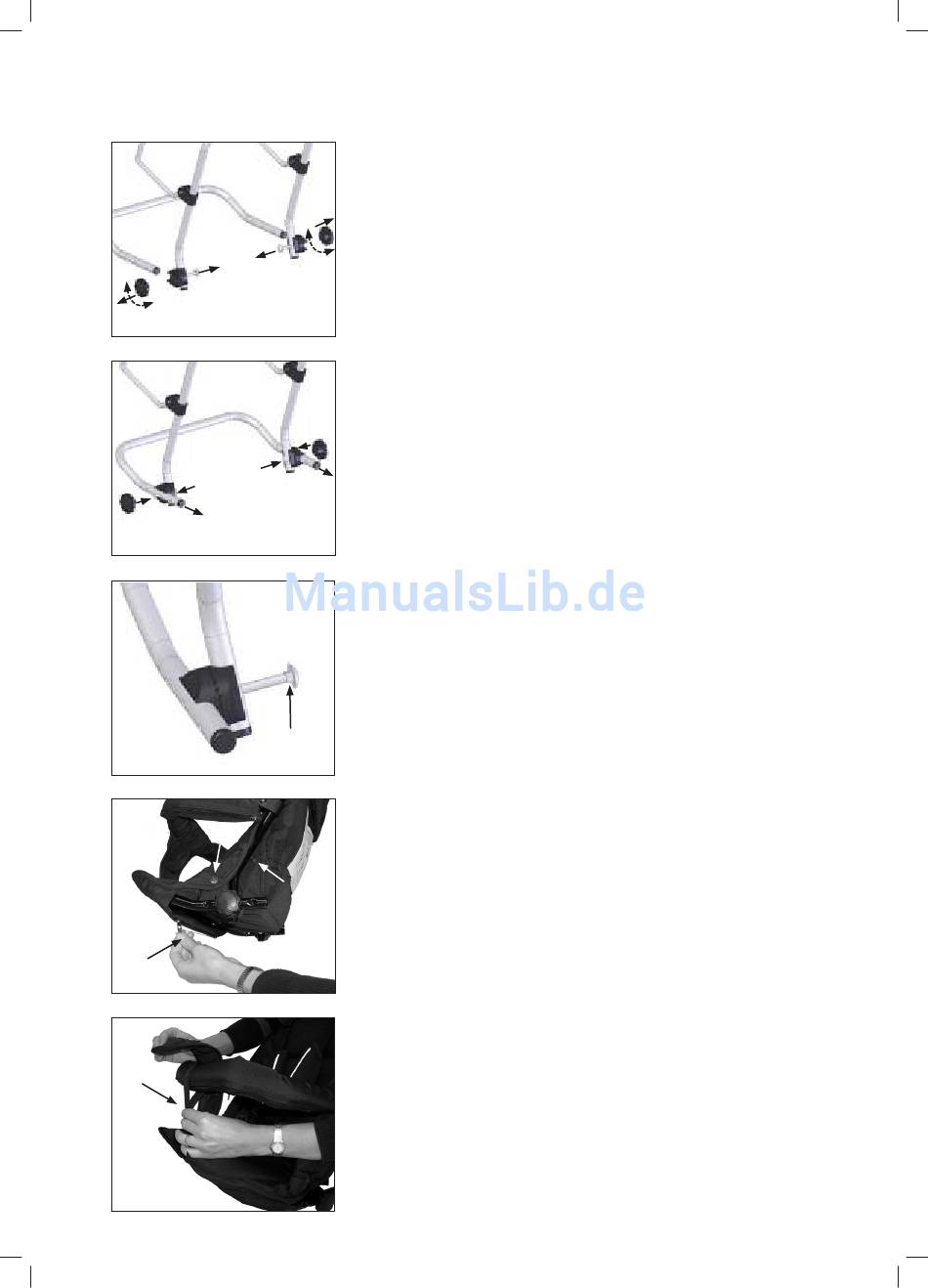

• Position the backrest
• Loosen the locking knobs (1) and pull out the bolts (2)
1
2
• Place the Toddler Seat unit frame (3) in the groove in the plastic
parts on both sides and push the bolts (4) through the middle hole
on the seat unit frame
• Screw the black knobs (5) back into place
5
3
IMPORTANT!
• When assembling make sure that the squared part of the bolt (6)
locates in the square hole of the tube to prevent the bolt from rotat-
ing
After assembly
IMPORTANT!
• Make sure that the bolt is placed through the middle hole on the
seat unit frame
6
• Make sure that the black knobs can be tightened (7). If they can-
not, make sure that the squared part of the bolt is located in the
square hole in the tube as shown in pictures 3.
SeAT FABRICS
The Toddler Seat is delivered with fabrics fully assembled. The fabrics
must not be removed when the Toddler Seat is in use.
• Make sure that the zips located under and at the rear of the seat
7b
are correctly fastened
• Make sure that the poppers are correctly fastened. The lower
popper (7a) should be fastened and the top popper (7b) should be
fastened around the tubing of the seat frame
• Make sure that the crutch strap is placed around the front bar (8)
• Button the crutch strap around the bumper bar
WARNING!
• Never use the Toddler Seat, if the crutch strap is not correctly at-
tached around the front bar.
(The toddler seat is delivered fully assembled)
