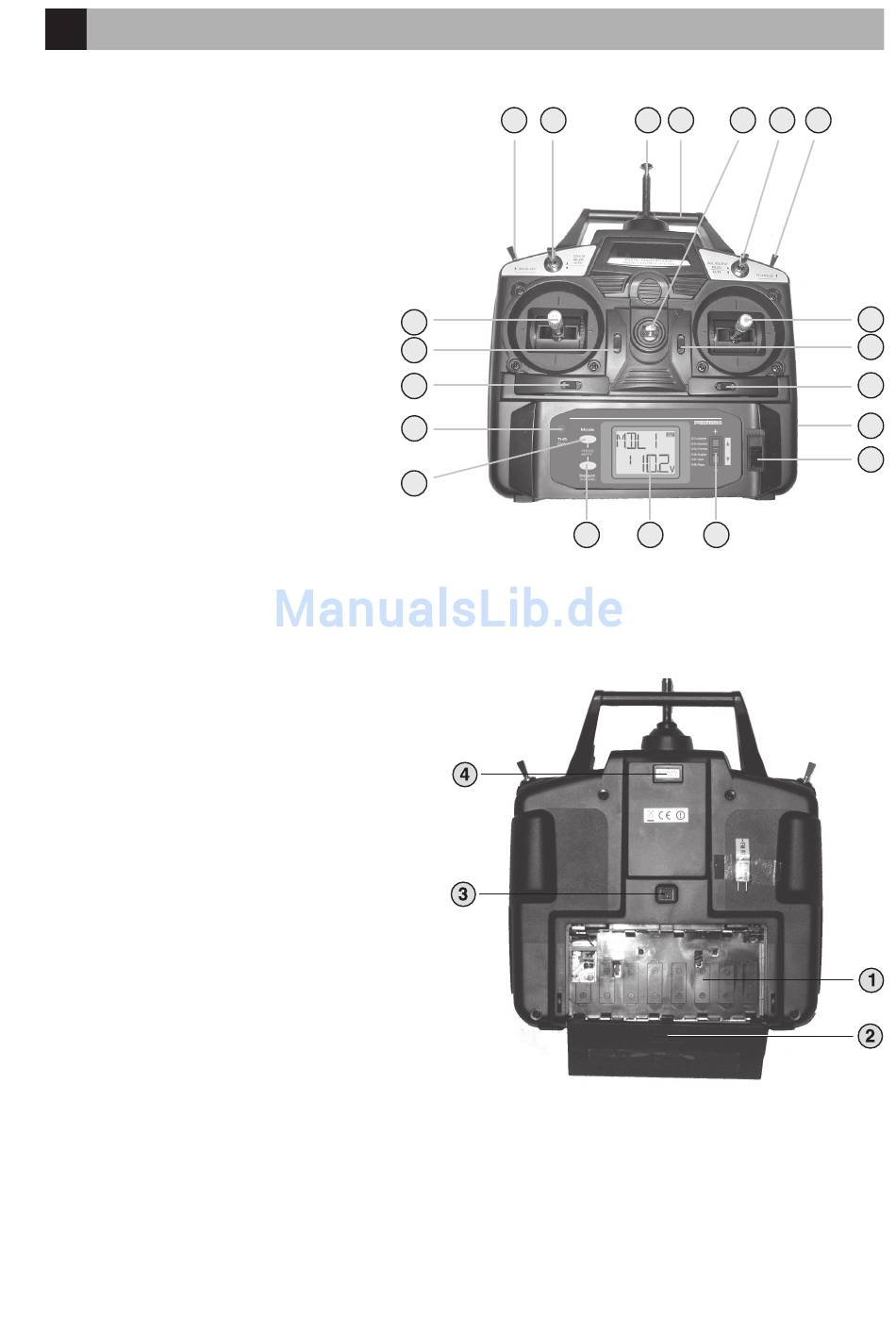

8. Control elements of the remote control

a) Front side of the remote control (delivery status in mode 2)
1 Remote control antenna
2 Handle
3 Loop for carrying strap
4 Dual rate switch for the sensitivity of the rudder movements
(pitching, rolling, yawing)
5 Switch for constant motor speed
6 Control stick for pitching and rolling
7 Trim slider for pitching
8 Trim slider for rolling
9 Jack for charger (on the side)
10 On/Off switch
11 +/- Rocker, changes the value shown on the display
12 Display
13 Select button for displaying the values for the current func-
tion
14 Mode button in order to cycle through the available func-
tions
15 Motor shut-off
16 Trim slider for yawing
17 Trim slider for the motor speed
18 Control stick for pitch/motor speed and yawing
19 Switch for flight mode (normal and/or aerobatic flight)
20 Switch for channel 5/gyro

b) Back side of the remote control

1 Battery compartment
2 Battery compartment cover
3 Jack (not operational with this remote control as not wired up)
4 Quartz
19 20
18
17
16
15
14
1 2 3
13 12 11
4 5
6
7
8
9
10
Figure 1
