E NG LI S H

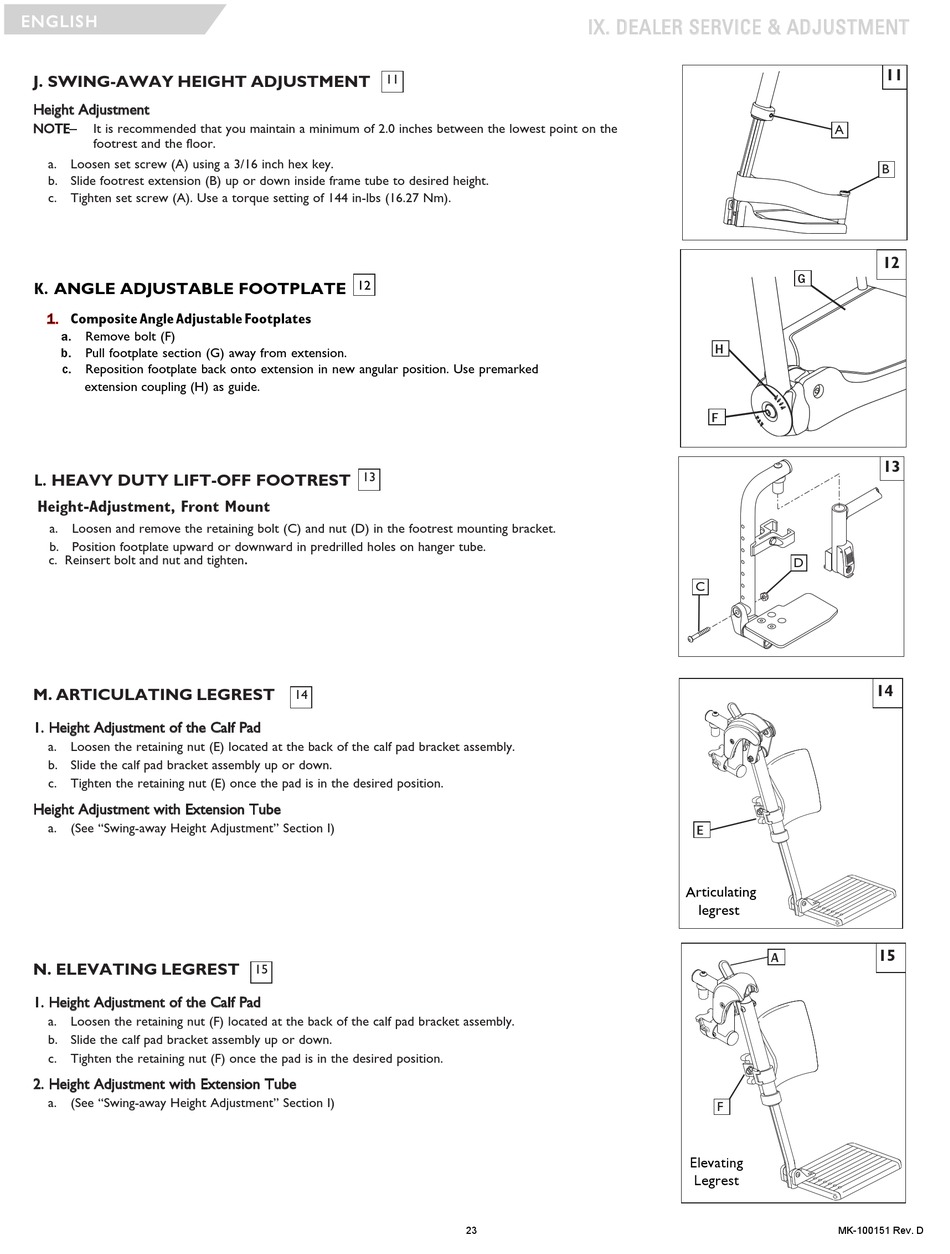

J. SWING-AWAY HEIGHT ADJUSTMENT
Height Adjustment
NOTE–
It is recommended that you maintain a minimum of 2.0 inches between the lowest point on the
footrest and the floor.
a. Loosen set screw (A) using a 3/16 inch hex key.
b. Slide footrest extension (B) up or down inside frame tube to desired height.
c. Tighten set screw (A). Use a torque setting of 144 in-lbs (16.27 Nm).
K. ANGLE ADJUSTABLE FOOTPLATE
1. Composite Angle Adjustable Footplates
a. Remove bolt (F)
b. Pull footplate section (G) away from extension.
c. Reposition footplate back onto extension in new angular position. Use premarked
extension coupling (H) as guide.
L. HEAVY DUTY LIFT-OFF FOOTREST
Height-Adjustment, Front Mount
a. Loosen and remove the retaining bolt (C) and nut (D) in the footrest mounting bracket.
b. Position footplate upward or downward in predrilled holes on hanger tube.
c. Reinsert bolt and nut and tighten
M. ARTICULATING LEGREST
1. Height Adjustment of the Calf Pad
a. Loosen the retaining nut (E) located at the back of the calf pad bracket assembly.
b. Slide the calf pad bracket assembly up or down.
c. Tighten the retaining nut (E) once the pad is in the desired position.
Height Adjustment with Extension Tube
a. (See "Swing-away Height Adjustment" Section I)
N. ELEVATING LEGREST
1. Height Adjustment of the Calf Pad
a. Loosen the retaining nut (F) located at the back of the calf pad bracket assembly.
b. Slide the calf pad bracket assembly up or down.
c. Tighten the retaining nut (F) once the pad is in the desired position.
2. Height Adjustment with Extension Tube
a. (See "Swing-away Height Adjustment" Section I)
11
12
13
.
14
15
IX. DEALER SERVICE & ADJUSTMENT
23
A
Elevating
Legrest
MK-100151 Rev. D
11
12
13
15
