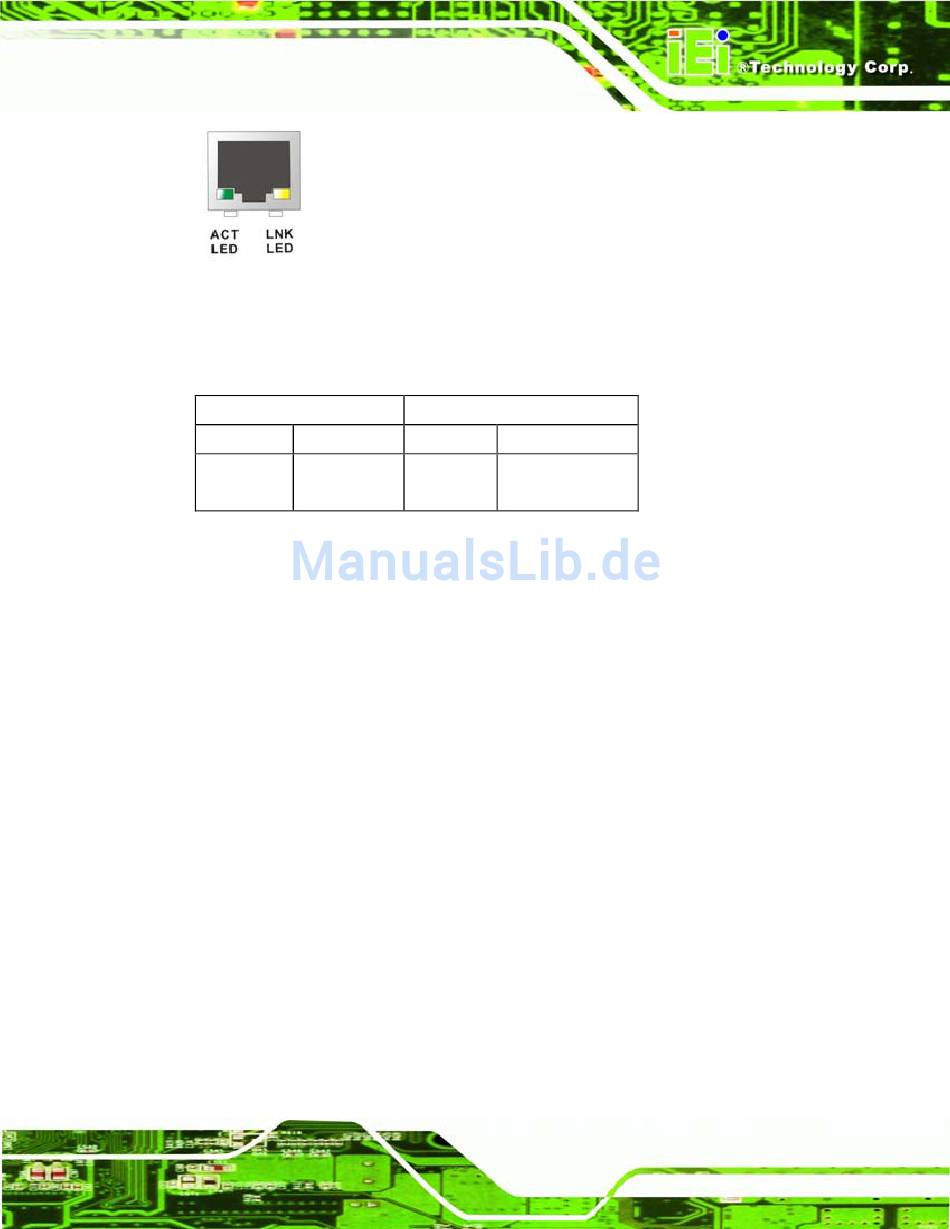

Figure 4-24: Ethernet Connector

The RJ-45 Ethernet connector has two status LEDs, one green and one yellow. The green
LED indicates activity on the port and the yellow LED indicates the port is linked.
SPEED LED
Status Description
GREEN ON: 100 MB
OFF: 10 MB

Table 4-22: Connector LEDs

4.3.3 Keyboard and Mouse Connector

CN Label: KB_MS1
CN Type: PS/2
See
CN Location:
See
CN Pinouts:
The IQ7-DB-MITX has two PS/2 connectors on the mounting bracket for easy connection
to a PS/2 keyboard and PS/2 mouse.
LINK LED
Status Description
YELLOW ON: Linked
Flashing: Activity
F igure 4-22
5
T able 4-23 and F igure 4-25
5 5
