Installing your appliance

3.3 Installing the hood flue

Disconnect the product from mains supply before
starting flue installation. Fit the sheet metal flue
parts around the body.

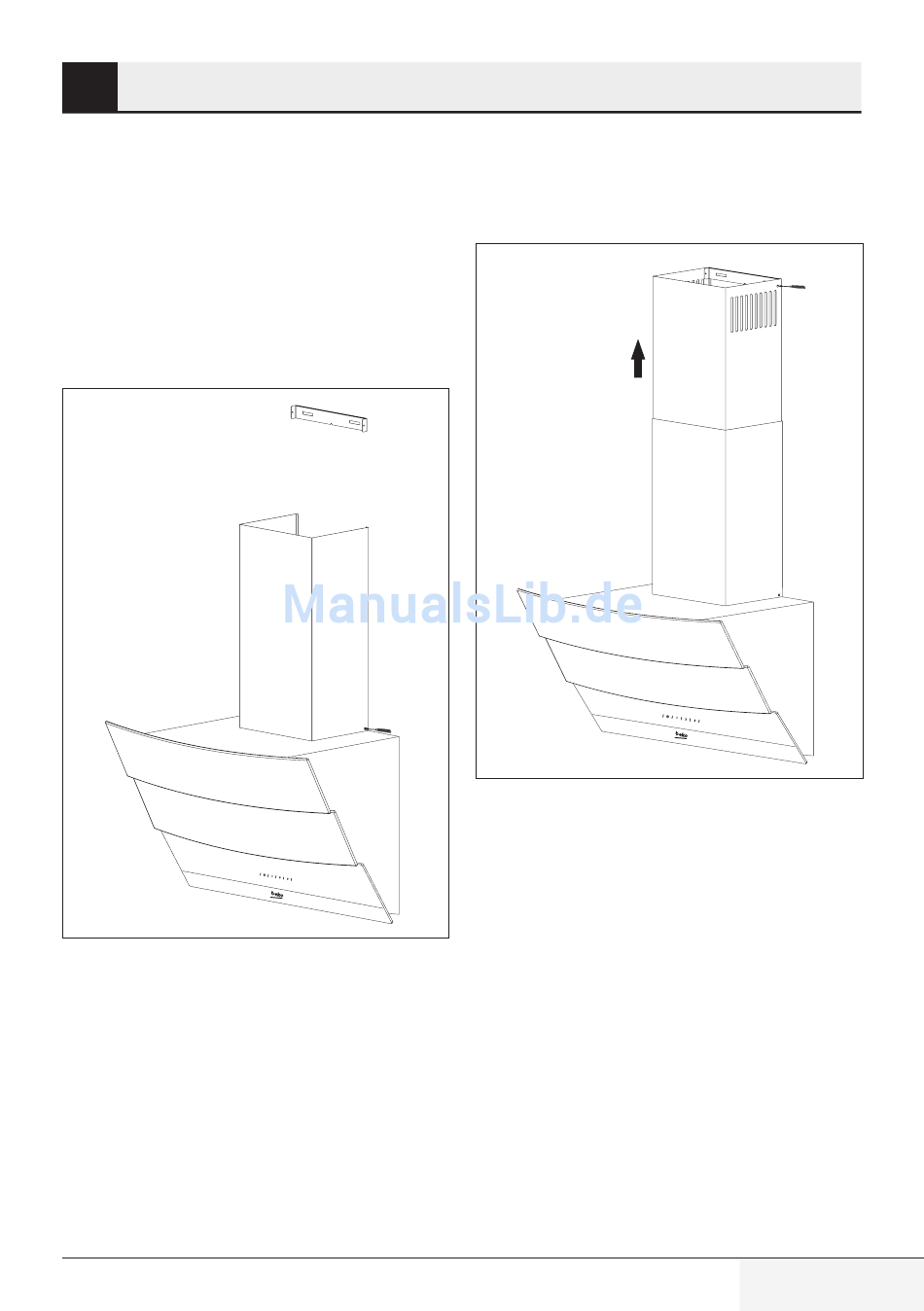

Screw the external flue to the external flue con-
nection plates located on the motor housing.
(Figure 3b / 7)
(Figure 7)
Hood / User Manual
Extend and screw the internal flue from its outer
edges onto the flue connection plate which was
secured to the wall (Figure 8).
E
F
(Figure 8)
E
F
