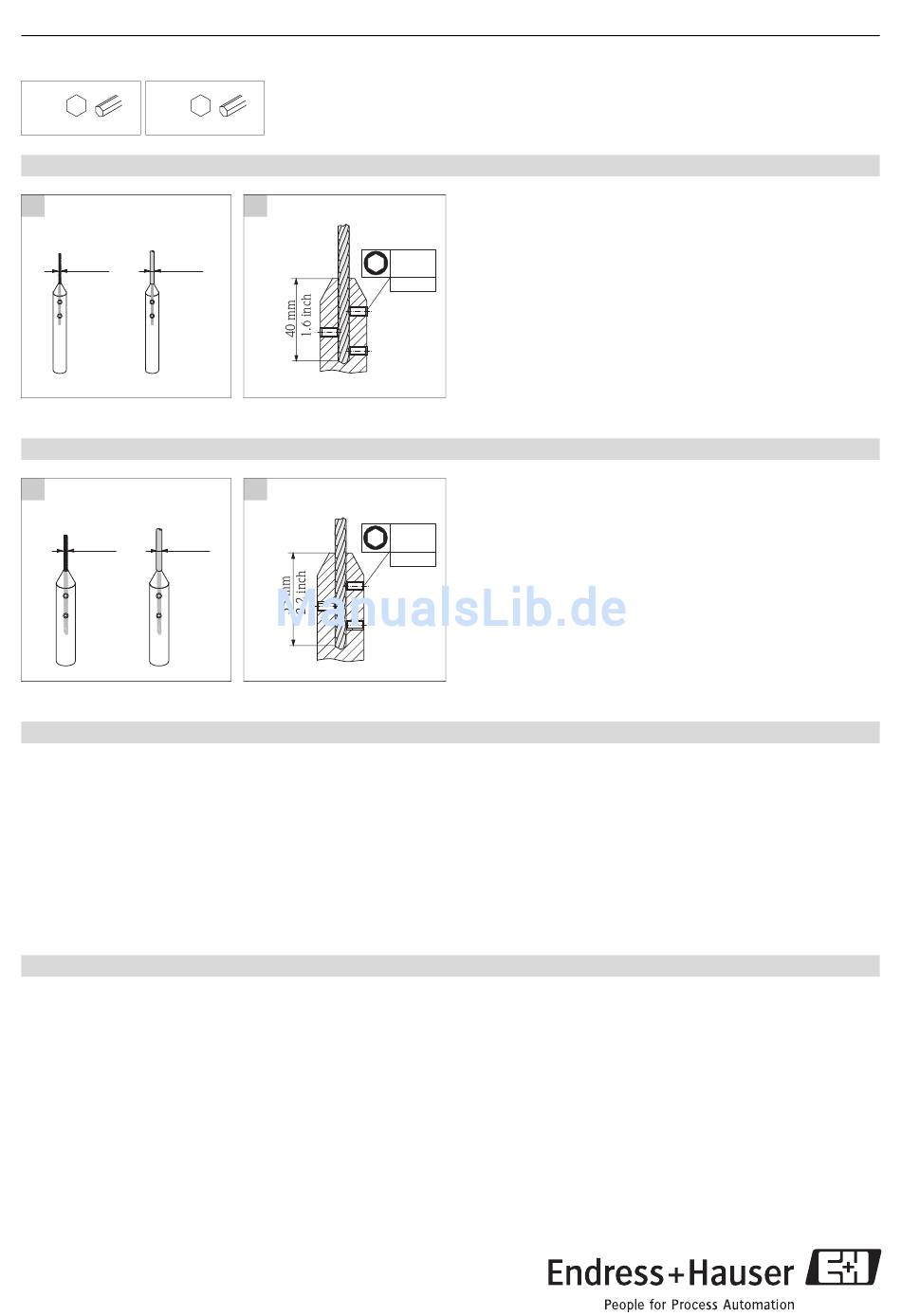

Levelflex FMP5x
Tool list
3 mm, 5 Nm
4 mm, 15 Nm
2 Weight for rope 4 mm / 1/6"
a
316
PA>Stahl/steel
6 mm
4 mm
1/4"
1/6"
3 Weight for rope 6 mm / 1/4"
a
316
PA>Stahl/steel
6 mm
8 mm
1/4"
1/3"
4 Exchange of probe weight
1. Loosen the 3 hexagon socket set screws, increased torque is essential.
2. Remove released rope from the weight.
3. In case of rope shortening:
• Measure off new rope length.
• Wrap adhesive tape around the rope at the point to be shortened to prevent it from fanning out.
• Saw off the rope at a right angle or cut it off with a bolt cutter.
• Unisolate the PA coated rope:
- rope 4 mm (1/6"): 40 mm (1.6 inch) deep
- rope 6 mm (1/4"): 55 mm (2.2 inch) deep
4. Insert the rope completely into the weight.
5. Screw the hexagon socket set screws into place and fasten them.
5 Re-calibration of the instrument
Install the instrument into the vessel.
If the probe length is identical with the original length of the probe, a probe calibration is not required.
If the probe length or probe type is different, perform a new level calibration according to the description in the Operating Manual.
Additionally it is necessary to order a new typeplate and fix it on the instrument!
b
Gewicht1
b
Gewicht3
3 mm
5 Nm
Gewicht2
4 mm
15 Nm
Gewicht4
Probe weight
