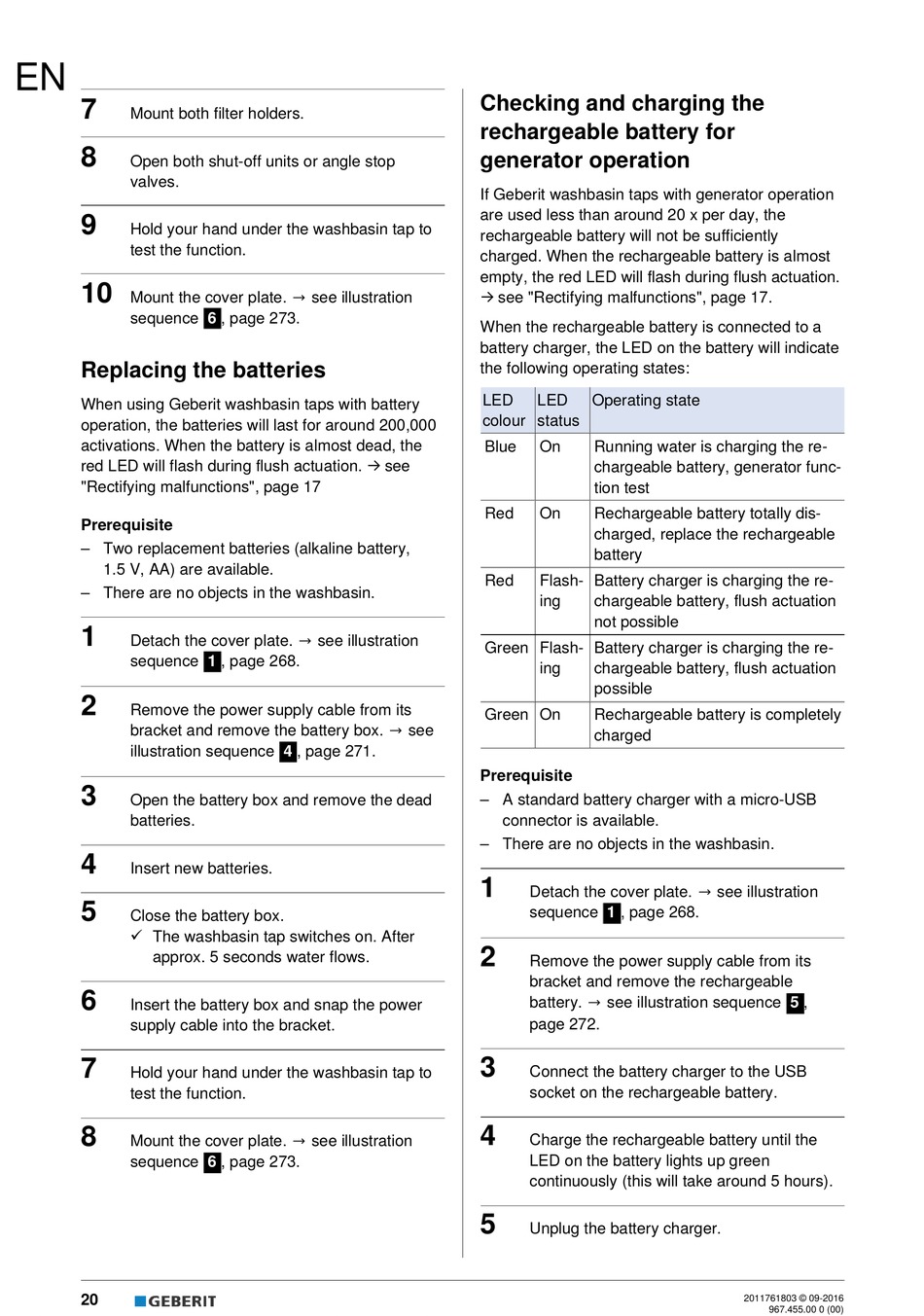

7
Mount both filter holders.
8
Open both shut-off units or angle stop
valves.
9
Hold your hand under the washbasin tap to
test the function.
10
Mount the cover plate. → see illustration
sequence

Replacing the batteries

When using Geberit washbasin taps with battery
operation, the batteries will last for around 200,000
activations. When the battery is almost dead, the
red LED will flash during flush actuation. → see
"Rectifying malfunctions", page 17
Prerequisite
– Two replacement batteries (alkaline battery,
1.5 V, AA) are available.
– There are no objects in the washbasin.
1
Detach the cover plate. → see illustration
sequence
2
Remove the power supply cable from its
bracket and remove the battery box. → see
illustration sequence
3
Open the battery box and remove the dead
batteries.
4
Insert new batteries.
5
Close the battery box.
ü The washbasin tap switches on. After
approx. 5 seconds water flows.
6
Insert the battery box and snap the power
supply cable into the bracket.
7
Hold your hand under the washbasin tap to
test the function.
8
Mount the cover plate. → see illustration
sequence
20
6 , page 273.
1 , page 268.
4 , page 271.
6 , page 273.
Checking and charging the
rechargeable battery for
generator operation
If Geberit washbasin taps with generator operation
are used less than around 20 x per day, the
rechargeable battery will not be sufficiently
charged. When the rechargeable battery is almost
empty, the red LED will flash during flush actuation.
→ see "Rectifying malfunctions", page 17.
When the rechargeable battery is connected to a
battery charger, the LED on the battery will indicate
the following operating states:
LED LED Operating state
colour status
Blue On Running water is charging the re-
chargeable battery, generator func-
tion test
Red On Rechargeable battery totally dis-
charged, replace the rechargeable
battery
Red Flash- Battery charger is charging the re-
ing chargeable battery, flush actuation
not possible
Green Flash- Battery charger is charging the re-
ing chargeable battery, flush actuation
possible
Green On Rechargeable battery is completely
charged
Prerequisite
– A standard battery charger with a micro-USB
connector is available.
– There are no objects in the washbasin.
1
Detach the cover plate. → see illustration
sequence 1 , page 268.
2
Remove the power supply cable from its
bracket and remove the rechargeable
battery. → see illustration sequence
page 272.
3
Connect the battery charger to the USB
socket on the rechargeable battery.
4
Charge the rechargeable battery until the
LED on the battery lights up green
continuously (this will take around 5 hours).
5
Unplug the battery charger.
5 ,
