Produktbeschreibung
Structure of deck-mounted tap
1
2
3
11

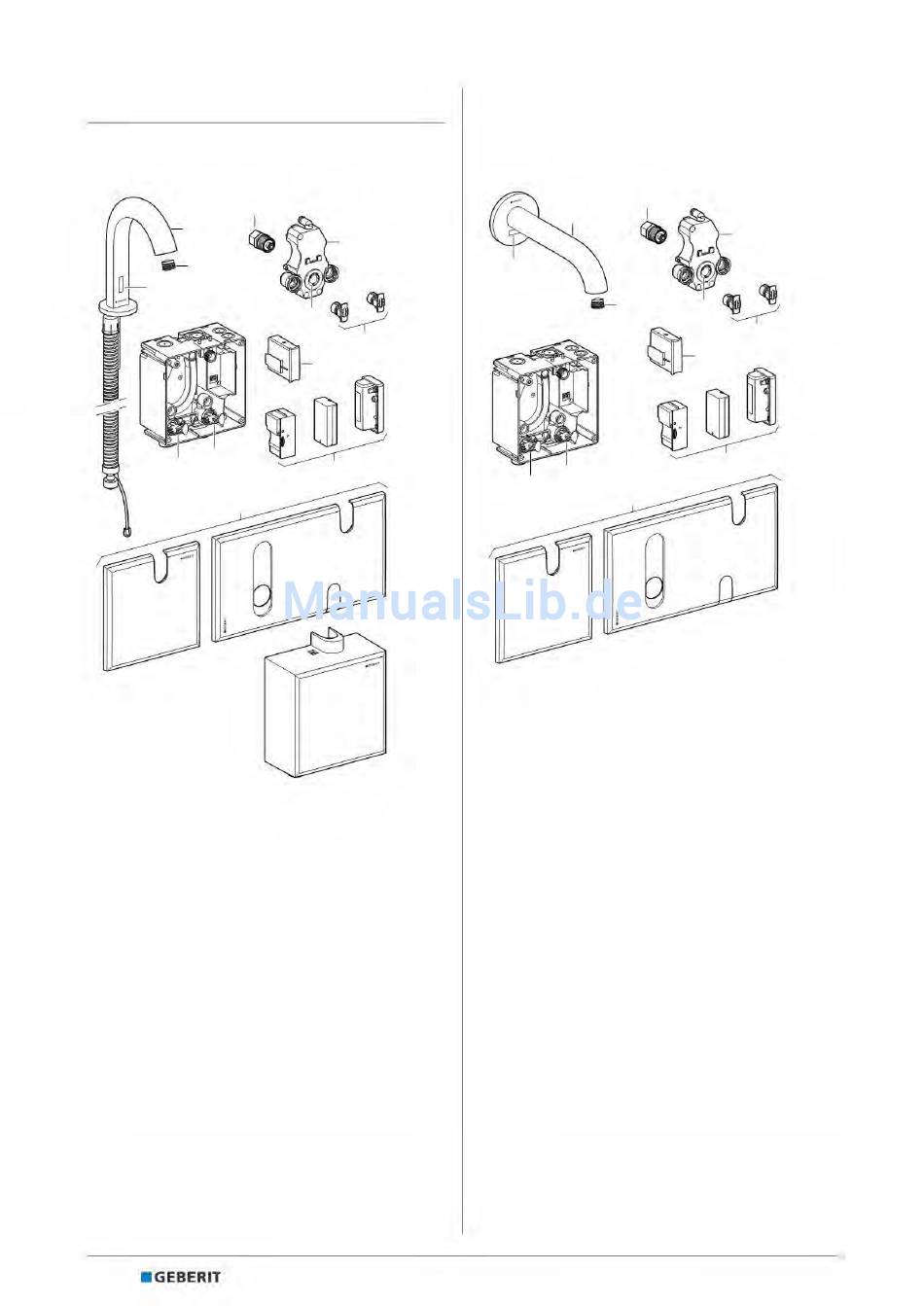

Figure 1: Geberit washbasin taps Piave and Brenta,
deck mounting
1 Tap housing with protecting hose
2 Tap aerator
3 IR sensor
4 Cover plate or cover
5 Power supply (power supply unit, battery box or
rechargeable battery for generator operation)
6 Functional unit
7 Control electronics
8 Mixer
9 Basket filter
10 Solenoid valve
11 Shut-off units
14
10
6
8
9
7
11
5
4
Structure of wall-mounted tap
10
1
3
2
11
11
4
Figure 2: Geberit washbasin taps Piave and Brenta,
wall mounting
1 Tap housing
2 Tap aerator
3 IR sensor
4 Cover plate
5 Power supply (power supply unit, battery box or
rechargeable battery for generator operation)
6 Functional unit
7 Control electronics
8 Mixer
9 Basket filter
10 Solenoid valve
11 Shut-off units
6
8
9
7
5
