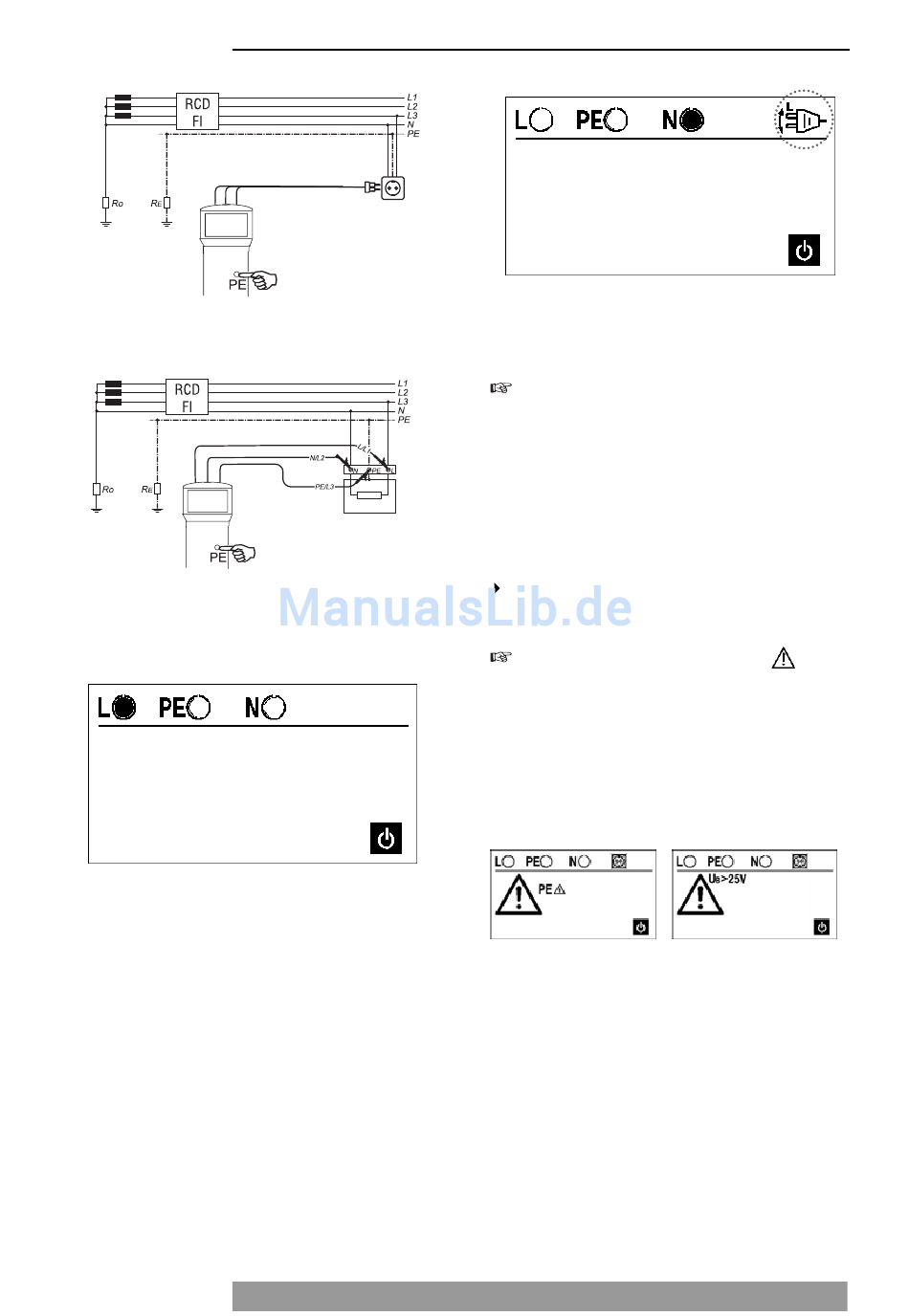

Figure 5.7.3: RCD test connection, test using a
shockproof plug
Figure 5.7.4: RCD test connection, test using a test
lead
Figure 5.7.5: Display for phase position L to L/L1
and N to N/L2
Testing the Trip Time and the Contact Voltage
Figure 5.7.6: Display for phase position N to L/L1
and L to N/L2
For socket testing touch the contact electrode
'PE' (21)..
Figure 5.7.7: PE error display
If the instrument shows the pin assignment as
indicated in Figure 5.7.6, i.e. the symbol 'turn
mains plug' (5) is blinking, the test cannot be
started. An acoustic signal is audible when
starting the test. The shockproof plug must be
turned or L and N of the connected test leads
must be exchanged.
If the test instrument indicates '"
'socket error' (4) and 'PE error' (16), or 'con-
tact voltage' (15) symbols, as shown in Figure
5.7.7, either the protective conductor (PE) is
open or a voltage is present! This is a fatal error
and must immediately be eliminated!
" (14),
