LA 9S-TU(R) - LA 12S-TU(R)

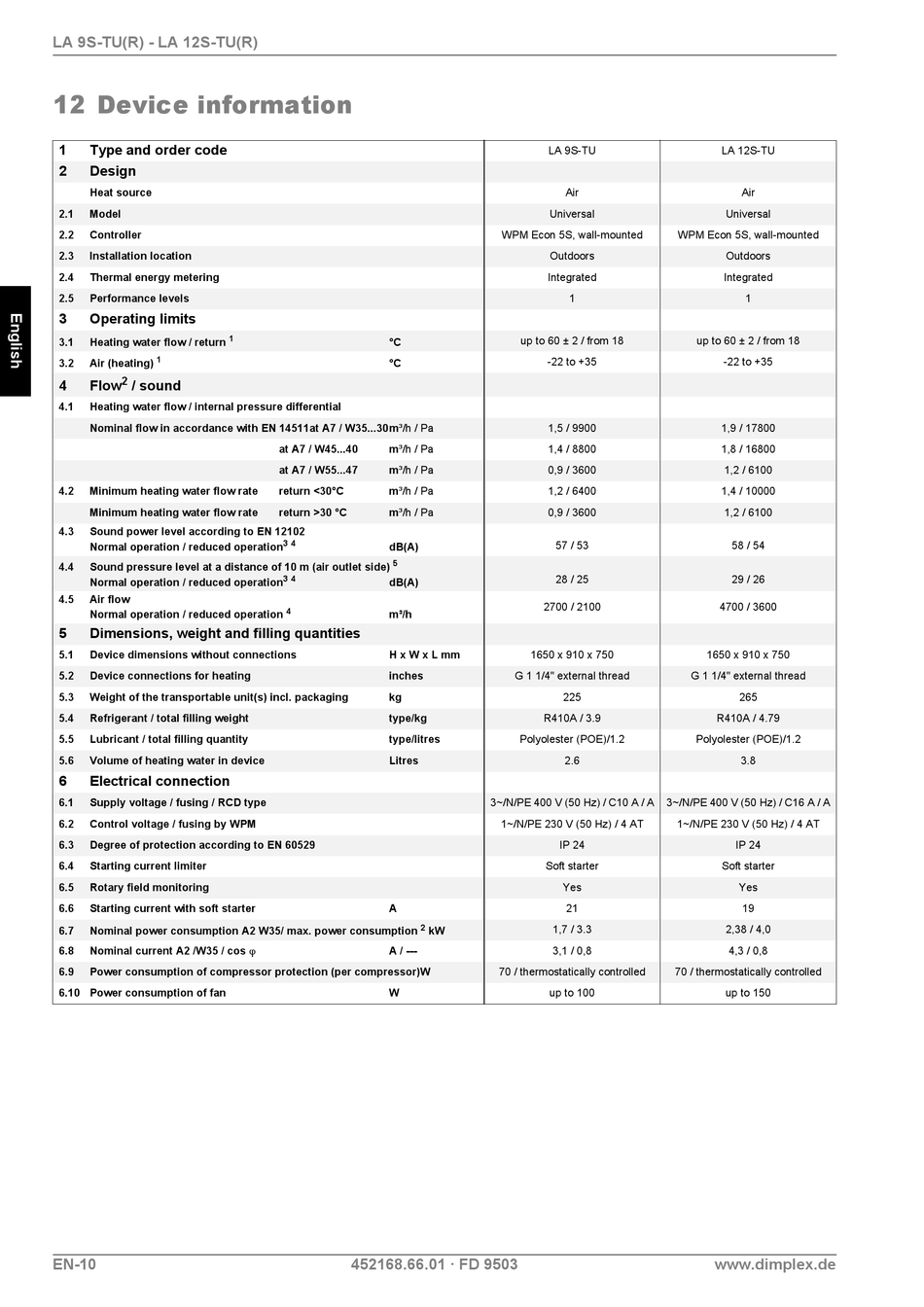

12 Device information

1 Type and order code
2 Design
Heat source
2.1 Model
2.2 Controller
2.3 Installation location
2.4 Thermal energy metering
2.5 Performance levels
3

Operating limits

3.1 Heating water flow / return
1
3.2 Air (heating)
2
4 Flow / sound
4.1 Heating water flow / internal pressure differential
Nominal flow in accordance with EN 14511at A7 / W35...30m³/h / Pa
4.2 Minimum heating water flow rate
Minimum heating water flow rate
4.3 Sound power level according to EN 12102
Normal operation / reduced operation
4.4 Sound pressure level at a distance of 10 m (air outlet side)
Normal operation / reduced operation
4.5 Air flow
Normal operation / reduced operation
5 Dimensions, weight and filling quantities
5.1 Device dimensions without connections
5.2 Device connections for heating
5.3 Weight of the transportable unit(s) incl. packaging
5.4 Refrigerant / total filling weight
5.5 Lubricant / total filling quantity
5.6 Volume of heating water in device
6 Electrical connection
6.1 Supply voltage / fusing / RCD type
6.2 Control voltage / fusing by WPM
6.3 Degree of protection according to EN 60529
6.4 Starting current limiter
6.5 Rotary field monitoring
6.6 Starting current with soft starter
6.7 Nominal power consumption A2 W35/ max. power consumption
Nominal current A2 /W35 / cos 
6.8
6.9 Power consumption of compressor protection (per compressor)W
6.10 Power consumption of fan
EN-10
1
°C
°C
at A7 / W45...40 m³/h / Pa
at A7 / W55...47 m³/h / Pa
return <30°C m³/h / Pa
return >30 °C m³/h / Pa
3 4
dB(A)
5
3 4
dB(A)
4
m³/h
H x W x L mm
inches
kg
type/kg
type/litres
Litres
A
A / ---
W
452168.66.01 · FD 9503
LA 9S-TU
Air
Universal
WPM Econ 5S, wall-mounted
Outdoors
Integrated
1
up to 60 ± 2 / from 18
-22 to +35
1,5 / 9900
1,4 / 8800
0,9 / 3600
1,2 / 6400
0,9 / 3600
57 / 53
28 / 25
2700 / 2100
1650 x 910 x 750
G 1 1/4" external thread
225
R410A / 3.9
Polyolester (POE)/1.2
2.6
3~/N/PE 400 V (50 Hz) / C10 A / A
1~/N/PE 230 V (50 Hz) / 4 AT
IP 24
Soft starter
Yes
21
2
1,7 / 3.3
kW
3,1 / 0,8
70 / thermostatically controlled
up to 100
LA 12S-TU
Air
Universal
WPM Econ 5S, wall-mounted
Outdoors
Integrated
1
up to 60 ± 2 / from 18
-22 to +35
1,9 / 17800
1,8 / 16800
1,2 / 6100
1,4 / 10000
1,2 / 6100
58 / 54
29 / 26
4700 / 3600
1650 x 910 x 750
G 1 1/4" external thread
265
R410A / 4.79
Polyolester (POE)/1.2
3.8
3~/N/PE 400 V (50 Hz) / C16 A / A
1~/N/PE 230 V (50 Hz) / 4 AT
IP 24
Soft starter
Yes
19
2,38 / 4,0
4,3 / 0,8
70 / thermostatically controlled
up to 150
