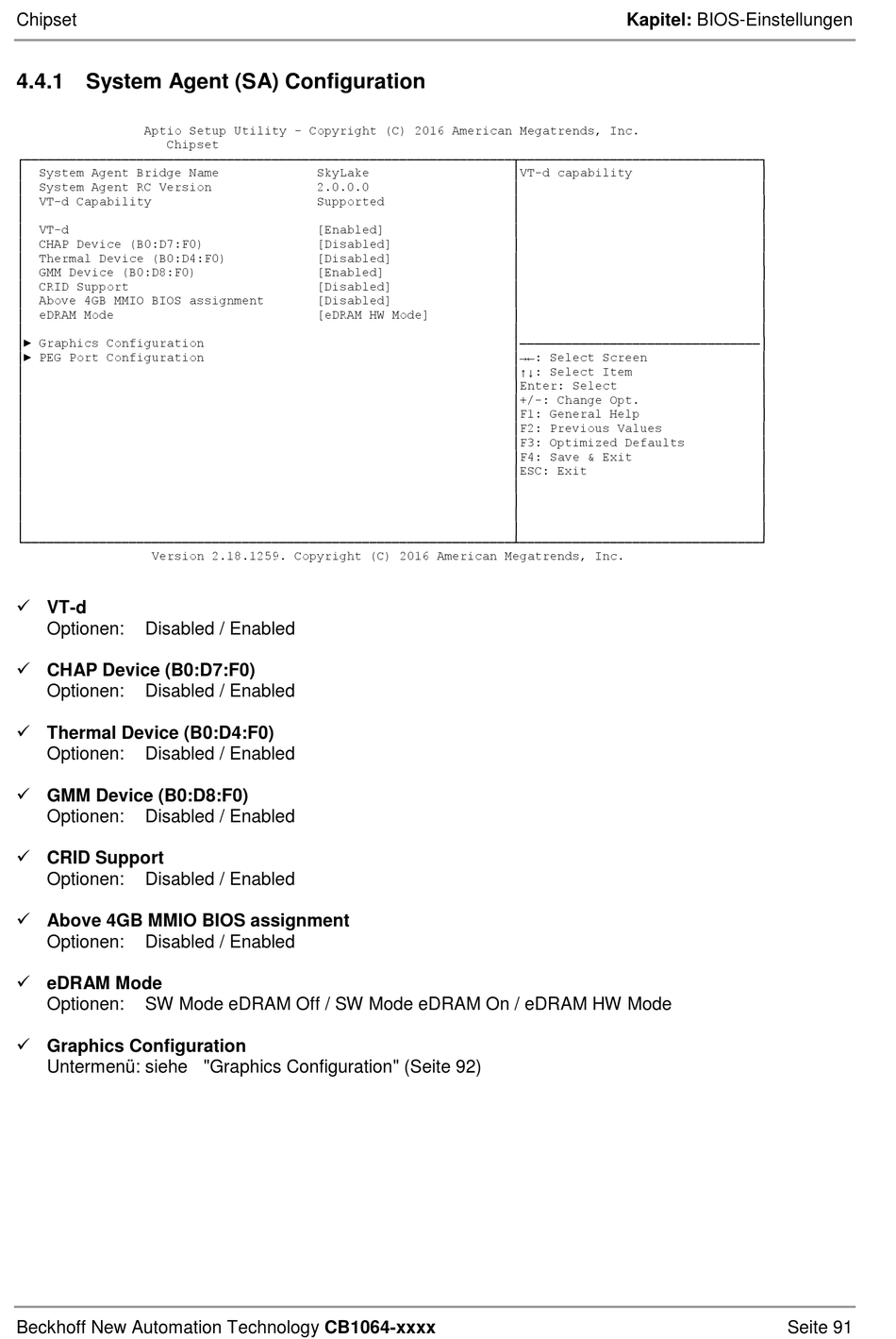

4.4.1 System Agent (SA) Configuration

Aptio Setup Utility - Copyright (C) 2016 American Megatrends, Inc.
Chipset
┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐
│ System Agent Bridge Name
│ System Agent RC Version
│ VT-d Capability
│
│ VT-d
│ CHAP Device (B0:D7:F0)
│ Thermal Device (B0:D4:F0)
│ GMM Device (B0:D8:F0)
│ CRID Support
│ Above 4GB MMIO BIOS assignment
│ eDRAM Mode
│
│► Graphics Configuration
│► PEG Port Configuration
│
│
│
│
│
│
│
│
│
│
│
│
└─────────────────────────────────────────────────────────────────┴────────────────────────────────┘
Version 2.18.1259. Copyright (C) 2016 American Megatrends, Inc.
 VT-d
Optionen: Disabled / Enabled
 CHAP Device (B0:D7:F0)
Optionen: Disabled / Enabled
 Thermal Device (B0:D4:F0)
Optionen: Disabled / Enabled
 GMM Device (B0:D8:F0)
Optionen: Disabled / Enabled
 CRID Support
Optionen: Disabled / Enabled
 Above 4GB MMIO BIOS assignment
Optionen: Disabled / Enabled
 eDRAM Mode
Optionen: SW Mode eDRAM Off / SW Mode eDRAM On / eDRAM HW Mode
 Graphics Configuration
Untermenü: siehe "Graphics Configuration" (Seite 92)
