Chipset

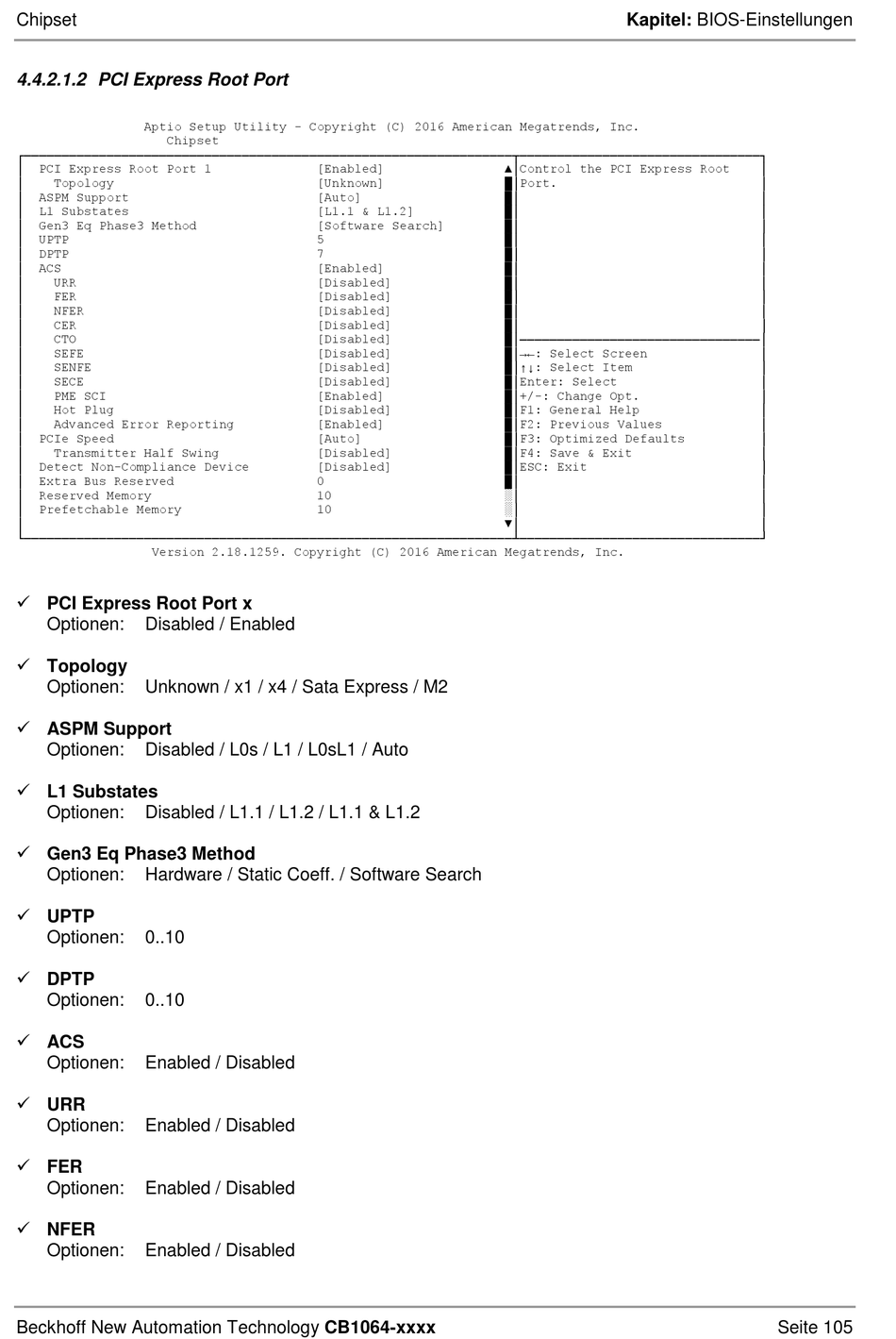

4.4.2.1.2 PCI Express Root Port
Aptio Setup Utility - Copyright (C) 2016 American Megatrends, Inc.
Chipset
┌─────────────────────────────────────────────────────────────────┬────────────────────────────────┐
│ PCI Express Root Port 1
│ Topology
│ ASPM Support
│ L1 Substates
│ Gen3 Eq Phase3 Method
│ UPTP
│ DPTP
│ ACS
│ URR
│ FER
│ NFER
│ CER
│ CTO
│ SEFE
│ SENFE
│ SECE
│ PME SCI
│ Hot Plug
│ Advanced Error Reporting
│ PCIe Speed
│ Transmitter Half Swing
│ Detect Non-Compliance Device
│ Extra Bus Reserved
│ Reserved Memory
│ Prefetchable Memory
│
└─────────────────────────────────────────────────────────────────┴────────────────────────────────┘
Version 2.18.1259. Copyright (C) 2016 American Megatrends, Inc.
 PCI Express Root Port x
Optionen: Disabled / Enabled
 Topology
Optionen: Unknown / x1 / x4 / Sata Express / M2
 ASPM Support
Optionen: Disabled / L0s / L1 / L0sL1 / Auto
 L1 Substates
Optionen: Disabled / L1.1 / L1.2 / L1.1 & L1.2
 Gen3 Eq Phase3 Method
Optionen: Hardware / Static Coeff. / Software Search
 UPTP
Optionen: 0..10
 DPTP
Optionen: 0..10
 ACS
Optionen: Enabled / Disabled
 URR
Optionen: Enabled / Disabled
 FER
Optionen: Enabled / Disabled
 NFER
Optionen: Enabled / Disabled
Beckhoff New Automation Technology CB1064-xxxx
[Enabled]
[Unknown]
[Auto]
[L1.1 & L1.2]
[Software Search]
5
7
[Enabled]
[Disabled]
[Disabled]
[Disabled]
[Disabled]
[Disabled]
[Disabled]
[Disabled]
[Disabled]
[Enabled]
[Disabled]
[Enabled]
[Auto]
[Disabled]
[Disabled]
0
10
10
Kapitel: BIOS-Einstellungen
▲│Control the PCI Express Root
█│Port.
█│
█│
█│
█│
█│
█│
█│
█│
█│
█│
█│────────────────────────────────│
█│→←: Select Screen
█│↑↓: Select Item
█│Enter: Select
█│+/-: Change Opt.
█│F1: General Help
█│F2: Previous Values
█│F3: Optimized Defaults
█│F4: Save & Exit
█│ESC: Exit
█│
░│
░│
▼│
│
│
│
│
│
│
│
│
│
│
│
│
│
│
│
│
│
│
│
│
│
│
│
│
│
