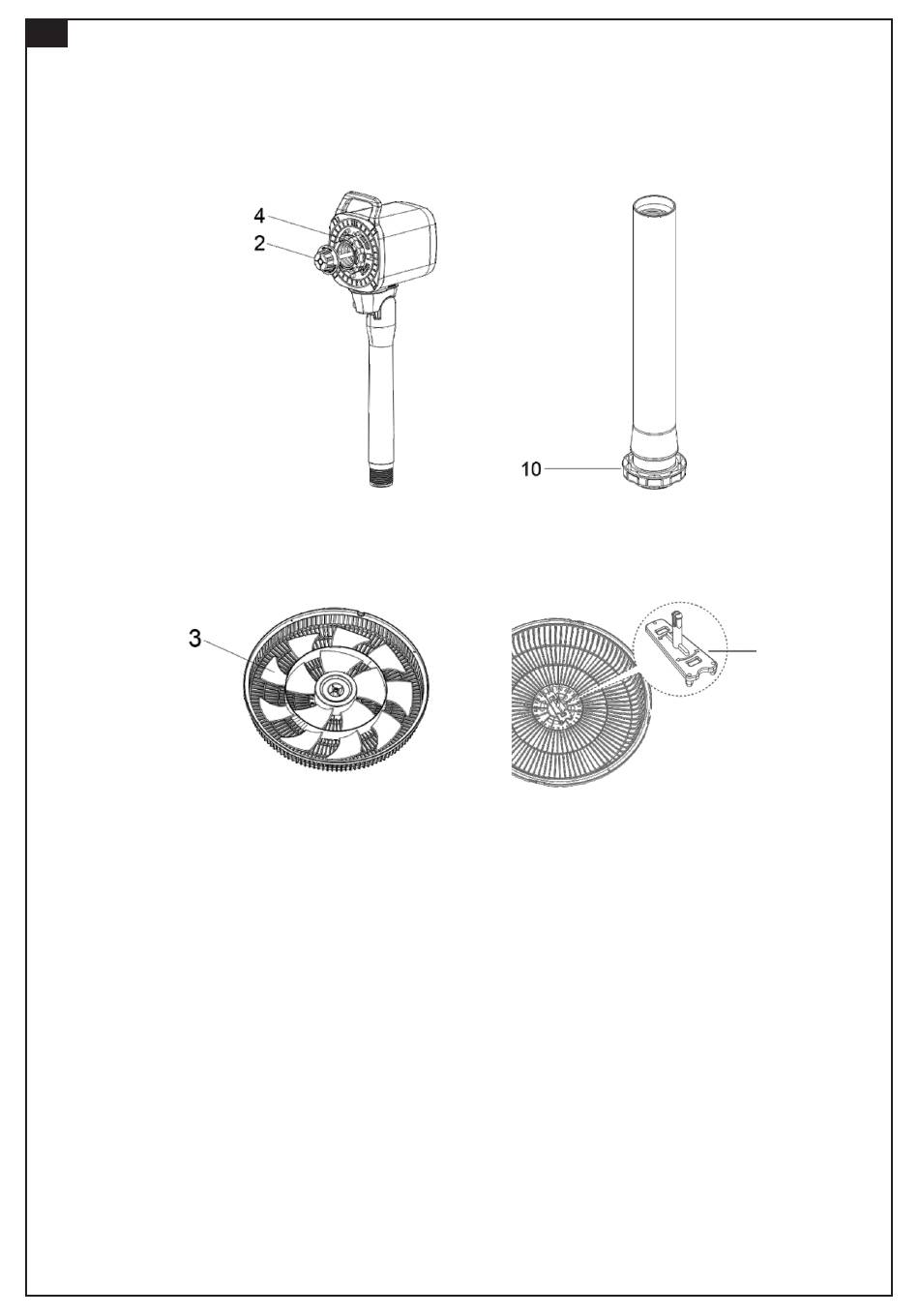

a) Unpack the fan and remove all parts from the package
b) Separate the blade fasten nut(2) and grill fasten nut(4) from the fan head. And
separate the nut(10) from the bottom tube(8).
c) Separate the blade(3) from the rear grill(5) and remove the blade fixing bracket.
The blade fixing bracket is not required during fan assembly.
d) Insert the bottom tube(8) into the base's hole(9), and tighten the nut(10).
e) Insert the top tube(7) into the bottom tube(8), and turn the top tube clockwise to
tighten both the top tube(7) and the bottom tube(8).
f) Insert the fan body(6) into the top tube(7), and turn the fan body(6) clockwise to
tighten both the fan body(6) and the top tube(7).
g) Use the grill fasten nut(4) for the rear grill(5) to attach the rear grill(5) to the fan
head, and then use the blade fasten nut(2) for the fan blade(3) to hold the fan
blade(3) in place.
h) Connect the front grill(1) and rear grill(5), and then fasten front grill(1) and rear
grill(5) by 4pcs screws.
