4. Insert the locking pin into the end of the suspension rod and raise the ball. Make sure
the locking pin is aligned with the grooves inside the ball and tighten the fixing screw.
Advice: To make it easier to insert the cables into the bar, place some electrical tape around
the cables. This will help you keep them together while you insert them into the bar.
5. Loosen the fixing screws and washer on the top of the motor housing. Remove the pins
from the bar (if you haven't already). Insert the rosette through the bar.
6. Pass the cables through the bar and pull the excess cable from the top of the bar to
tighten them.
7. Place the bar inside the motor housing and insert the pins you removed earlier. Tighten
the fixing screws and washers.
8. Lower the rosette towards the engine housing.

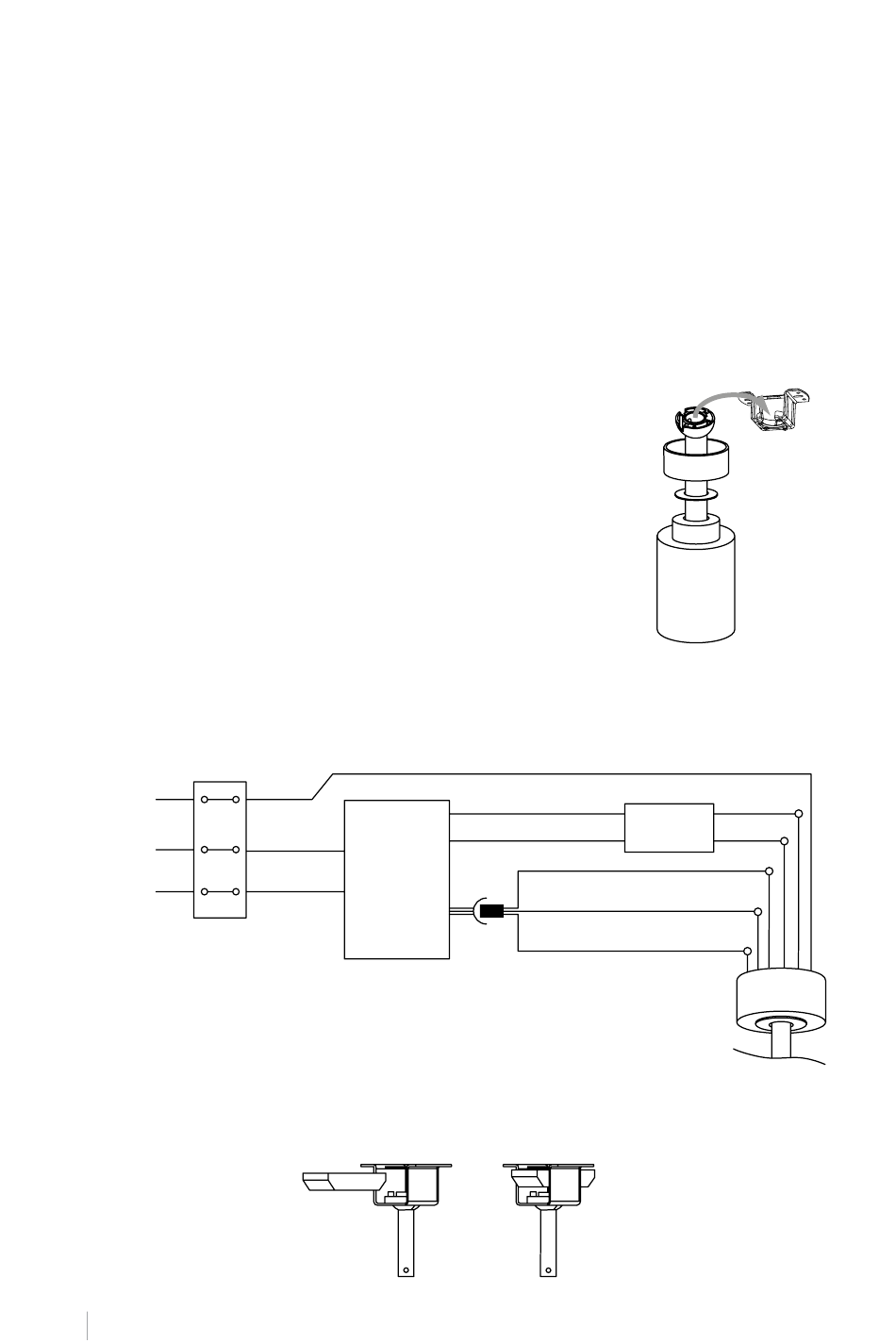

HA NG T H E FAN
• Once the rod is attached to the fan motor, insert the ball cou-
pling into the mounting bracket installed on the ceiling.
W IRING CON N ECT I ON
Make the connection between the receiver wires and the fan motor wires following the color
indications. Make sure the connection is secure.
Grounding
L
N
* Only on models WITH LIGHT.
Insert the remote control controller into the mounting bracket as shown in the picture.
E NGL I SH
12
Entrance L
(black)
Receiver
remote control
Entry N
(white)
Grounding (green / yellow)
Neutral N (blue)*
Controller
Light L (brown)*
of the light*
DC Motor L (gray)
DC Motor L (pink)
DC Motor L (red)
