2.2.9 Checks to electrical devices
Repair and maintenance to electrical components shall include initial safety checks and
component inspection procedures, If a fault exists that could compromise safety, then no
electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the
fault cannot be corrected immediately but it is necessary to continue operation, an
adequate temporary solution shall be used. This shall be reported to the owner of the
equipment so all parties are advised.
Initial safety checks shall include:
- those capacitors are discharged: this shall be done in a safe manner to avoid possibility
of sparking;
- that there no live electrical components and wiring are exposed while charging,
recovering or purging the system;
- that there is continuity of earth bonding
3.PRODUCT VIEW

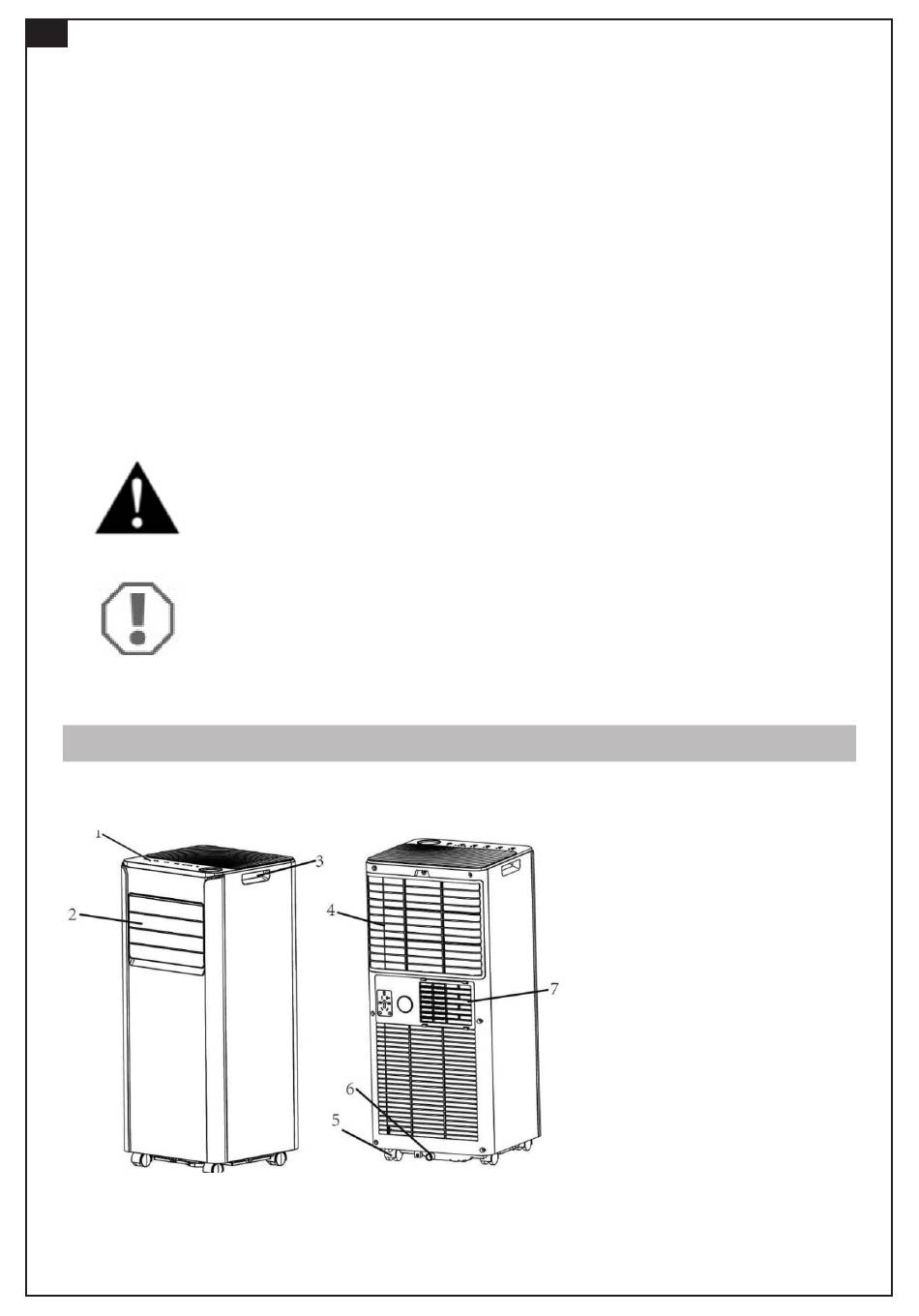

3.1 PRODUCT DIAGRAM

Note: The appearance is only for reference. Please see the real product for detailed
information.
WARNING!
Install the unit in rooms which exceed 6 m².
Do not install the unit in a place where inflammable gas may leak.
NOTE!
The manufacture may provide other suitable example or may provide
additional information about the refrigerant odour.
1. Control panel
2. Air outlet with adjustable
louver
3. Handle
4. Air inlet with air filter
5. Caster
6. Drainage Hole
7. Air Exhaust
