WAVE Controls
(EN) Step 2: Controls

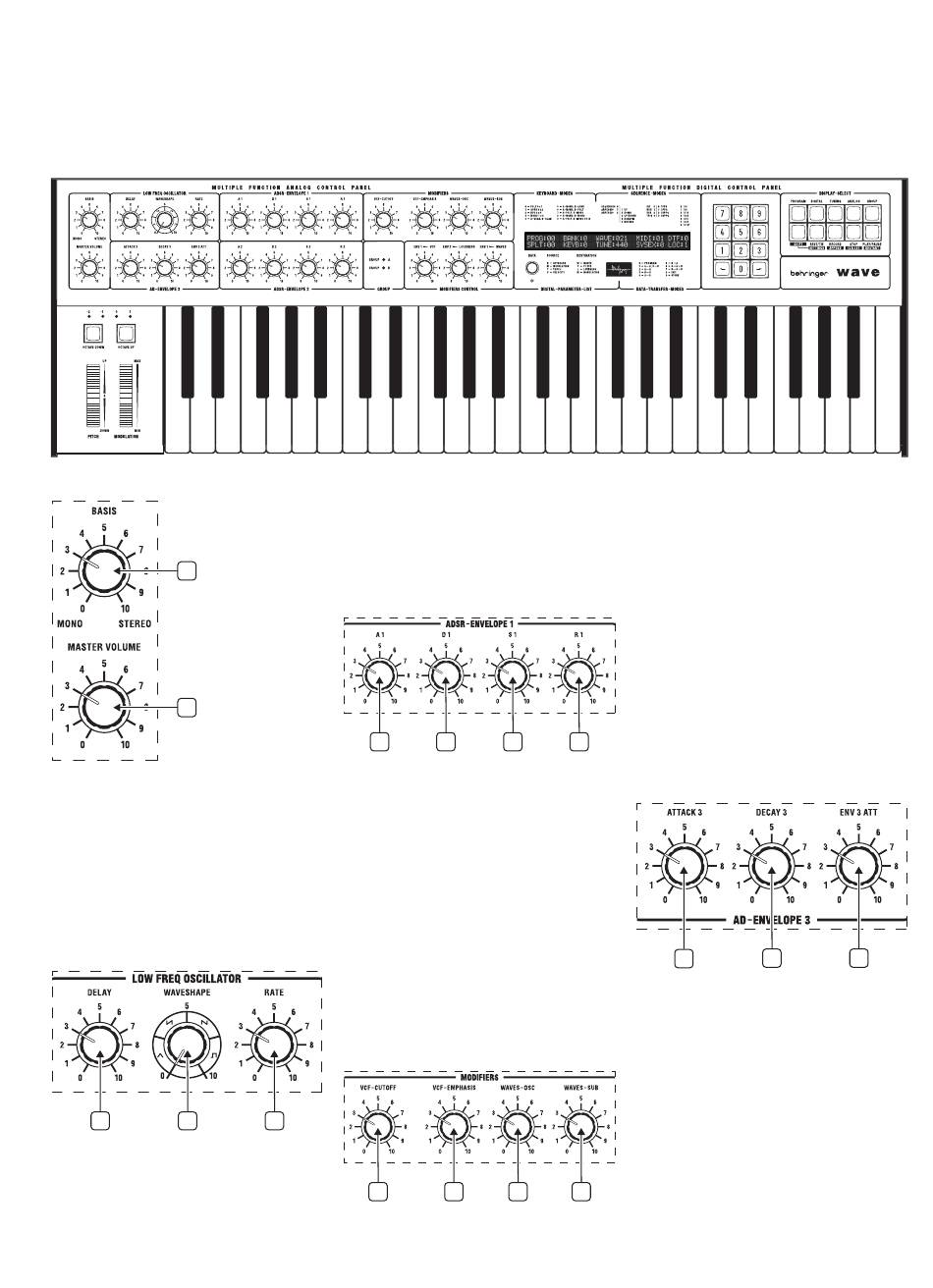

TOP PANEL

MASTER CONTROLS
1
2
1. BASIS – adjusts the stereo spread of the notes
played on the keyboard. When the control is at
minimum then all notes will be output at equal level
from both the channel 1 and channel 2 outputs.
When the control is at maximum notes will alternate
between the outputs.
2. MASTER VOLUME – sets the WAVE's output level.
LOW FREQUENCY OSCILLATOR
3 4
3. LFO DELAY – delays the action of the LFO. When
the control is at minimum there will be a slight delay
before modulation can be heard (depending on the
firmware setting). When at maximum there will be
a delay of 10 seconds before modulation is applied.
4. WAVESHAPE – the LFO has four waveshapes
available: triangle, ramp, sawtooth and square.
5. RATE – controls the rate at which the LFO runs,
from 0.2 Hz to 12.0 Hz.
ENVELOPE GENERATOR 1
6 7
6. EG 1 ATTACK – controls the attack time for the
filter envelope. If the Envelope attack rate is set
above 47 then the attack will fully complete even
if the key is released; and will then move to the
release phase. This can be used for filter and
wavetable sweeps.
7. EG 1 DECAY – controls the decay time for the
filter envelope.
8. EG 1 SUSTAIN – controls the sustain level for the
filter envelope following Decay.
9. EG 1 RELEASE – controls the release time for the
filter envelope.
MODIFIERS
5
10
10. VCF CUTOFF – controls the cutoff frequency of
the low pass filter.
8 9
11 12 13
11. VCF EMPHASIS – controls the resonance of
the filter.
12. WAVES OSC – steps through the waveforms of
the selected wavetable for the main oscillator,
from 00 to 63.
13. WAVES SUB – steps through the waveforms of
the selected wavetable for the sub oscillator,
from 00 to 63.
If a transient is selected then controls
will set the sample playback start points for the
main and sub oscillators. A full explanation of
Wavetables and Transients can be found in the
User Manual.
ENVELOPE GENERATOR 3
15
14
14. EG 3 ATTACK – controls the attack time for the
third envelope.
15. EG 3 DECAY – controls the decay time for the
third envelope.
16. EG 3 ATTENUATION – attenuates (reduces) the
maximum output of the third envelope generator.
This has a different effect according to what the third
envelope is being used for: if it is being used on
the pitch of the oscillator then in position five there
is no modulation, with lower settings resulting in
negative action and higher in positive. When used
for modulating the wavetables then the settings run
from no modulation at 0 to full (63 wavetable steps)
at 10. This modulation is added to the
WAVES SUB value.
and
(12) (13)
