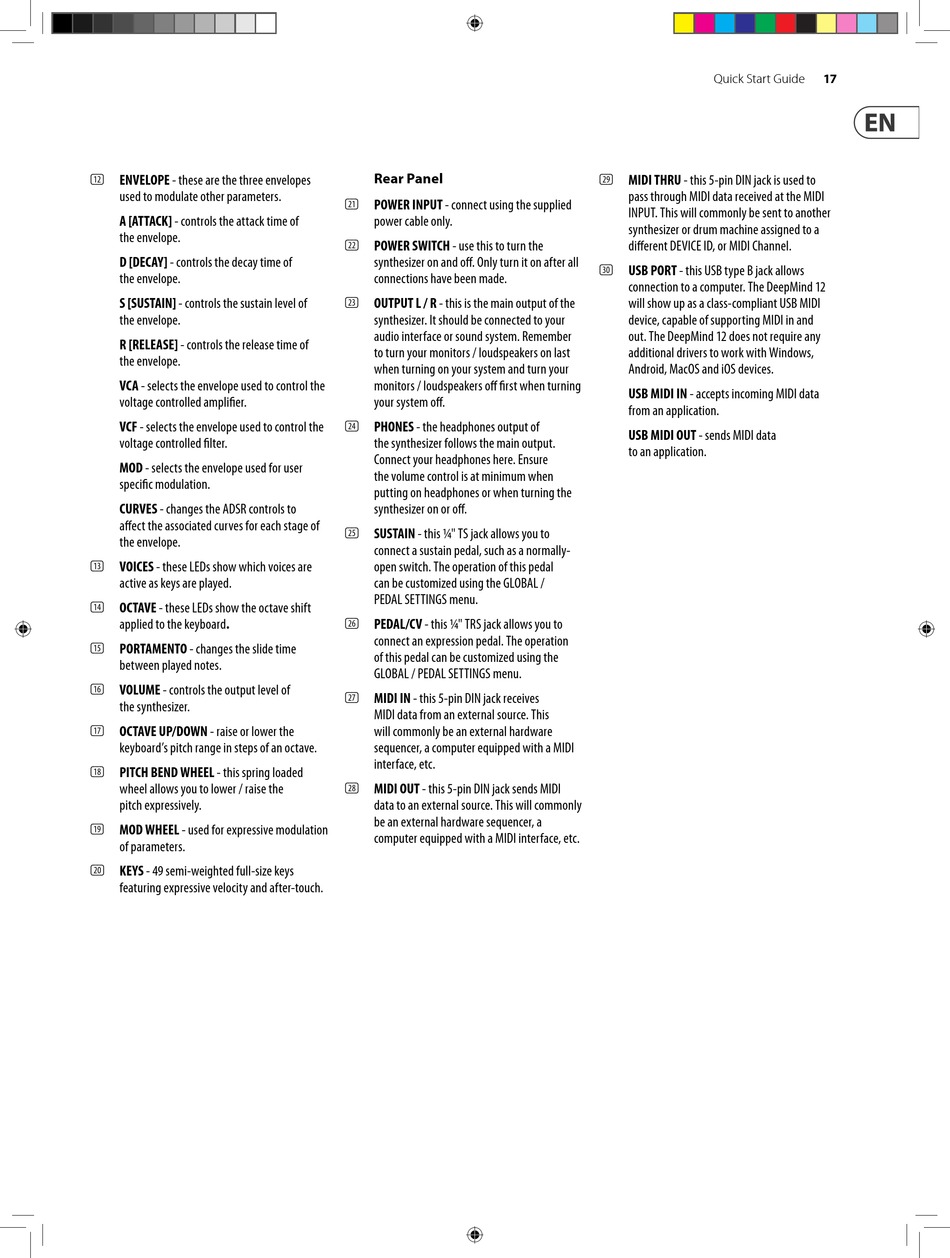

ENVELOPE - these are the three envelopes
(12)
used to modulate other parameters.
A [ATTACK] - controls the attack time of
the envelope.
D [DECAY] - controls the decay time of
the envelope.
S [SUSTAIN] - controls the sustain level of
the envelope.
R [RELEASE] - controls the release time of
the envelope.
VCA - selects the envelope used to control the
voltage controlled amplifier.
VCF - selects the envelope used to control the
voltage controlled filter.
MOD - selects the envelope used for user
specific modulation.
CURVES - changes the ADSR controls to
affect the associated curves for each stage of
the envelope.
VOICES - these LEDs show which voices are
(13)
active as keys are played.
OCTAVE - these LEDs show the octave shift
(14)
applied to the keyboard.
PORTAMENTO - changes the slide time
(15)
between played notes.
VOLUME - controls the output level of
(16)
the synthesizer.
OCTAVE UP/DOWN - raise or lower the
(17)
keyboard's pitch range in steps of an octave.
PITCH BEND WHEEL - this spring loaded
(18)
wheel allows you to lower / raise the
pitch expressively.
MOD WHEEL - used for expressive modulation
(19)
of parameters.
KEYS - 49 semi-weighted full-size keys
(20)
featuring expressive velocity and after-touch.

Rear Panel

POWER INPUT - connect using the supplied
(21)
power cable only.
POWER SWITCH - use this to turn the
(22)
synthesizer on and off. Only turn it on after all
connections have been made.
OUTPUT L / R - this is the main output of the
(23)
synthesizer. It should be connected to your
audio interface or sound system. Remember
to turn your monitors / loudspeakers on last
when turning on your system and turn your
monitors / loudspeakers off first when turning
your system off.
PHONES - the headphones output of
(24)
the synthesizer follows the main output.
Connect your headphones here. Ensure
the volume control is at minimum when
putting on headphones or when turning the
synthesizer on or off.
SUSTAIN - this ¼" TS jack allows you to
(25)
connect a sustain pedal, such as a normally-
open switch. The operation of this pedal
can be customized using the GLOBAL /
PEDAL SETTINGS menu.
PEDAL/CV - this ¼" TRS jack allows you to
(26)
connect an expression pedal. The operation
of this pedal can be customized using the
GLOBAL / PEDAL SETTINGS menu.
MIDI IN - this 5-pin DIN jack receives
(27)
MIDI data from an external source. This
will commonly be an external hardware
sequencer, a computer equipped with a MIDI
interface, etc.
MIDI OUT - this 5-pin DIN jack sends MIDI
(28)
data to an external source. This will commonly
be an external hardware sequencer, a
computer equipped with a MIDI interface, etc.
Quick Start Guide
MIDI THRU - this 5-pin DIN jack is used to
(29)
pass through MIDI data received at the MIDI
INPUT. This will commonly be sent to another
synthesizer or drum machine assigned to a
different DEVICE ID, or MIDI Channel.
USB PORT - this USB type B jack allows
(30)
connection to a computer. The DeepMind 12
will show up as a class-compliant USB MIDI
device, capable of supporting MIDI in and
out. The DeepMind 12 does not require any
additional drivers to work with Windows,
Android, MacOS and iOS devices.
USB MIDI IN - accepts incoming MIDI data
from an application.
USB MIDI OUT - sends MIDI data
to an application.
