CONTROL PANEL

DISPLAY INDICATIONS

OFF
ON AC
ON AR
PH
P1-P2-P3
10....30°C
Pu
SF
CP-TS-PA
AF
H1......H9
Bat1
Fron
Cana
FrCa
When the stove is in standby, the display will show the word
OFF together with the power set if the stove is in MANUAL,
or the word OFF along with the set temperature if the stove is
in AUTOMATIC.
SCREW FILLING.
The pellet transport duct (screw) has to be fi lled when the boiler
is new (on fi rst ignition) or if the stove has completely user all the
pellets.
To activate reloading, simultaneously press the keys
the display will show the wording "RI".
The reloading function stops automatically after 240" or when the
key is pressed.
Downloaded from www.Manualslib.com
INSTRUCTIONS FOR USE
Shut-off phase in progress, duration approx.
10 minutes
Stove in the fi rst ignition phase: pellet load
ing and waiting for the fl ame to light
Stove in the second ignition phase, start
normal combustion
Stove in air-exchanger heating phase
Power level set
Desired temperature level in the room
where the stove is installed
Automatic cleaning of chamber in progress
Stop Flame: stops functioning due to
probable lack of pellets
Control menu available only to Technical
Assistance Centres
Ignition Failed: stops functioning for failed
ignition
System in alarm, the number indicates the
cause of the alarm
Clock battery dead (type CR2032)
Enable front ventilation
Enable ducted ventilation
Ventilations enabled
manuals search engine
This indicates the functioning of the fan
This indicates the functioning of the pellet loading
motor
This indicates that the stove is functioning within the
parameters of the menu (technical assistance centre
only)
This indicates that the timer is active, and that an
automatic time programme has been chosen

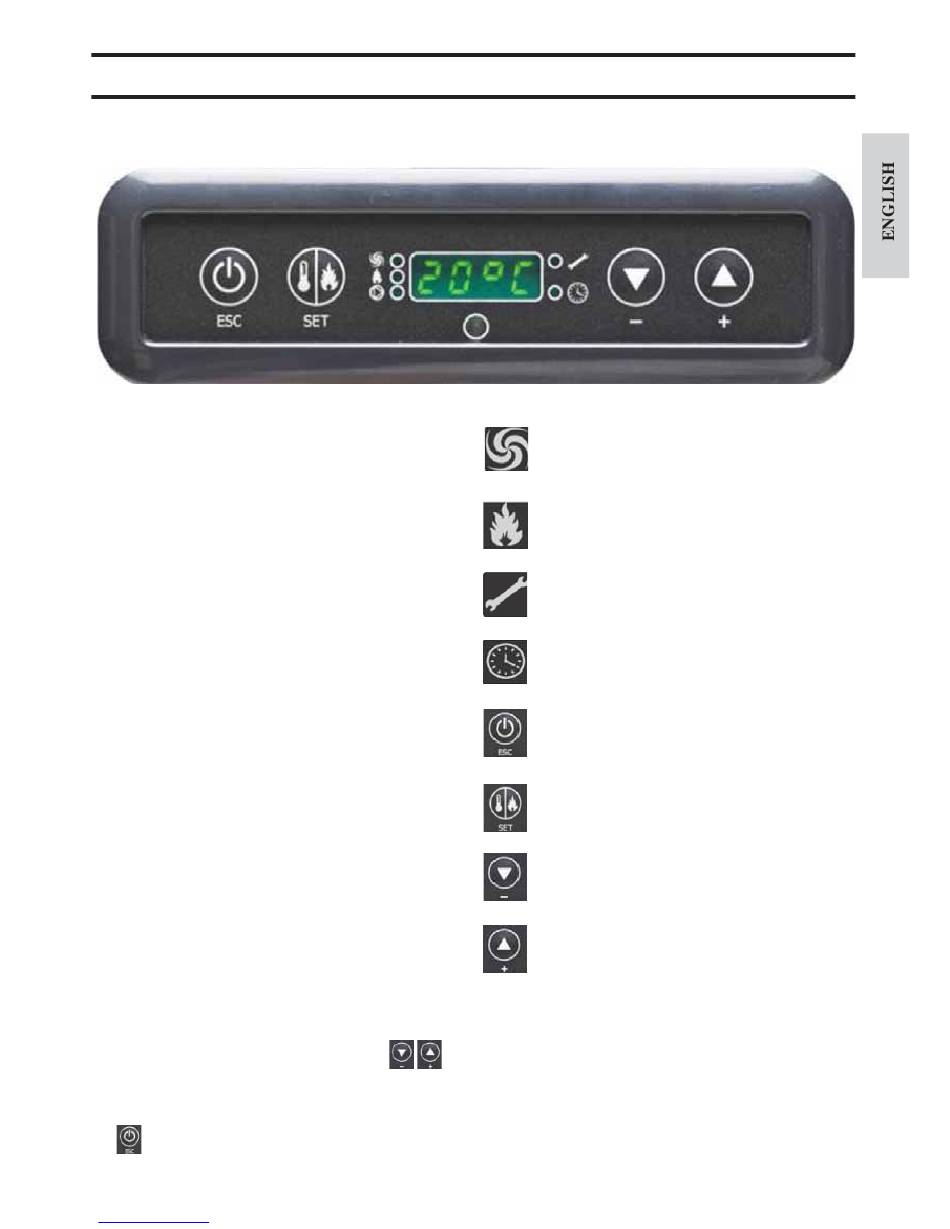

ON/OFF key
this also serves to confi rm/exit
Selection key:
Automatic/Manual/Settings menu
Key to DECREASE power/temperature and
to scroll back from the current selection
Key to INCREASE power/temperature and
to scroll forward from the current selection
,
- 33
-
