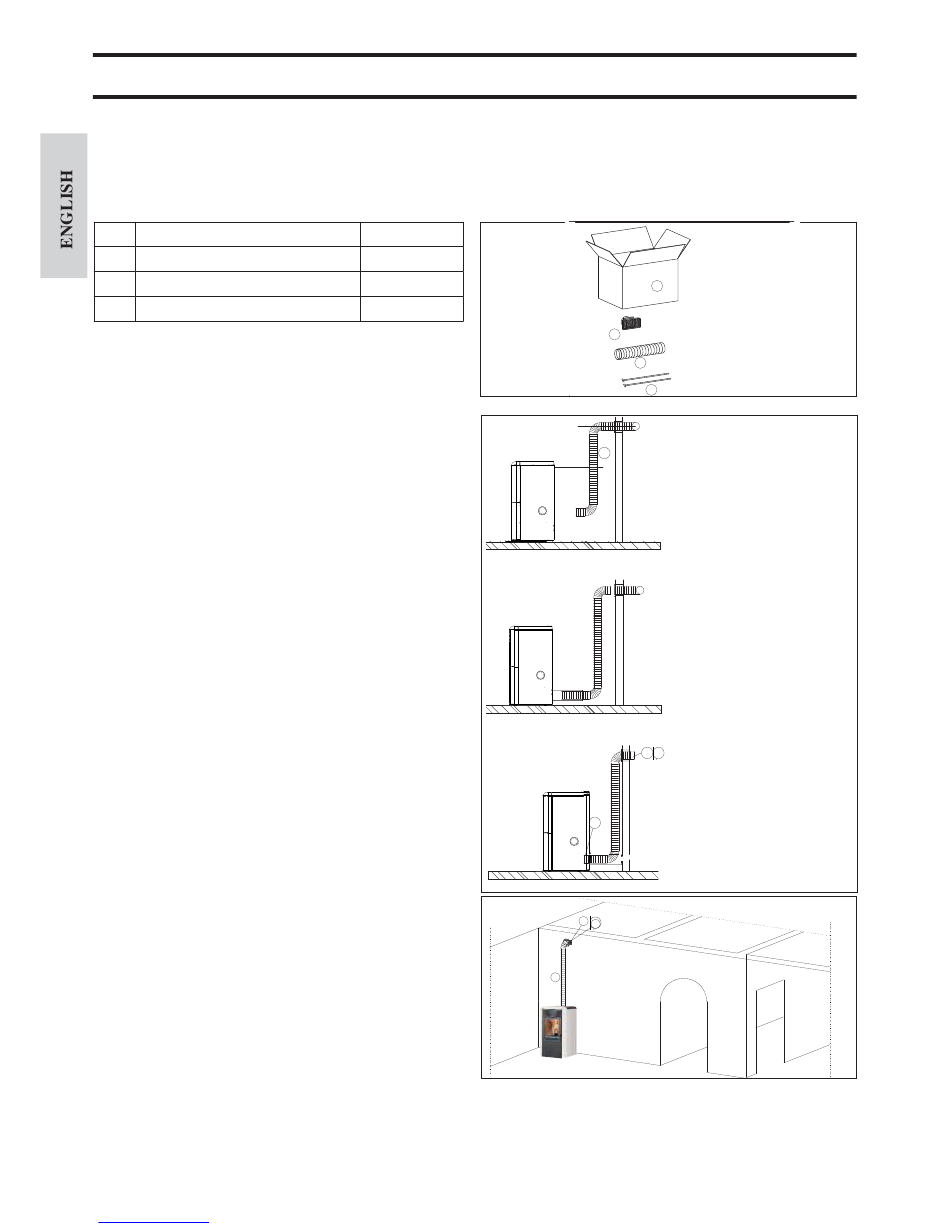

KIT 12 (code 778150) (optional)
TO CHANNEL HOT AIR INTO AN ADJACENT ROOM
IN ADDITION TO THAT OF INSTALLATION
Includes:
a Box
b Ø 8 pipe
c Smoke outlet end-piece
g Pipe blocking clamp
NOTE:
THE FIRST PART OF THE FLEXIBLE PIPE MUST BE
COMPLETELY "RELAXED" IN SUCH AWAY TO ELI-
MINATE CORRUGATION. IN THIS WAY, THE INTER-
NAL DIAMETER WILL BE SLIGHTLY ENLARGED TO
FAVOUR ENTRANCE.
Procedure:
- Defi ne the position of the stove with respect to the walling
(fi g. a).
- Place the stove in its defi nite position.
- Extend the aluminium pipe (b) for hot air channelling, wi-
thout connecting the stove outlet.
- Fit the alluminium pipe to the hot air oulet on the back of the
stove (fi g.C) and fasten it by its blocking clamp (g)
- Install the terminal outlet (c) to the end of the alluminum pipe
by its blocking clamp (g) (fi g. c) in the room to heat
Downloaded from www.Manualslib.com
HOT-AIR DUCTWORK
manuals search engine
n° 1
n° 1
n° 1
n° 2
fi g. a
fi g. b
e
fi g. c
d
b
e
- 30
-
a
d
c
f
b
e
g
b
d
8
d
g
c
g
f
e
g
c 8
