Tip: Use Allen Key to help push T-Nuts into
correct locations.
A)
07

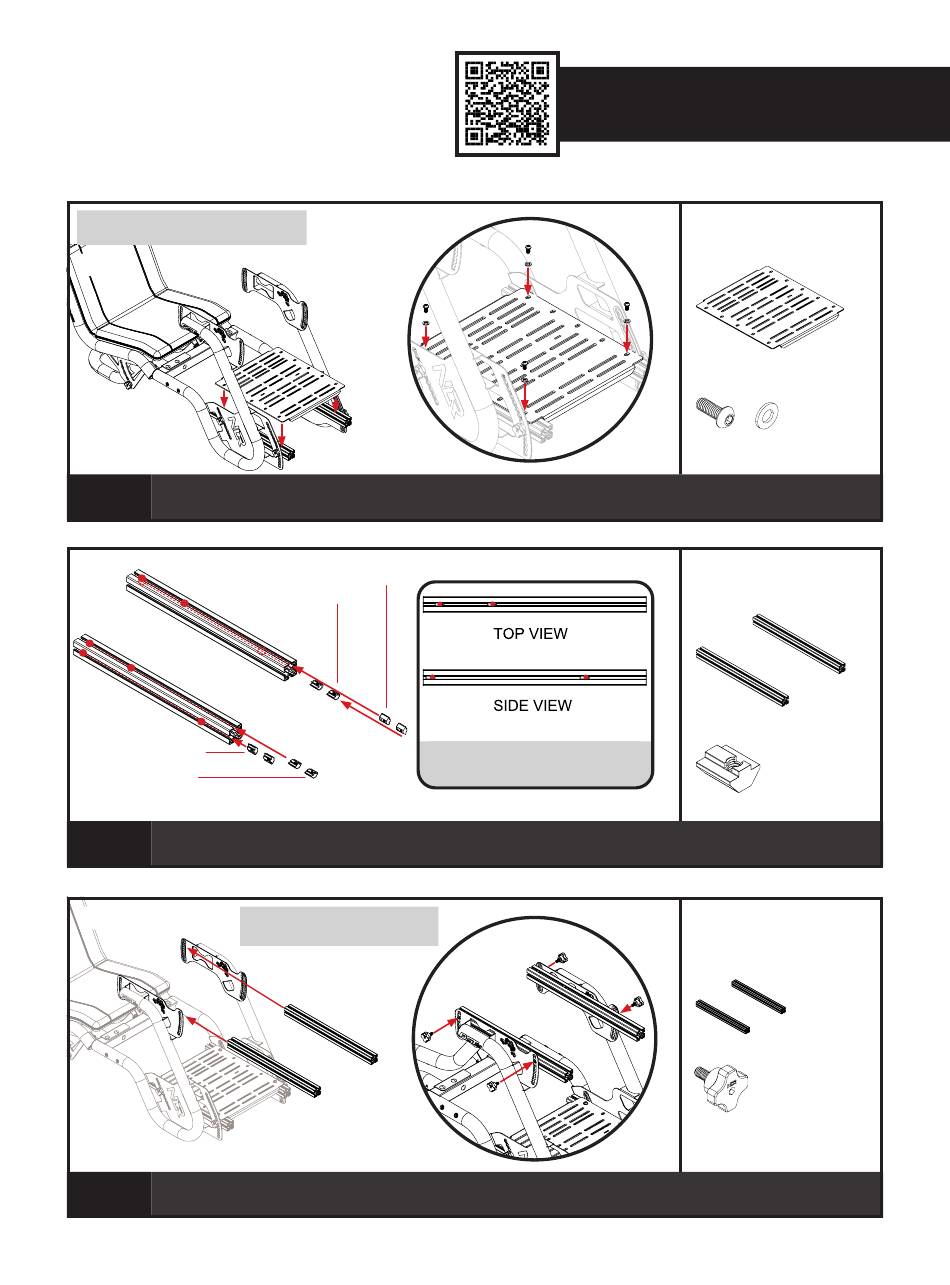

A) Align Pedal Plate to top of Pedal Plate Extrusions.
B) Bolt through into T-Nuts of Pedal Plate Extrusions to secure in place.
TOP T-NUT LOCATIONS
OUTER SIDE T-NUT LOCATIONS
TOP T-NUT LOCATIONS
08
Insert 2 x T-Nuts in to top channels of Wheel Plate Extrusions. Insert 2 x T-Nuts in to outside channels
of Wheel Plate Extrusions.
A)
Tip: Make sure the extrusions are level and
09
A) Align Wheel Plate Extrusions with the adjustment slots on the Front Frame.
B) Bolt through and secure using Shoulder Knobs.
B)
OUTER SIDE T-NUT LOCATIONS
TOP VIEW and SIDE VIEW of extrusions
the same height on both sides.
B)
Video Instruction: bit.ly/nlrbuild
showing T-Nut locations.
11
PARTS:
• • 1 x Pedal Plate
• • 4 x M8 16mm Button Head Bolts
• • 4 x M8 Washers
PARTS:
• • 2 x 550mm Wheel Plate
Extrusions
• • 8 x M8 T-Nuts
PARTS:
• • 2 x 550mm Wheel Plate
Extrusions with T-Nuts
• • 4 x M8 16mm Shoulder Knobs
