Tip: To protect some floors, install EVA Anti-Slip
Sticker Feet on underside of cockpit frame.
01

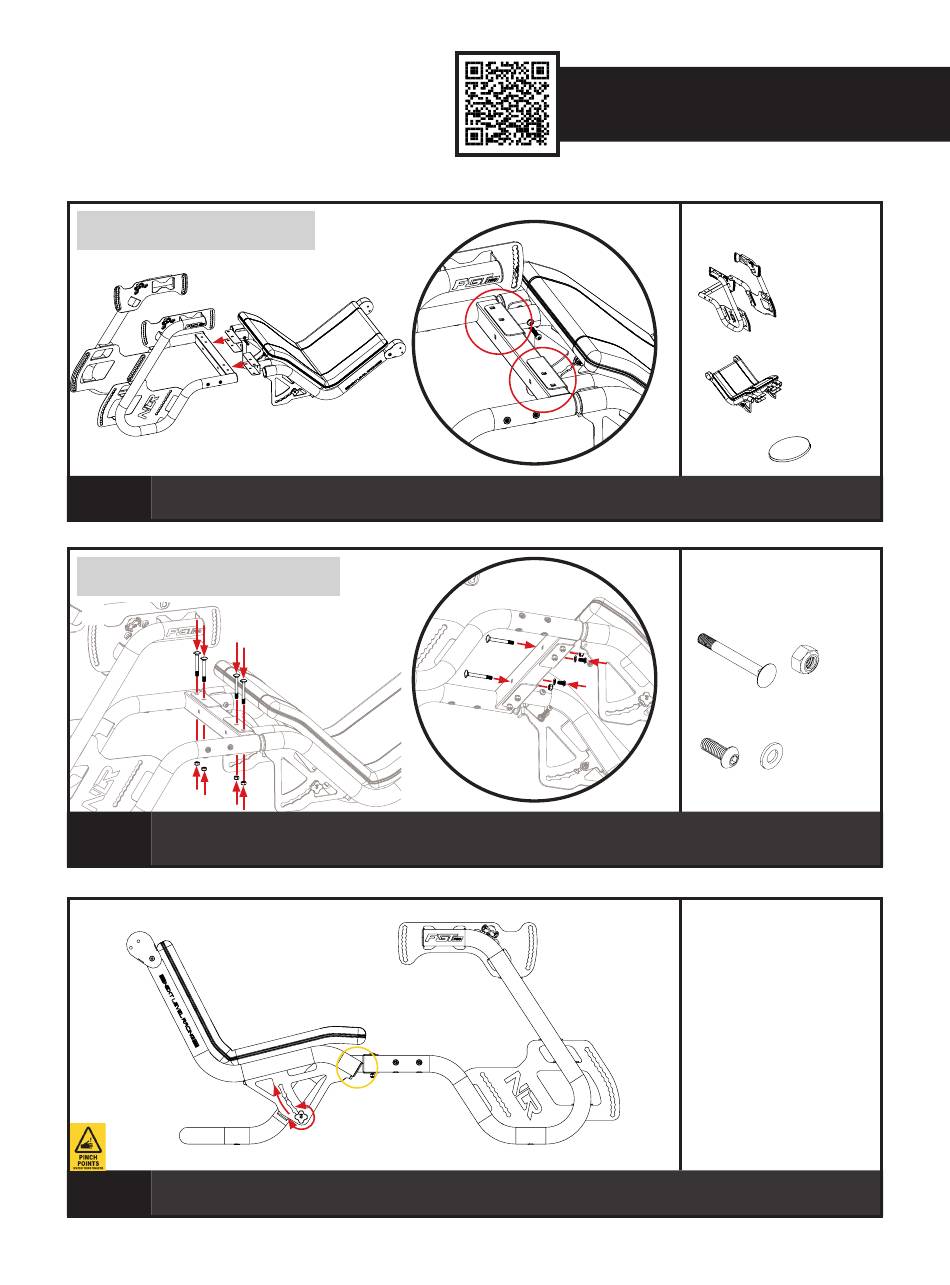

Align the Rear Frame bracket holes with the through holes and inserts on the Front Frame.
Tip: Align top bolts on one side first then move Rear
Frame into place to align on the opposite side.
A)
A) Bolt through top holes and secure using M8 Square Neck Carraige Bolts and Nyloc Nuts.
02
B) Bolt through front holes first using M8 Square Neck Carraige Bolts and Nyloc Nuts. Then secure
rear Bolts into inserts on Front Frame.
03
Loosen the Shoulder Knobs on the Rear Frame Assembly. Rotate the Seat Base upwards for ease of
assembly. Tighten the Shoulder Knobs again to secure Seat Base in place.
Video Instruction: bit.ly/nlrbuild
B)
9
PARTS:
• • 1 x Front Frame
• • 1 x Rear Frame Assembly
EVA Anti-Slip Sticker Feet
• • 5 x
(Optional)
PARTS:
• • 6 x M8 70mm Square Neck
Carraige Bolts
• • 6 x M8 Nyloc Nuts
• • 2 x M8 16mm Button Head Bolts
• • 2 x M8 Washers
PARTS:
• •
NIL
