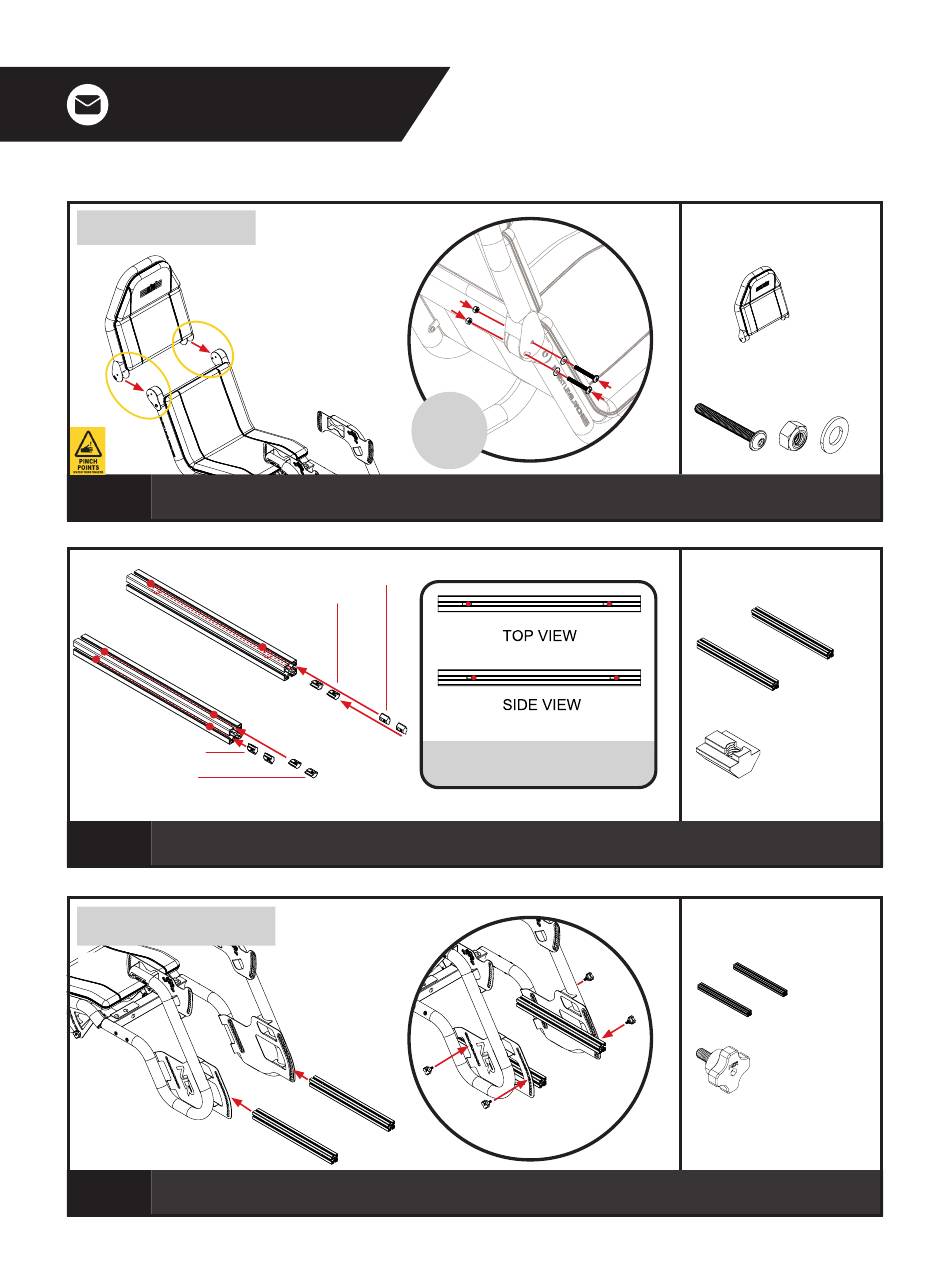

Tip: Flex Seat Backrest piece apart
slightly to help align holes.
A)
04
A) Align through holes on Seat Backrest Assembly with through holes on the Seat Base Assembly.
B) Bolt through Seat Base Assmebly pieces using M8 Bolts and Washers and secure with M8 Nyloc Nuts.
TOP T-NUT LOCATIONS
OUTER SIDE T-NUT LOCATIONS
TOP T-NUT LOCATIONS
05
Insert 2 x T-Nuts in to top channels of Pedal Plate Extrusions. Insert 2 x T-Nuts in to outer side
channels of Pedal Plate Extrusions.
Tip: Make sure the extrusions are level and
the same height on both sides.
A)
06
A) Align Pedal Plate Extrusions with the adjustment slots on the Front Frame.
B) Bolt through into T-Nuts and secure using Shoulder Knobs.
B)
Repeat
on Other
Side
OUTER SIDE T-NUT LOCATIONS
TOP VIEW and SIDE VIEW of extrusions
B)
showing T-Nut locations.
10
PARTS:
• • 1 x Seat Backrest Assmebly
• • 4 x M8 65mm Wide Button Head
Bolts
• • 4 x M8 Nyloc Nuts
• • 4 x M8 Plastic Washers
PARTS:
• • 2 x 500mm Pedal Plate
Extrusions
• • 8 x M8 T-Nuts
PARTS:
• •
2 x 500mm Pedal Plate Extrusions
with T-Nuts
• •
4 x M8 16mm Shoulder Knobs
