1. FUNCTIONS & FEATURES
RT95 Mobile Radio has nice housing, stoutness & stability, advanced and reliable functions, perfect & valuable. This
amateur mobile radio especially designs for drivers and it pursues philosophy of innovation and practicality. More functions
as follows:
♦ Adopt superior quality material, better technology and high quality radiator to ensure stable and durable operation;
♦ 180 degree rotatable TFT LCD display;
♦ Full alloy body for heat radiation;
♦ Frequency mode and Channel mode for different operation requirement;
♦ Distribute buttons reasonably, convenient for operation;
♦ Separate band width setting for each single channel, Wide 25K, Middle band 20K, Narrow band 12.5K;
♦ 200 programmable memory channels,identified by enditing name;
♦ Separate CTCSS, DCS, DTMF, 5Tone setting for each single channel,rejecting extra calling from other radios;
♦ Various scan functions including CTCSS/DCS Scan function;
♦ Smart menu control and PC programming control;
♦ Voltage level protection;
♦ LCD brightless control;
♦ Automatic power on function;
♦ Main unit and microphone key lock function;
♦ 5Tone signaling for data transfer,alarm, all call, ANI, remote kill, remotewaken.
♦ DTMF-ANI or 5Tone-ANI for automatical calling recognition;
♦ Scrambler(Optional).

2. INITIAL INSTALLATION

2.1 Mobile Installation

To install the transceiver, select a safe, convenient location inside your vehicle that minimizes danger to your passengers
and yourself while the vehicle is in motion. Consider installing the unit at an appropriate position so that knees or legs will
not strike it during sudden braking of your vehicle. Try to pick a well ventilated location that is shielded from direct sunlight.

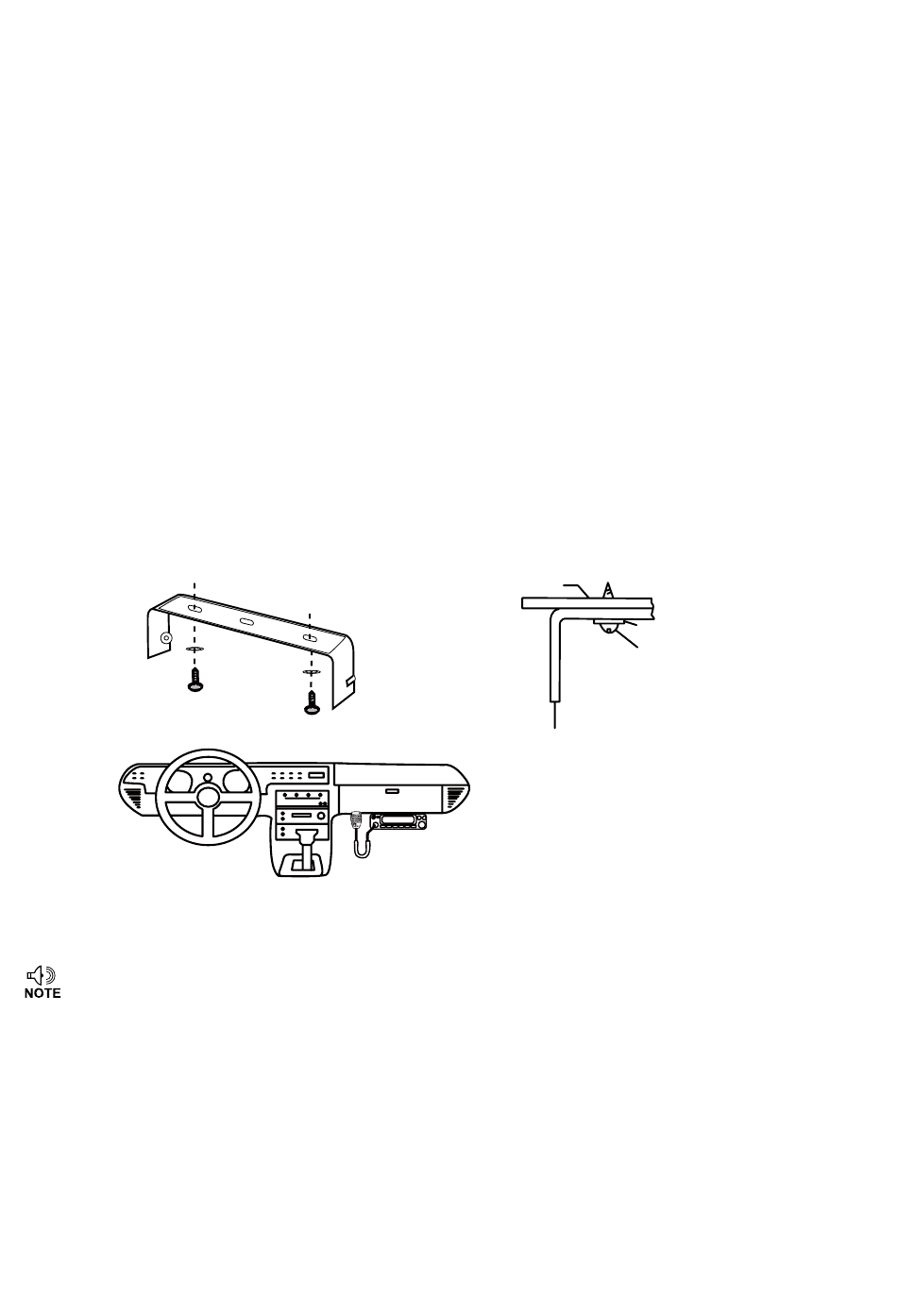

1.Install the mounting bracket in the vehicle using the supplied selftapping screws (2pcs) and flat washers (2pcs).
2.Position the transceiver, then insert and tighten the supplied hexagon SEMS screws.
♦ Double check that all screws are tightened to prevent vehicle vibration from loosening the bracket or transceiver.
2.2 DC Power Cable Connection
» Locate the power input connector as close to the transceiver as possible.

2.2.1 Mobile Operation

The vehicle battery must have a nominal rating of 12V. Never connect the transceiver to a 24V battery.Be sure to use a 12V
vehicle battery that has sufficient current capacity.If the current to the transceiver is insufficient,the display may darken
during transmission,or transmitting output power may drop excessively.
1.Route the DC power cable supplied with the transceiver directly to the vehicle's battery terminals using the shortest path
from the transceiver.
♦ We recommend you do not use the cigarette lighter socket as some cigarette lighter sockets introduce an unacceptable
voltage drop.
♦ The entire length of the cable must be dressed so it is isolated from heat, moisture, and the engine secondary (high
voltage) ignition system/ cables.
2. After installing cable, in order to avoid the risk of damp, please use heat-resistant tap to tie together with fuse box. Don't
forget to reinforce whole cable.
3.In order to avoid the risk of short circuit, please cut down connection with negative (-) of battery, then connect with radio.
4.Confirm the correct polarity of the connections, then attach the power cable to the battery terminals; red connects to the
positive (+) terminal and black connects to the negative (-) terminal.
Car body
Mounting bracket
1
Washer (M5)
Tapping screw
(M5x20mm)
