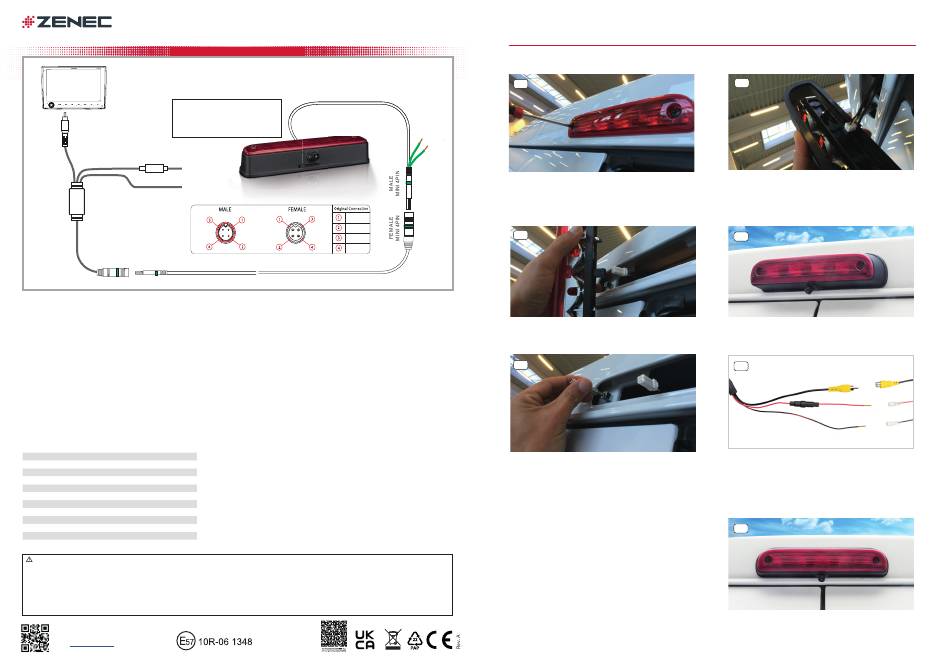

ZENEC ZE-RCE3703AHD Montageanleitung

MOUNTING INSTRUC TIONS
Only suitable for vehicles without
OE rear view camera.
The red brake light reflector is not
included in the scope of delivery.
RCA connector
AHD video signal
Fuse 1 A
DC 5 ~ 24 V
GND
Please find the correct pinouts for the 4pin connectors as below.
GND + shield
0.70 m
FEMALE
MALE
MINI 4PIN MINI 4PIN
KEY FEATURES
• AHD rear view camera for FIAT Ducato III vehicles and
identical vehicle types for use with selected AHD compatible
ZENEC device models
• Video scaler with selectable AHD or CVBS video output signal
• System design integrating the original Ducato brake light,
retaining the road use homologation
• High quality CMOS picture sensor with AHD 720p output
signal and low power consumption
• Mechanically adjustable cam angle, to optimize the vertical
fi eld of view
• Plastic injection main housing with stainless steel fi xation bolts
• 15 m long separable system cable equipped with mini 4-PIN
connectors
• Protection rating: IP69K certifi ed
COMPATIBLE WITH
MODEL MODEL TYP MODEL YEAR
Fiat Ducato III 250 2006 – 2021
Fiat Ducato III Series 8 / 9 2021 – 2024
Fiat Ducato III Series 2 as of
2024
Citroën Jumper II 250 2006 – 2024
Citroën Jumper II Series 2 as of 2024
Peugeot Boxer II 250 2006 – 2024
Peugeot Boxer II Series 2 as of 2024
Opel Movano C 250 2021 – 2024
Opel Movano C Series 2 as of 2024
Toyota Proace Max as of 2024
CAUTION
■ Use the included connection cable exclusively. Modifying the cable will void your warranty.
■ The camera is water- and dustproof and has been licensed according to the international standard IP69K. However, vehicle
cleaning using high pressure water and steam jet devices may still lead to damage of IP69K rated camera models by intrusion
of water.
■ If the motorhome is treated with a water jet high pressure cleaning device, make sure to keep a distance of at least one meter
between the water nozzle and the camera sensor / housing.
UK Declaration of Conformity
Hereby, ACR Brändli + Vögeli AG declares that ZENEC
ZE-RCE3703AHD is CE compliant – the EU Declaration
of Conformity can be accessed via the following Internet
address: http://www.zenec.com (see link „Product
Conformity Documents" in the footer area of the page).
ZENEC by ACR AG ∙ Bohrturmweg 1 ∙ CH-5330 Bad Zurzach ∙ Switzerland, EU Legal Representative: ACR S & V GmbH ∙ Industriestr. 35 ∙ D-79787 Lauchringen ∙ Germany ∙ www.zenec.com
ZE-RCE3703AHD ZE-RCE3703AHD
AHD RE AR VIE W C AMER A FOR FIAT DUC ATO III MOTORHOMES
50 cm
0.50 m
+12V
Video +12V +12V Video
N/A
Video
N/A N/A GND + shield
GND + shield
15.0 m
TECHNICAL SPECIFICATIONS
Image device: 1/4" / 6.09 mm SONY IMX225LQR
CMOS sensor
TV system: NTSC
View angle: 160°(D) x 130°(H) x 100°(V)
Native sensor resolution: 1280 (H) x 960 (V) pixels
Video signal resolution: 1280 (H) x 720 (V) pixels
Image frame rate: 30 fi elds/sec.
Lens focal length: f 1.2
Light sensitivity: 0,5 Lux / 50IRE
Image S/N Ratio: > 48 dB
Video output: 1.0 Vp-p (±0.2 V) 75 ohms, CVBS + AHD
White balance: Auto
Backlight compensation: Auto
Gamma correction: 0.45
Gain control: Auto
Sync system: Auto
Power supply: 5.0 – 24 V DC
Current consumption: 70 mA @12VDC, ≤ 840 mW
IP protection rating: IP69K
Operating temperature: -30° C ~ +75° C
Dimensions L x W x H: 278 x 35 x 62 mm
Content
1 pc ZE-RCE3703AHD camera main unit
2 pcs stainless steel mounting bolts
1 pc main extension cable, 15 m
1 pc cable end piece for HU-side connections, 70 cm
1 pc mounting instructions DE/EN, DIN-A4
INSTALLATION
1
Green wires:
• AHD when
1. Unscrew and remove both Philips head screws.
connected
Retain the screws for later remounting of the brake light
• CVBS when reflector.
open
2
2. Pull the brake light reflector unit out of its mounting
slot. Disconnect the white power supply system
connector plug of the vehicle.
3
3. Screw in and tighten the stainless steel mounting
bolts by hand (5Nm). Use a dab of Loctite, if possible.
4. Route the main cable of the ZE-RCE3703AHD cam
from the device slot in the vehicle cockpit / dashboard to
the brake light opening in the upper rear section of the
vehicle.
There are two green wires directly in front of the mini
4-PIN connector at the end of the camera cable.
These wires can be used to configure the camera video
signal output of the ZE-RCE3703AHD, depending on the
compatibility of the camera input of the head unit used.
With twisted green wires an AHD video signal is present
at the yellow RCA plug, with untwisted wires a CVBS
signal. Configure the green wires accordingly and do not
forget to insulate the bare copper ends.
ZE-RCE3703AHD ZE-RCE3703AHD
AHD RE AR VIE W C AMER A FOR FIAT DUC ATO III MOTORHOMES
5
5. Insert the brake light assembly into the main housing.
Next, plug in the white power supply system connector
into the socket on the brake light reflector housing
backside. Connect the mini-4PIN connector of the cam
sensor end to its counterpart of the extension cable.
6
6. Align the cam housing / reflector assembly over the
mounting location. Fix the assembly with the original
Philips head screws.
7
7. Connect the cables and plugs of the cams main
harness to the respective cables and connectors of the
head-unit. Observe and follow the installation instructions
of the chosen head-unit. Depending on the make and
model of the HU, it may be necessary to configure or
select camera signal input parameters like PAL / NTSC
and AHD / CVBS.
8
8. Perform a cam function test. Also check for proper
function of the 3rd brake light. Align the camera sensor
manually, for best desired image section. Installation and
cam setup is completed.
