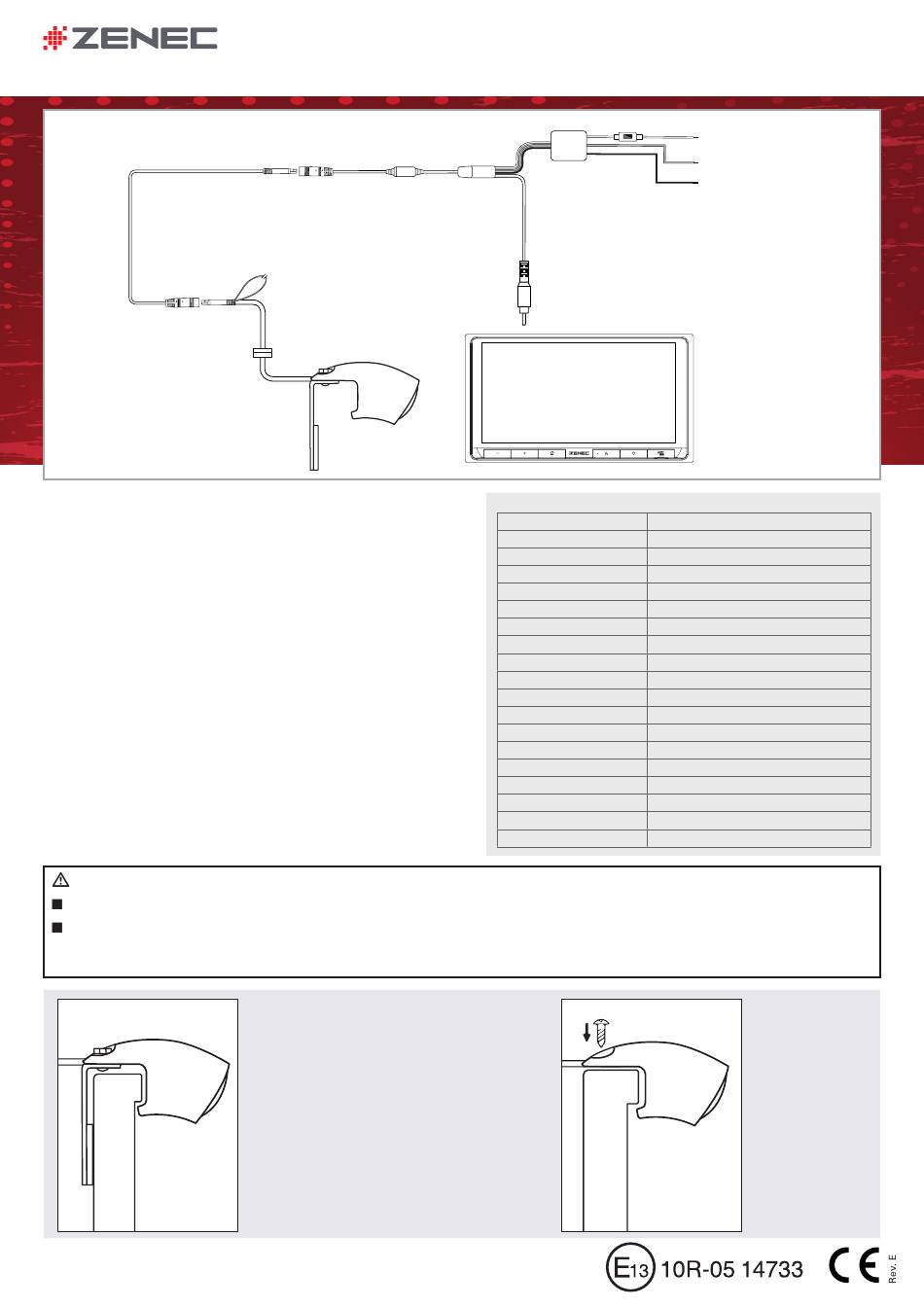

MOUNTING INSTRUCTIONS
7.0 m
Rear camera mode: Green cable open
Front camera mode: Green cable twisted
KEY FEATURES
• Compact, high-resolution camera for license plate holder
• Two different mounting solutions included in set content
• System design allows front- or rear- mounting and use
• Detailed high contrast picture ideally suited for twilight conditions
• Separable 3-part system cable, with cable lengths of 0.7 m +
7.0 m + 0.7 m
• Normal or mirror image picture output selectable
DESCRIPTION:
The ZENEC license plate cam model ZE-RVC55LP was developed
for use on almost any license plate holder, allowing retrofitting of a
great variety of vehicles. The picture can be outputted as normal or
mirror image, for mounting and utilization of this model as front- or
as rear view camera. With two different mounting options, the ZE-
RVC55LP is ideal for use on almost any vehicle.
This product is compatible with a wide variety of 2-DIN A/V receivers
of the aftermarket and the ZENEC E>GO product line up, including
ZENEC 2-DIN Infotainers and Naviceivers.
CAUTION:
Use the included connection cable exclusively. Altering or replacing it will void your warranty.
The camera is water- and dustproof and has been licensed according to the international standard IP69K. However,
vehicle cleaning using high pressure water and steam jet devices may still lead to damage of IP69K rated camera
models by water intrusion. Keep a distance of at least one meter between the water nozzle and the camera housing.
Alternative 1
ZENEC by ACR AG ∙ Bohrturmweg 1 ∙ CH-5330 Bad Zurzach ∙ Switzerland
EU Legal Representative: ACR S & V GmbH ∙ Industriestr. 35 ∙ D-79787 Lauchringen ∙ Germany
www.zenec.com
0.7 m
There are two ways to install the ZE-RVC55LP:
Alternative 1:

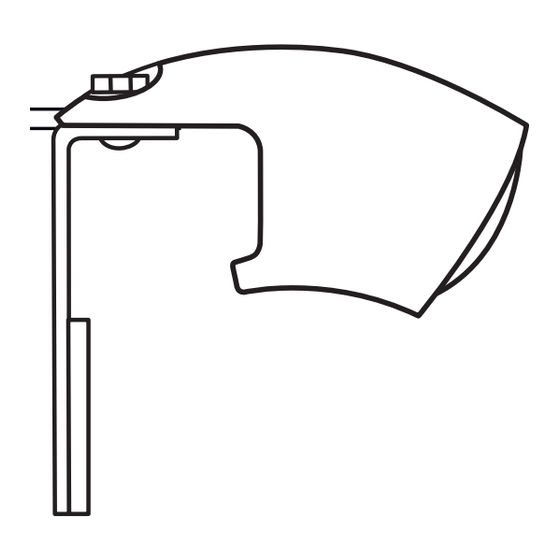

You can attach the camera with the enclosed
aluminium bracket and the adhesive pad on the back
of the license plate holder. The aluminium bracket can
be adjusted by bending individually to the respective
vehicle.
Alternative 2:
Screw the camera directly onto the top of the license
plate holder using the enclosed screws.
Drill a hole with the diameter Ø 6,5 mm and put the
cable through it. The rubber seal must seal the hole
completely.
0.7 m
Video Out
(connect to Infotainer / Naviceiver)
Technical Specifications:
Image device:
Lens focal length:
TV system:
View angle:
Native sensor resolution:
Resolution of video-out:
Frame rate:
Signal to noise ratio:
Light sensitivity:
Video output:
White balance:
Backlight compensation:
Gamma correction:
Gain control:
Sync system:
Power supply:
Current consumption:
IP protection rating:
Operating temperature:
Alternative 2
ZE-RVC55LP ZE-RVC55LP
LICENSE PLATE CAM LICENSE PLATE CAM
2A fuse
Yellow: B+ 12V (KL15)
Red: Cam PWR (+12 V)
Black: GND
¼" / 6.4 mm Aptina ASX340 CMOS sensor
f1.5
NTSC / 60 Hz
180°(D) x 140°(H) x 90°(V)
680 (H) x 512 (V) pixels
> 420 TV lines
60 fi elds/sec.
> 48 dB
0.5 Lux/F1.2/50IRE
1.0 Vp-p, 75 ohms CVBS
Auto
Auto
0.45
Auto
Auto
12 DCV (9 V – 16 V)
40mA (DC12V) / ≤ 480mW
IP69K
-30°C~+75°C
