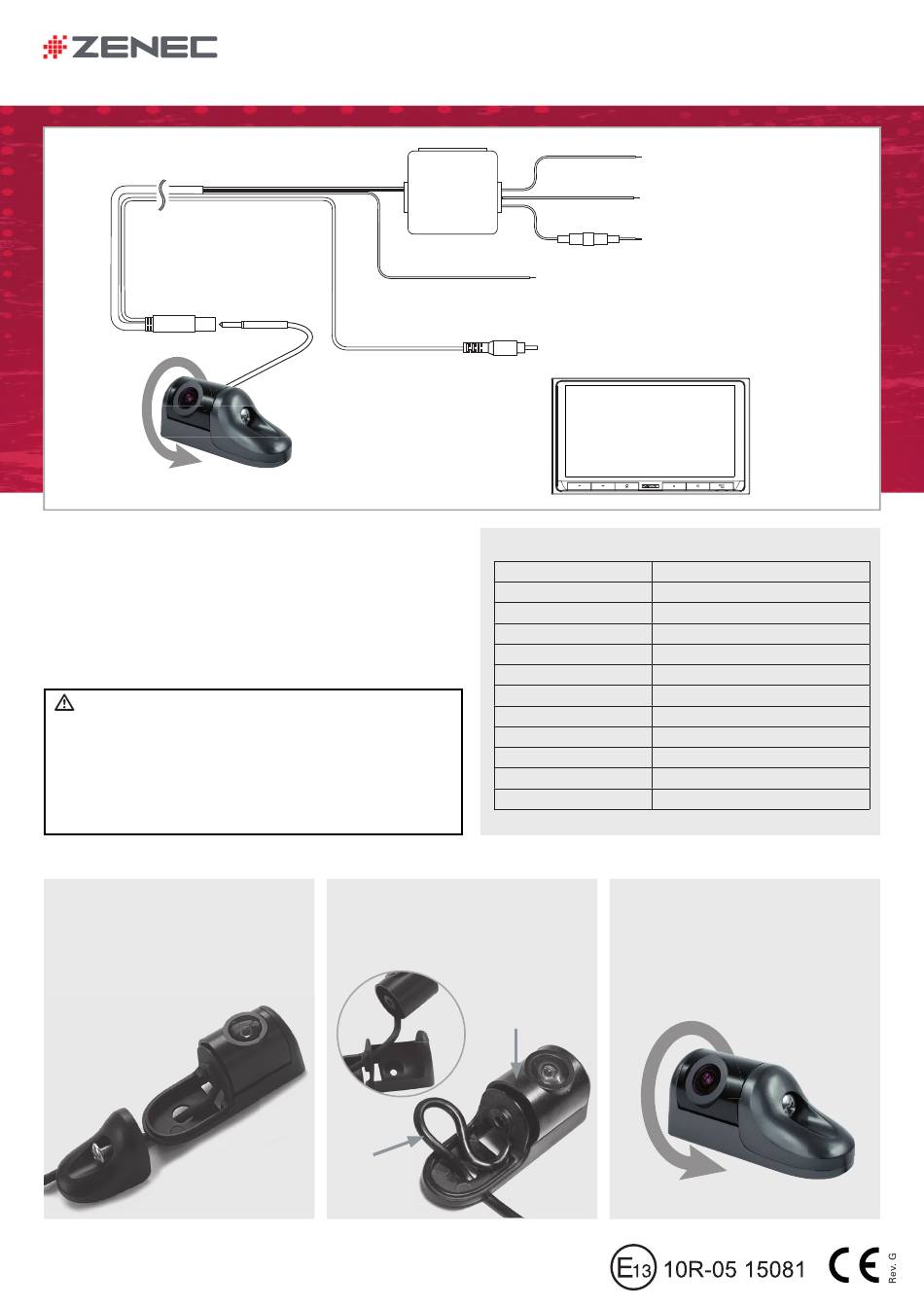

ZENEC ZE-RVC80MT MKII Montageanleitung

MOUNTING INSTRUCTIONS
Camera rotates

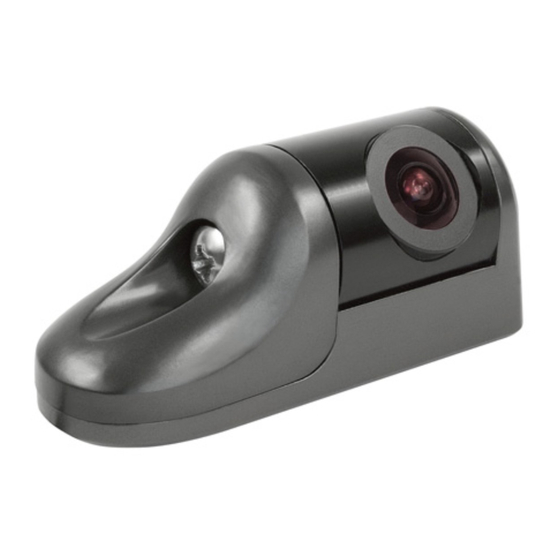

Due to its compact size the ZE-RVC80MT MKII rear view camera
is suitable to be installed at the upper edge of the license plate
or below the rear bumper, depending on car model or customer
preferences. The connection cable of the camera can often be
routed alongside the license plate illumination wires – allowing for a
quick and trouble free installation process. The high quality CMOS
camera sensor also offers an extended temperature operating
range, a waterproof lens assembly (IP68) and housing, made of
durable die cast aluminium.
CAUTION:
*
Following the latest trend in vehicle electronics, newer cars
mainly use a pulse width modulated power feed for outer
hull lights, which is unsuitable for imaging/video electronics,
as it causes considerable picture distortion.
*
Use the included connection cable exclusively. Altering or
replacing it will void your warranty.
Rotatable Reverse Camera
Uncrew ths side cap. Cable goes
through the hole in the bracket and
remains invisible after the installation
is completed.
ZENEC by ACR AG ∙ Bohrturmweg 1 ∙ CH-5330 Bad Zurzach ∙ Switzerland
EU Legal Representative: ACR S & V GmbH ∙ Industriestr. 35 ∙ D-79787 Lauchringen ∙ Germany
www.zenec.com
Technical Specifications
Image device:
TV system:
Viewing angle:
Sensor resolution:
Resolution of video-out:
Minimum illumination:
Video output:
White balance:
Power supply:
Current consumption:
IP protection rating:
Operating temperature:
Form an „S" shape with the cable
before you pull the cylinder out of the
bracket. Drill a mounting hole and fix the
bracket in place.
Cylinder
Wire
ZE-RVC80MT MKII ZE-RVC80MT MKII
REAR VIEW CAMERA REAR VIEW CAMERA
Red: ACC
Black: GND
Yellow: Battery +12VDC
Green: Cable unconnected causes mirror image.
Cable connected to GND yields normal image.
Yellow: Video Out
(connect to Moni-/Naviceiver)
0.25" CMOS Sensor
NTSC
140° horizontal
720 x 480 pixels
480 TV lines
0.3 lux
1 Vp-p, 75 ohms
Auto
DC 12 Volt typ.
60 mA max.
IP68 water and dust protected
-30°C to +75°C
Insert the cylinder into the bracket.
Attach the side cap piece.
Rotate the cylinder into desired view
angle. Tighten the screw.
