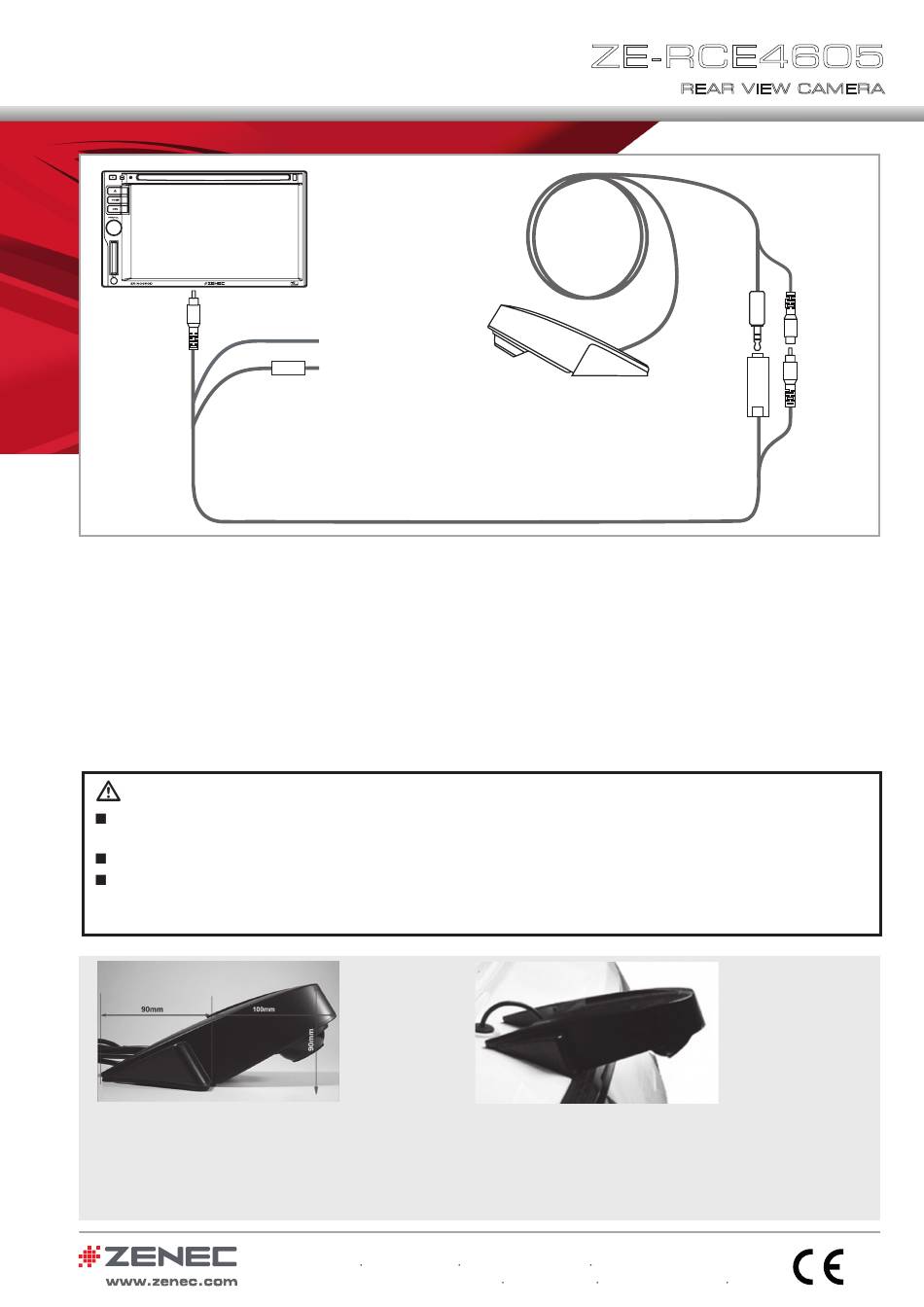

ZENEC ZE-RCE4605 Montageanleitung

MOUNTING
INSTRUCTIONS
RCA yellow:
Connect to RVC video-in
KEY FEATURES
• High resolution rear view camera for pick-up trucks, motor-homes and van type vehicles
• Light sensor controlled day and
• 10 m length of main wire harness
DESCRIPTION:
This ZENEC rear view camera model has been developed for use with pick-up trucks, motor-homes and Van type vehicles. The
use of high quality parts and materials for best weather resistance and longevity, as well as the clever construction according to
IP67 protection class allow for a perfect operation in the afore mentioned target vehicles.
The Z-RCE4605 offers a large 120° horizontal viewing angle and can be operated in inverted or non-inverted picture mode to
comply with a great variety of RVC monitors and head units.
This product is compatible with all ZENEC moni- and naviceivers, as well as the ZENEC E>GO product line-up.
NOTES:
Following the latest trend in vehicle electronics, newer cars mainly use a pulse width modulated power feed for outer
hull lights, which is unsuitable for imaging/video electronics, as it causes considerable picture distortion.
Use the included connection cable exclusively. Altering or replacing it will void your warranty.
The camera is water- and dustproof and has been tested according to international standard IP67. However, cleaning
your vehicle with a high pressure washer, may damage the housing sealings. For that reason you are asked to steadily
keep a distance of at least one meter between water nozzle and camera housing.

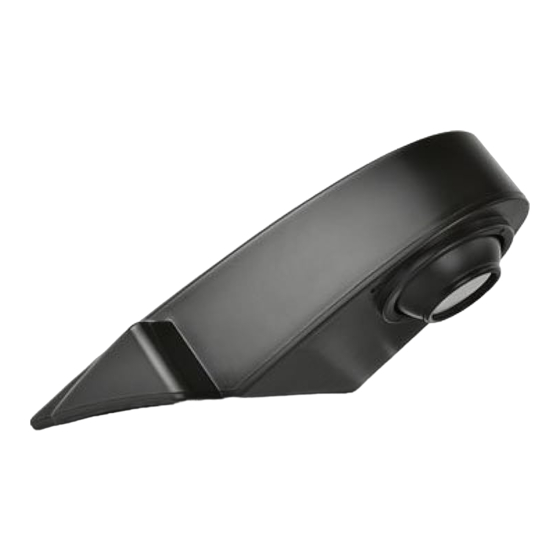

Mounting:
Camera for universal deployment and mounting at the upper roof end of pick-up trucks, motor-homes and van type
vehicles. The view angle of the camera sensor can be dialed in manually.
Montage:
Kamera für universelle Montage und Verwendung an der hinteren Dachabrisskante von Kleintransportern, MotorHomes
und Vans. Der Betrachtungswinkel des Kamerasensors lässt sich manuell einstellen.
ZENEC by ACR AG Bohrturmweg 1 CH-5330 Bad Zurzach Switzerland
EU Legal Representative: ACR S & V GmbH Industriestr. 35 D-79787 Lauchringen Germany
Black: GND
Red: DC 12 V
Fuse
0.5 A
night mode with nine night vision IR LED's
ZE-RCE4605
0.5 m
10.0 m
REAR VIEW CAMERA
5.5 mm RCA yellow:
jack Connect to
RVC video-
signal
Rev. B
