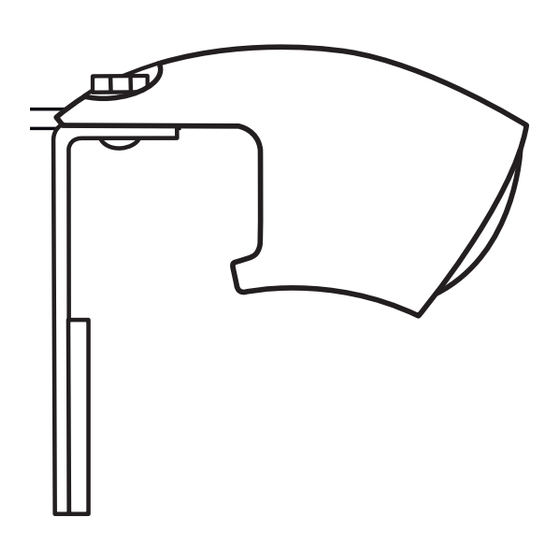

MOUNTING
INSTRUCTIONS
7.0 m
Rear camera mode: Green cable open
Front camera mode: Green cable twisted
KEY FEATURES
• Compact, high-resolution camera for license plate holder
• Two different mounting solutions included in set content
• System design allows front- or rear- mounting and use
• Detailed high contrast picture ideally suited for twilight conditions
• Separable 3-part system cable, with cable lengths of 0.7m + 7.0m + 0.7m
• Normal or mirror image picture output selectable
DESCRIPTION:
The ZENEC license plate cam model ZE-RVC55LP was developed for use on almost any license plate holder, allowing retrofitting
of a great variety of vehicles. The picture can be outputted as normal or mirror image, for mounting and utilization of this model
as front- or as rear view camera. With two different mounting options, the ZE-RVC55LP is ideal for use on almost any vehicle.
This product is compatible with a wide variety of 2-DIN A/V receivers of the aftermarket and the ZENEC E>GO product line up,
including ZENEC 2-DIN Infotainers and Naviceivers.
CAUTION:
Use the included connection cable exclusively. Altering or replacing it will void your warranty.
The camera is water- and dustproof and has been licensed according to the international standard IP69K. However,
vehicle cleaning using high pressure water and steam jet devices may still lead to damage of IP69K rated camera
models by water intrusion. Keep a distance of at least one meter between the water nozzle and the camera housing.
EN
Technical
Specifications:
Image device:
¼" / 6.4 mm Aptina ASX340 CMOS sensor
Lens focal length:
f1.5
TV system:
NTSC / 60 Hz
View angle:
180°(D) x 140°(H) x 90°(V)
Native sensor resolution:
680 (H) x 512 (V) pixels
Resolution of video-out:
> 420 TV lines
Frame rate:
60 fi elds/sec.
Signal to noise ratio:
> 48 dB
Light sensitivity:
0.5 Lux/F1.2/50IRE
Video output:
1.0 Vp-p, 75 ohms CVBS
White balance:
Auto
Backlight compensation:
Auto
Gamma correction:
0.45
Gain control:
Auto
Sync system:
Auto
Power supply:
DC 6 – 16V
Current consumption:
40mA (DC12V) / ≤ 480mW
IP protection rating:
IP69K
Operating temperature:
-30°C~+75°C
ZENEC Bohrturmweg 1 CH-5330 Bad Zurzach Switzerland
EU Legal Representative:
ACR S & V GmbH Industriestraße 35 D-79787 Lauchringen Germany
0.7 m
0.7 m

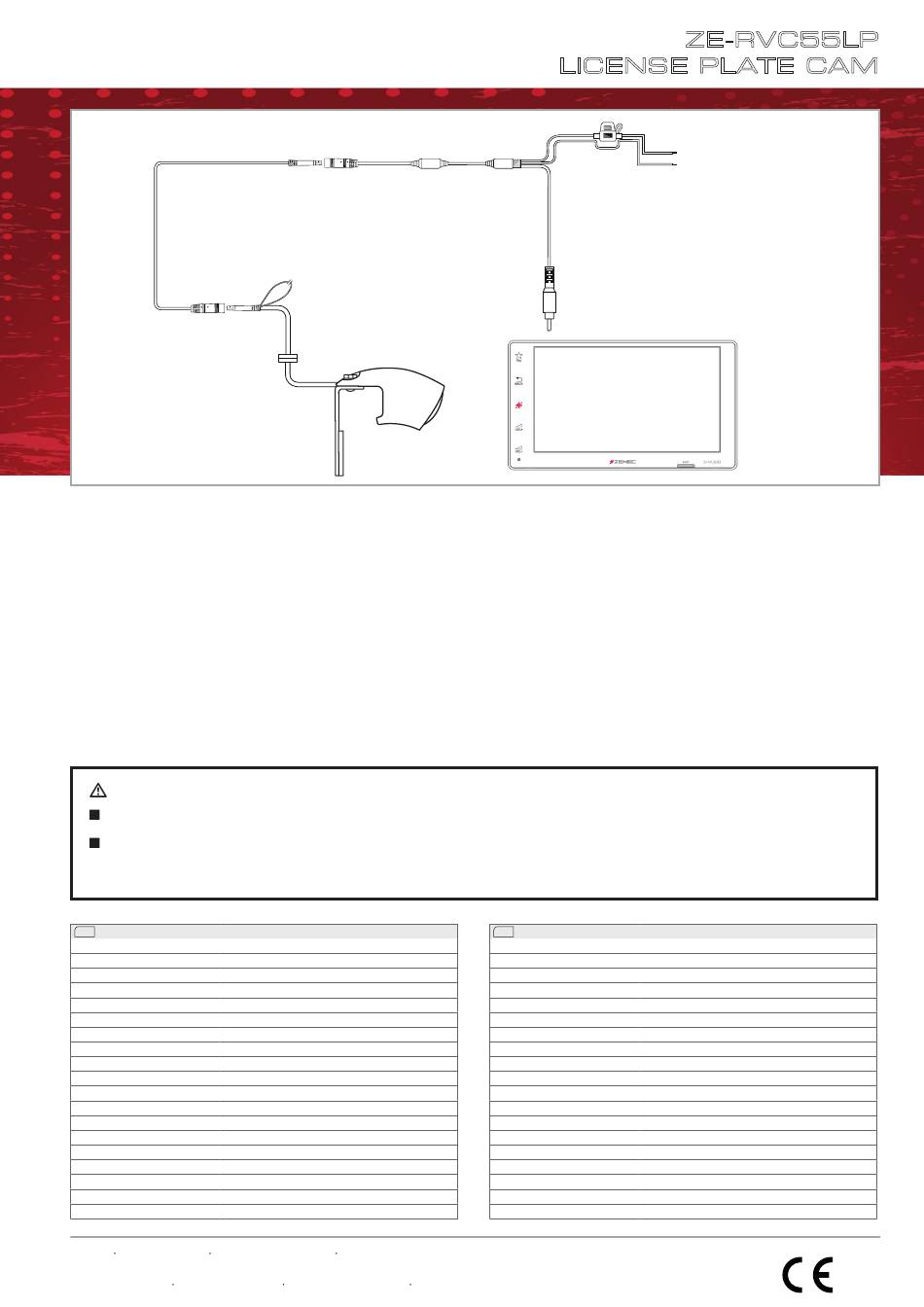

LICENSE PLATE CAM
2A fuse
Video Out
(connect to Moni-/Naviceiver)
DE
Technische Spezifikationen
Kamerasystem:
¼" / 6.4 mm Aptina ASX340 CMOS Sensor
Brennweite Linse:
f1.5
TV System:
NTSC / 60 Hz
Betrachtungswinkel:
180°(D) x 140°(H) x 90°(V)
Native Sensor Aufl ösung:
680 (H) x 512 (V) Pixel
Aufl ösung Ausgangssignal:
> 420 TV Linien
Bildwiederholrate:
60 Felder/Sek.
Signal/Rauschabstand:
> 48 dB
Lichtempfi ndlichkeit:
0.5 Lux/F1.2/50IRE
Video Ausgang:
1,0 Vp-p, 75 Ohm CVBS
Weißabgleich:
Automatisch
Belichtungskompensation:
Automatisch
Gamma Korrektur:
0.45
Helligkeitsabgleich:
Automatisch
Synchronisation:
Automatisch
Spannungsversorgung:
DC 6 – 16V
Stromverbrauch:
40mA (DC12V) / ≤ 480mW
Schutzklasse:
IP69K
Betriebstemperatur:
-30°C~+75°C
ZE-RVC55LP
Red: CAMERA PWR (+12V)
Black: GND
Rev. A
