ZENEC ZE-RVC85WA Montageanleitung

MOUNTING INSTRUCTIONS
7.0 m
Housing Front camera
KEY FEATURES
• Compact "wide angle" universal camera
• Two different housing types, each with two adhesive pads, are
included in delivery
• System design allows front- or rear- mounting and use
• Detailed high contrast picture suited for twilight conditions
• Separable 3-part system cable, with cable parts of 0.7 m +
7.0 m + 0.7 m length
• Normal or mirror image picture output selectable
DESCRIPTION:

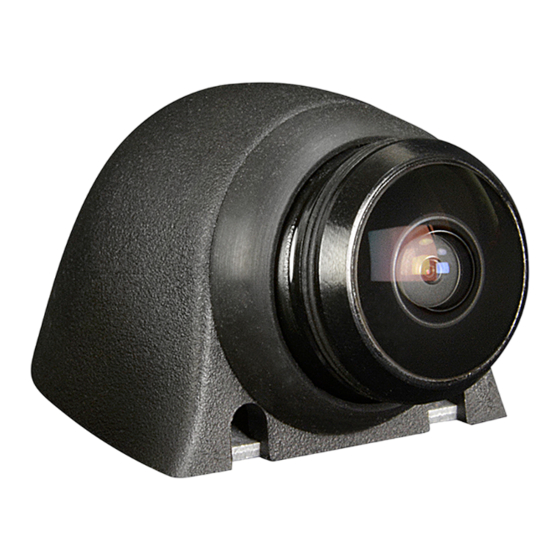

The ZENEC wide angle cam model ZE-RVC85WA was developed
for universal use, allowing retrofitting of a great variety of vehicles
due to its extremely compact housing shape. The picture can be
outputted as normal or mirror image, for mounting and utilization
of this model as front- or as rear view camera. Besides, the ZE-
RVC85WA is a true wide angle cam, offering an enormous horizon-
tal view angle of 190°.
This product is compatible with a wide variety of 2-DIN A/V receivers
of the aftermarket and the ZENEC E>GO product line up, including
ZENEC 2-DIN infotainers and naviceivers.
CAUTION:
Use the included connection cable exclusively. Altering or replacing it will void your warranty.
The camera is water- and dustproof and has been licensed according to the international standard IP69K. However,
vehicle cleaning using high pressure water and steam jet devices may still lead to damage of IP69K rated camera
models by water intrusion. Keep a distance of at least one meter between the water nozzle and the camera housing.
Rear camera
ZENEC by ACR AG ∙ Bohrturmweg 1 ∙ CH-5330 Bad Zurzach ∙ Switzerland
EU Legal Representative: ACR S & V GmbH ∙ Industriestr. 35 ∙ D-79787 Lauchringen ∙ Germany
www.zenec.com
Rear camera mode: Green cable open
Front camera mode: Green cable twisted
0.7 m
Housing Rear camera
lnstall the ZE-RVC85WA in the insert of the license illumination plate.
Take off the panel and drill a Ø 6.5 mm diameter hole.

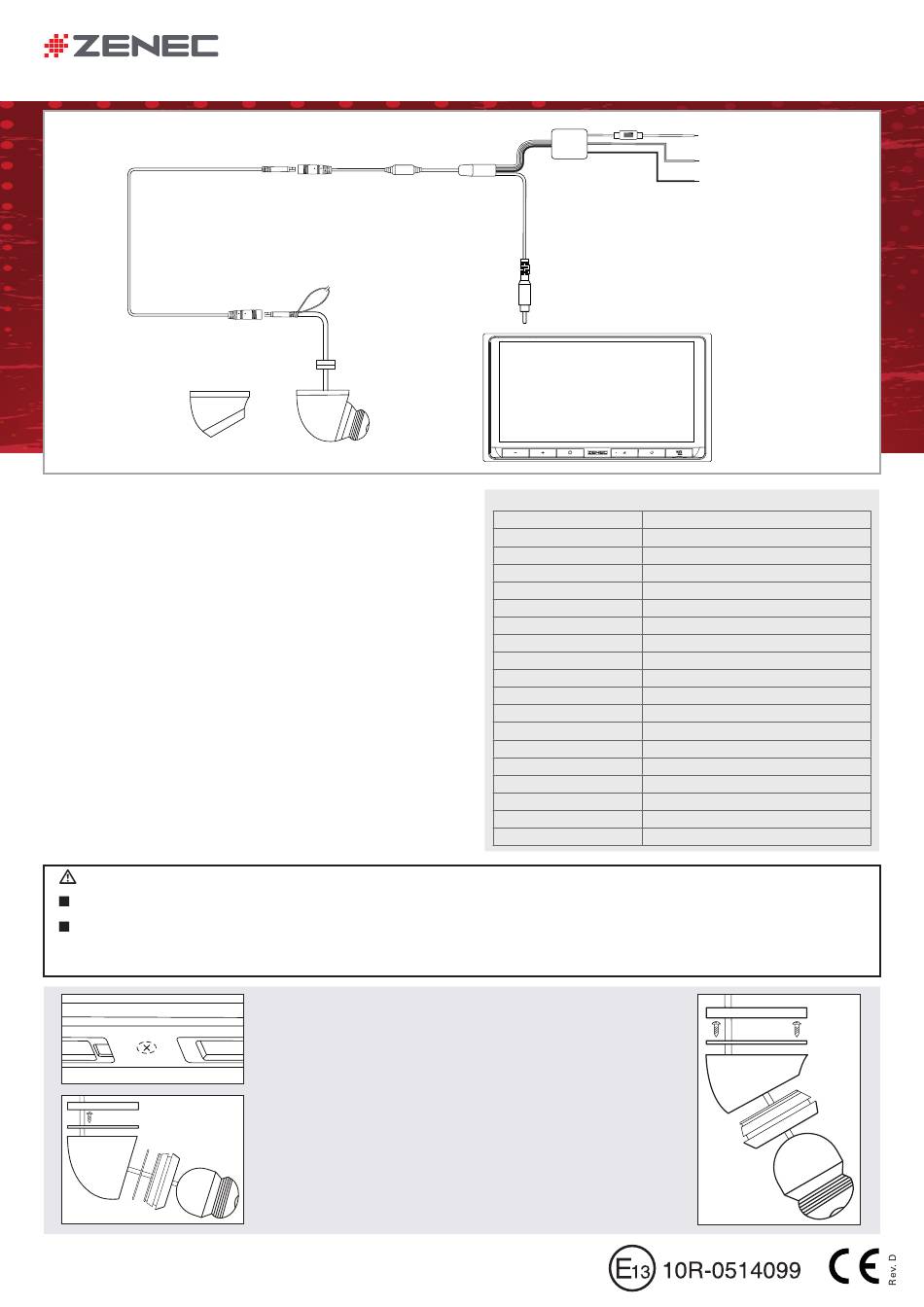

Assemble the camera as shown in the two explosions drawings:
Left picture = Rear camera
Right picture = Front camera
Put the cable through the hole and fasten the camera to the car, using
the adhesive pad.
Important: Use the supplied metal ring only for the rear camera housing.
0.7 m
Video Out
(connect to Moni-/Naviceiver)
Technical Specifications:
Image device:
Lens focal length:
TV system:
View angle:
Native sensor resolution:
Resolution of video-out:
Frame rate:
Signal to noise ratio:
Light sensitivity:
Video output:
White balance:
Backlight compensation:
Gamma correction:
Gain control:
Sync system:
Power supply:
Current consumption:
IP protection rating:
Operating temperature:
ZE-RVC85WA ZE-RVC85WA
FRONT / REAR VIEW CAM FRONT / REAR VIEW CAM
2A fuse
Yellow: B+ 12V (KL15)
Red: Cam PWR (+12 V)
Black: GND
¼" / 6.4 mm Aptina ASX340 CMOS sensor
f1.05
NTSC / 60 Hz
210°(D) x 190°(H) x 140°(V)
680 (H) x 512 (V) pixels
> 420 TV lines
60 fi elds/sec.
> 48 dB
0.5 Lux/F1.2/50IRE
1.0 Vp-p, 75 ohms CVBS
Auto
Auto
0.45
Auto
Auto
DC 5 – 16V
60mA (DC12V) / ≤ 720mW
IP69K
-30°C~+75°C
ZE-RVC45DT: 10R-0514099
E13, 10R-0514099
Front camera
