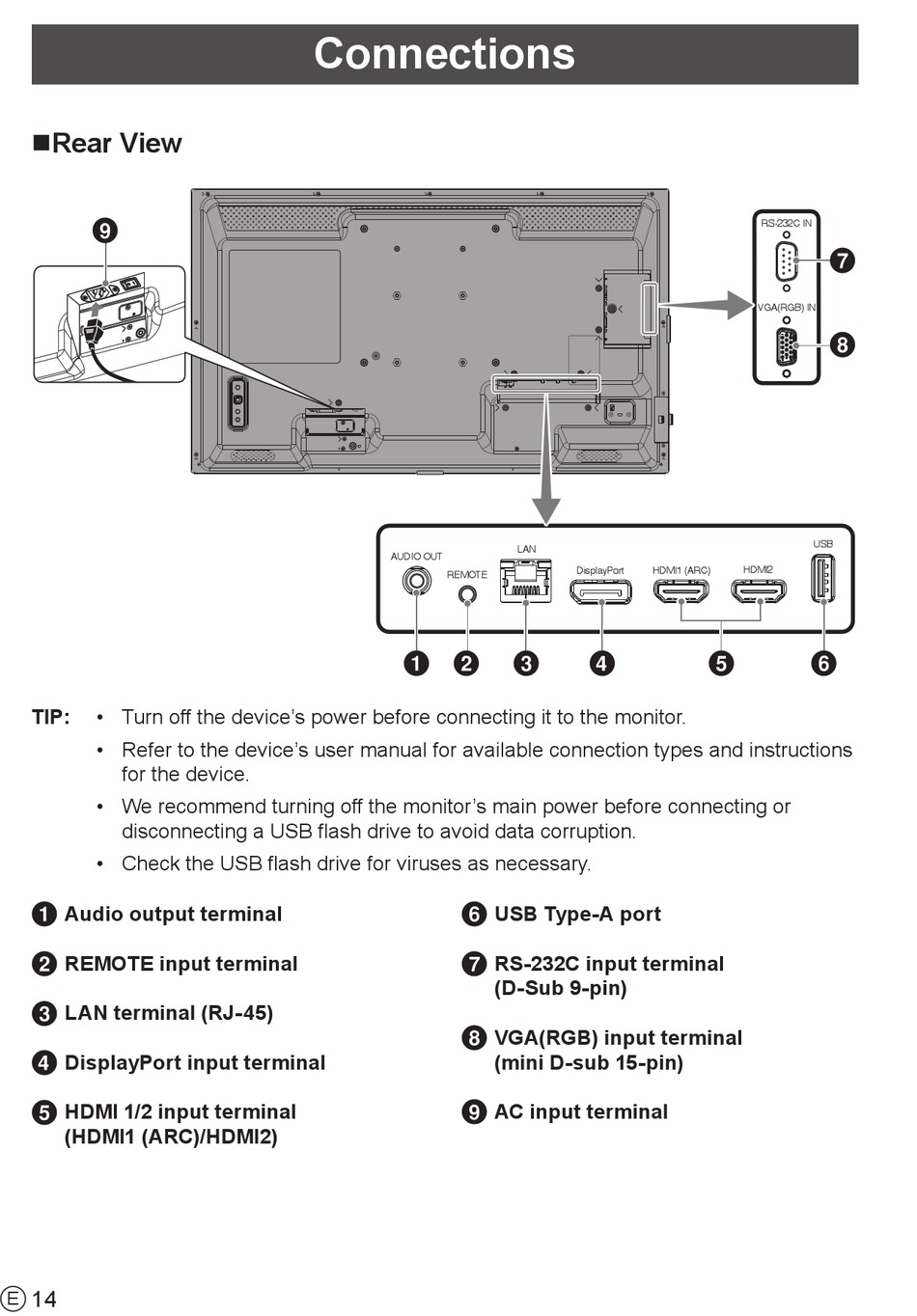

nRear View
9

TIP: • Turn off the device's power before connecting it to the monitor.

• Refer to the device's user manual for available connection types and instructions
for the device.

• We recommend turning off the monitor's main power before connecting or
disconnecting a USB flash drive to avoid data corruption.

• Check the USB flash drive for viruses as necessary.
Audio output terminal
1
REMOTE input terminal
2
LAN terminal (RJ-45)
3
DisplayPort input terminal
4
HDMI 1/2 input terminal
5
(HDMI1 (ARC)/HDMI2)
14
E

Connections

AUDIO OUT
REMOTE
1 2
6
7
8
9
LAN
DisplayPort HDMI1 (ARC)
3 4
USB Type-A port
RS-232C input terminal
(D-Sub 9-pin)
VGA(RGB) input terminal
(mini D-sub 15-pin)
AC input terminal
RS-232C IN
7
VGA(RGB) IN
8
USB
HDMI2
5 6
