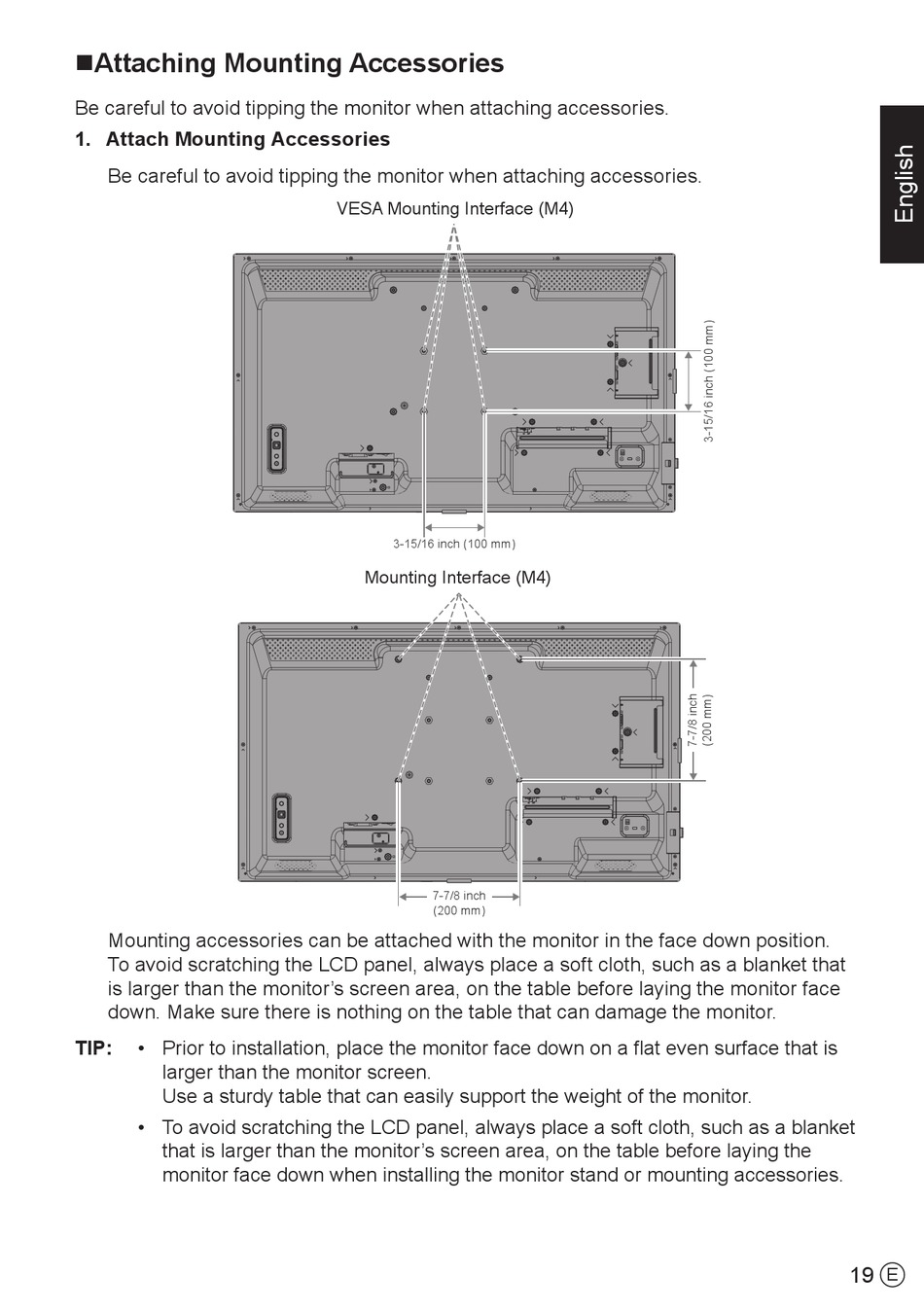

nAttaching Mounting Accessories
Be careful to avoid tipping the monitor when attaching accessories.
1. Attach Mounting Accessories
Be careful to avoid tipping the monitor when attaching accessories.
Mounting accessories can be attached with the monitor in the face down position.
To avoid scratching the LCD panel, always place a soft cloth, such as a blanket that
is larger than the monitor's screen area, on the table before laying the monitor face
down. Make sure there is nothing on the table that can damage the monitor.

TIP: • Prior to installation, place the monitor face down on a flat even surface that is
larger than the monitor screen.
Use a sturdy table that can easily support the weight of the monitor.

• To avoid scratching the LCD panel, always place a soft cloth, such as a blanket
that is larger than the monitor's screen area, on the table before laying the
monitor face down when installing the monitor stand or mounting accessories.
VESA Mounting Interface (M4)
3-15/16 inch (100 mm) 3-15/16 inch (100 mm)
Mounting Interface (M4)
7-7/8 inch 7-7/8 inch
(200 mm) (200 mm)
19
E
