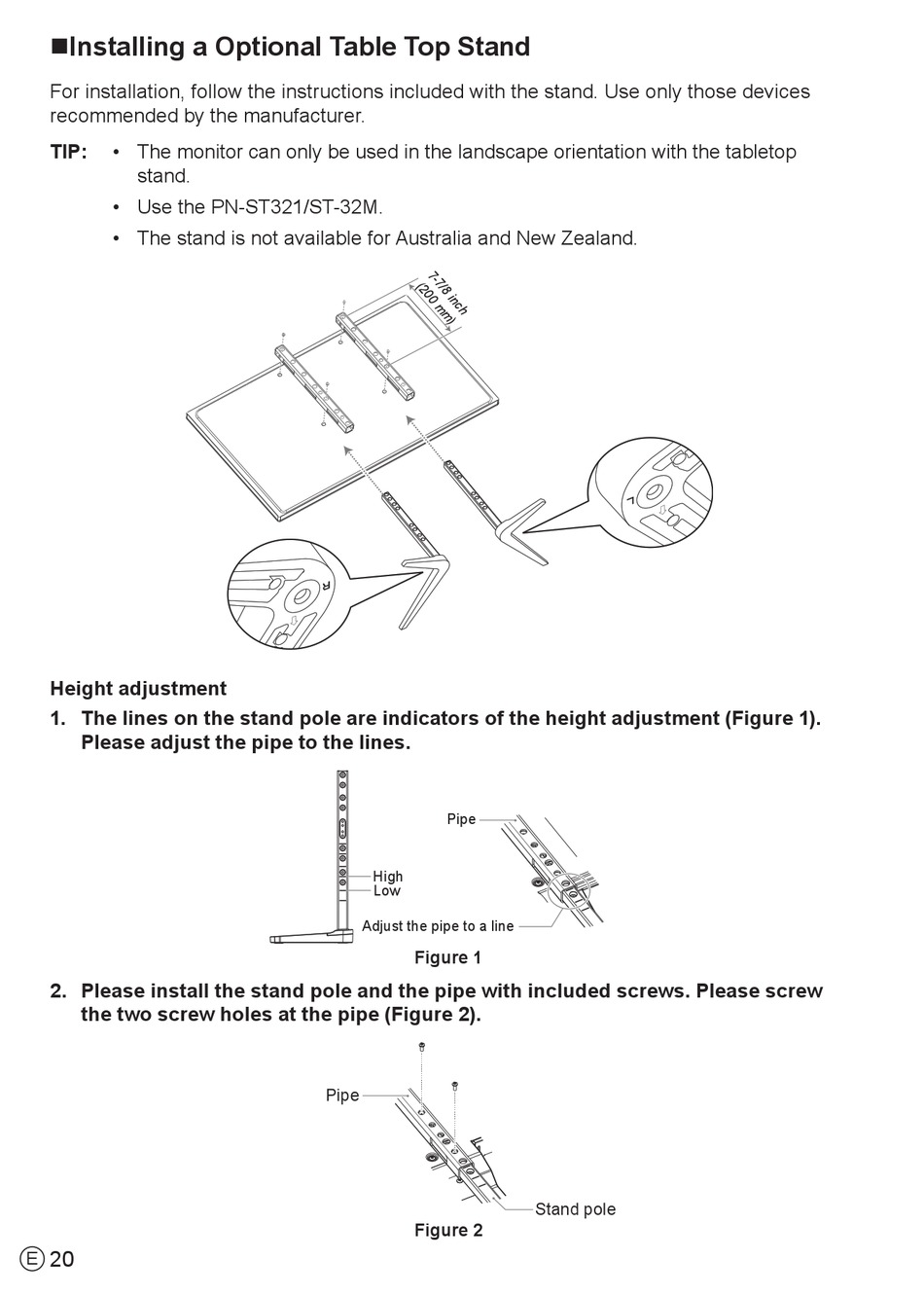

nInstalling a Optional Table Top Stand
For installation, follow the instructions included with the stand. Use only those devices
recommended by the manufacturer.

TIP: • The monitor can only be used in the landscape orientation with the tabletop
stand.

• Use the PN-ST321/ST-32M.

• The stand is not available for Australia and New Zealand.

Height adjustment

1. The lines on the stand pole are indicators of the height adjustment (Figure 1).
Please adjust the pipe to the lines.
2. Please install the stand pole and the pipe with included screws. Please screw
the two screw holes at the pipe (Figure 2).
20
E
Pipe
High
Low
Adjust the pipe to a line
Figure 1
Pipe
Figure 2
Stand pole
