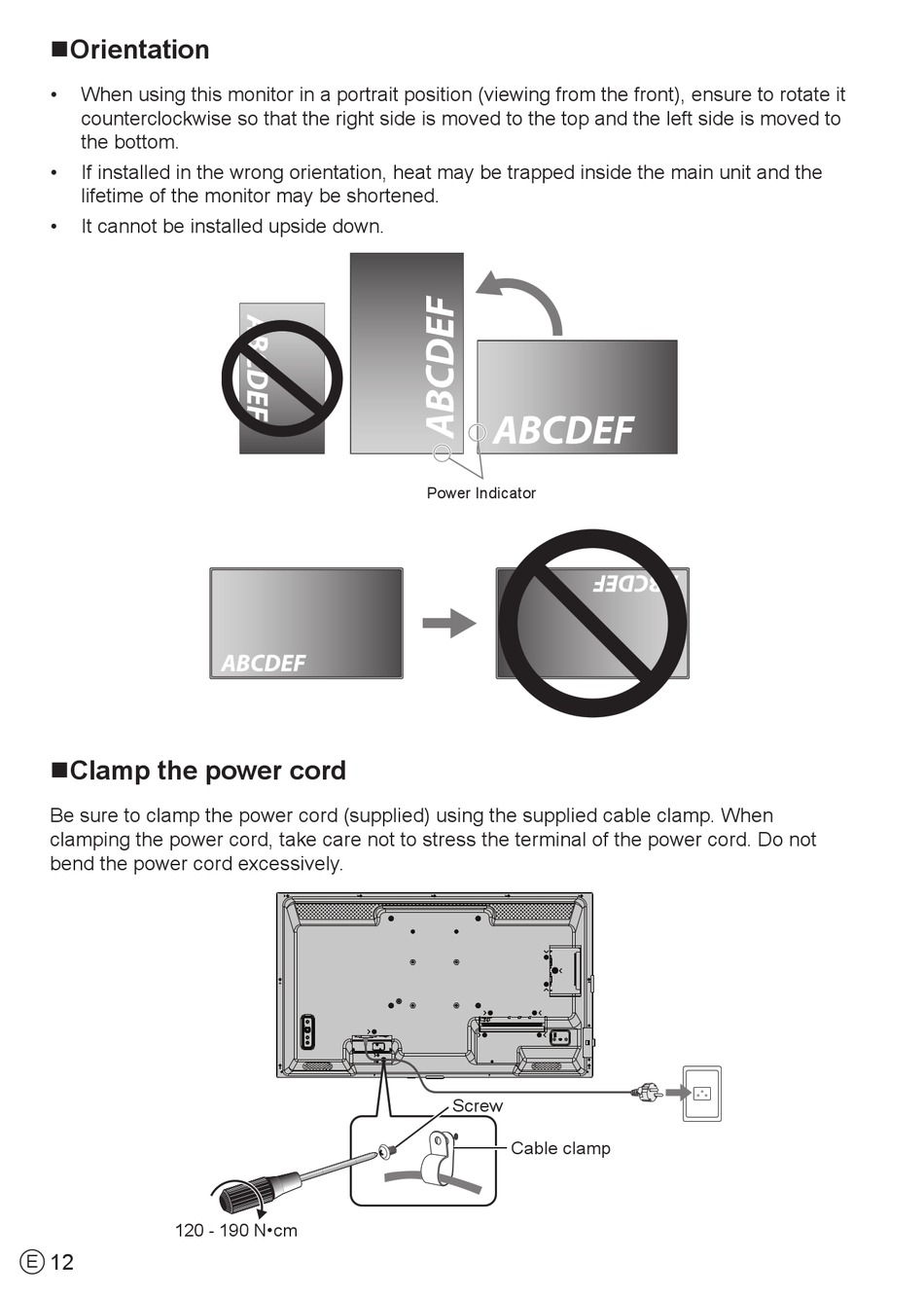

nOrientation
• When using this monitor in a portrait position (viewing from the front), ensure to rotate it
counterclockwise so that the right side is moved to the top and the left side is moved to
the bottom.
• If installed in the wrong orientation, heat may be trapped inside the main unit and the
lifetime of the monitor may be shortened.
• It cannot be installed upside down.
nClamp the power cord
Be sure to clamp the power cord (supplied) using the supplied cable clamp. When
clamping the power cord, take care not to stress the terminal of the power cord. Do not
bend the power cord excessively.
120 - 190 N•cm
12
E
Power Indicator
Screw
Cable clamp
