Trademarks & software licenses
DisplayPort™ and the DisplayPort™ logo are trademarks owned by the Video Electronics
Standards Association (VESA
MultiSync is a trademark or registered trademark of Sharp NEC Display Solutions, Ltd. in
Japan and other countries.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the
HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
All other brands and product names are trademarks or registered trademarks of their
respective owners.

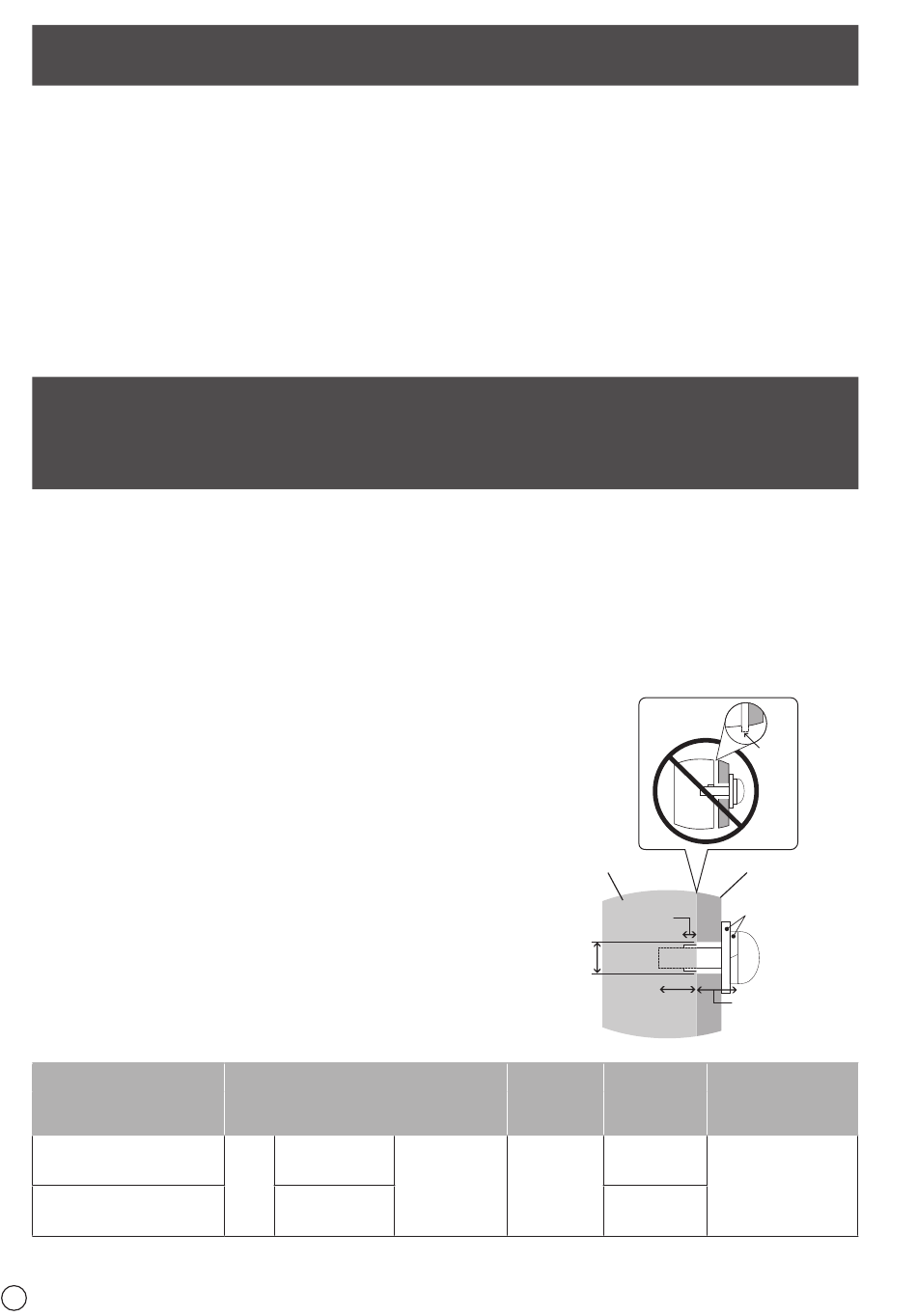

Mounting Precautions (For SHARP
dealers and service engineers)
Please read "Safety Precautions and Maintenance" carefully before installation.
Mounting the monitor requires expertise and the work must be carefully performed by a
trained service person in accordance with the section.
Please note the following when mounting on a wall or ceiling:
• We recommend mounting interfaces that comply with UL1678 standard in
North America.
• For detailed information, refer to the instructions
included with the mounting equipment.
We strongly recommend using the screws as shown
below.
If using screws longer than below mentioned, check the
depth of the hole.
• This monitor and bracket must be installed on a wall
which can endure at least 4 times or more the weight of
the monitor. Install by the most suitable method for the
material and the structure.
• Do not use an impact driver.
• After mounting, please carefully ensure the monitor is
secure, and not able to come loose from the wall or
mount.
Mounting
Interface Pitch
3-15/16 x 3-15/16 inch
(100 x 100 mm)
7-7/8 x 7-7/8 inch
(200 x 200 mm)
18
E
) in the United States and other countries.
®
Screw Size
(A) (B)
3/8-9/16 inch
+ thickness
(10-14 mm)
M4
and washer
1/4-3/8 inch
(6-10 mm)
C
Bracket
Hole
(C)
of bracket
≤ Ø 6 mm
in length
Gap Gap
Unit
Mounting
Bracket
Washers
No thread
D
B
Thickness of
bracket and
washers
No Thread Recommended
(D) Fasten Force
1/4 inch
(6 mm)
120-190 N•cm
1/16 inch
(2 mm)
A
