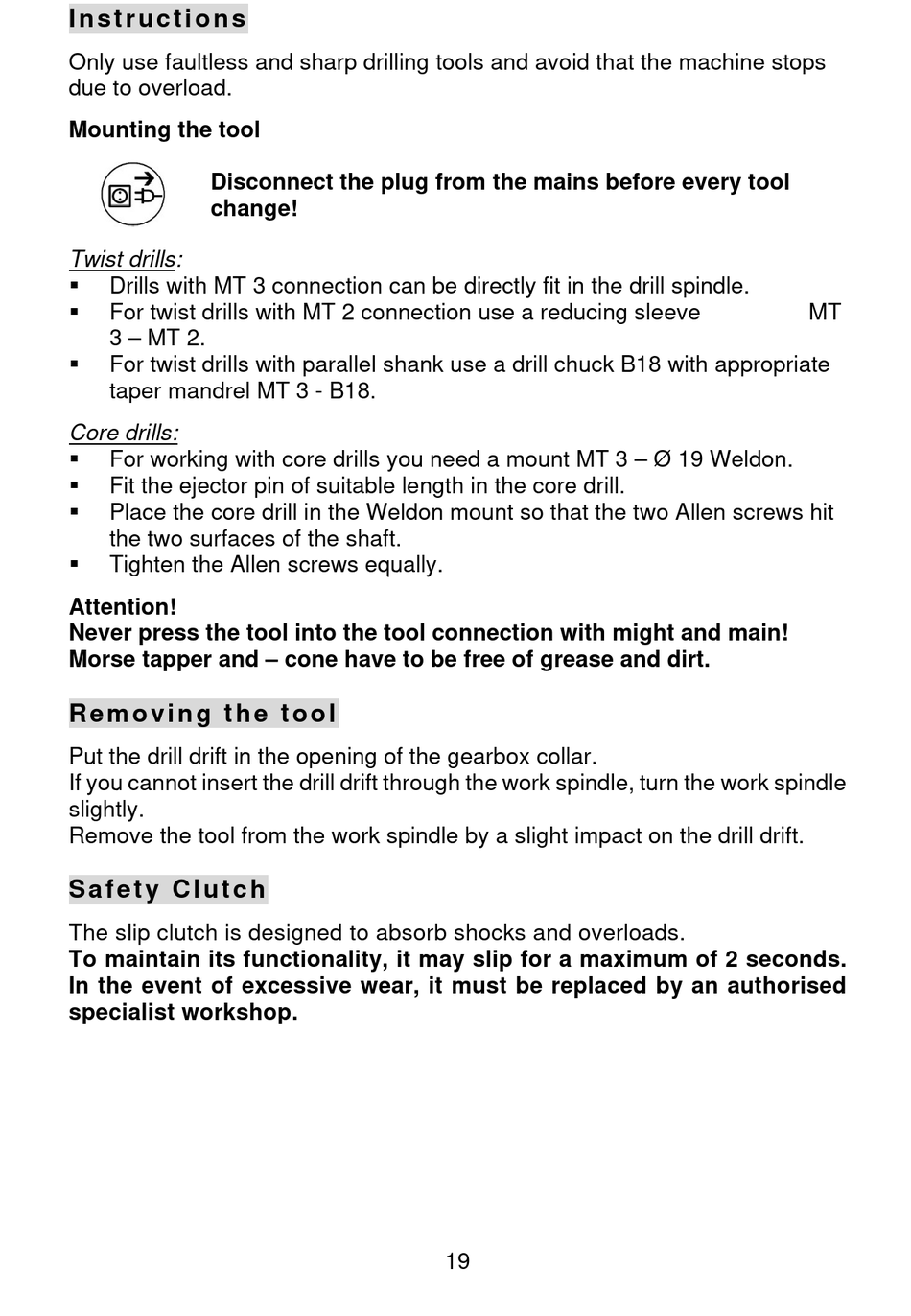

I n s t r u c t i o n s
Only use faultless and sharp drilling tools and avoid that the machine stops
due to overload.
Mounting the tool
Disconnect the plug from the mains before every tool
change!
Twist drills:
Drills with MT 3 connection can be directly fit in the drill spindle.

For twist drills with MT 2 connection use a reducing sleeve

3 – MT 2.
For twist drills with parallel shank use a drill chuck B18 with appropriate

taper mandrel MT 3 - B18.
Core drills:
For working with core drills you need a mount MT 3 – Ø 19 Weldon.

Fit the ejector pin of suitable length in the core drill.

Place the core drill in the Weldon mount so that the two Allen screws hit

the two surfaces of the shaft.
Tighten the Allen screws equally.

Attention!
Never press the tool into the tool connection with might and main!
Morse tapper and – cone have to be free of grease and dirt.
R e m o v i n g t h e t o o l
Put the drill drift in the opening of the gearbox collar.
If you cannot insert the drill drift through the work spindle, turn the work spindle
slightly.
Remove the tool from the work spindle by a slight impact on the drill drift.
S a f e t y C l u t c h
The slip clutch is designed to absorb shocks and overloads.
To maintain its functionality, it may slip for a maximum of 2 seconds.
In the event of excessive wear, it must be replaced by an authorised
specialist workshop.
