 To remove the needle cartridge, turn it
anti-clockwise and remove it from the
grip.
5.3 Connecting the power unit
CAUTION
Risk of short circuits and risk of mild
electric shocks
If cable or cable connection is visibly
damaged, there is a risk of electric
shock and damage to the electronics.
 Perform a visual inspection of the HAWK
Pen and the cable for signs of damage,
e.g. a defective cable connection.
 Never bend the connecting cable
while in operation.
 Observe the operating instructions
for the particular power unit.
CAUTION
Cables constitute a trip hazard
People can stumble over inappropriately
routed cables and get injured.
 Route all cables so that no-one can
stumble over them or pull them
accidentally.
29 EN

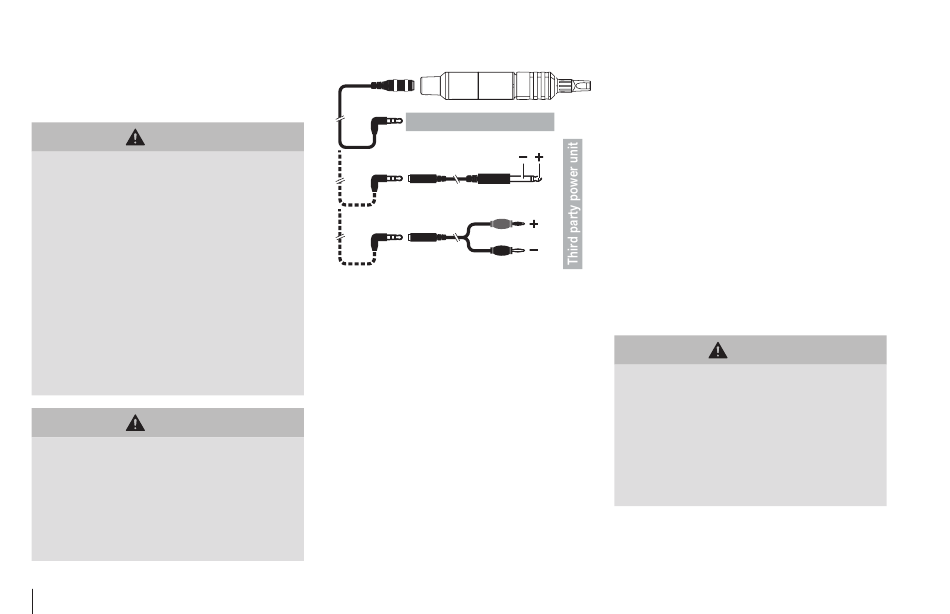

There are three ways to supply power to
the machine:
Cheyenne Power Unit
Supplied adapter cable
Y-adapter cable
1. Connecting it to a Cheyenne power unit
with the machine cable provided in the
scope of delivery (recommended).
2. Connection to a third-party power unit
with the 6.3 mm jack and the cable
adapter supplied. The external power
unit must deliver approx. 6 to 12.5 V DC
direct current and the required start-
up current indicated in chapter 4.1 on
page 26. If more than about 13.5 V is
connected to the machine, it will shut
down automatically.
3. Connection to a third-party power
supply using the optionally available Y-
cable adapter with banana plugs. The
red banana plug must be connected to
the positive terminal while the black
banana plug must be connected to the
negative terminal of the third-party
power unit.
 Connect the socket of the connecting
cable (supplied) to the connection on
the drive unit of the HAWK Pen.
 Plug the jack of the connecting cable
fully into the output socket on the
power unit.
 Connect the power unit to the mains
power supply.
 Cover the Power Unit and the HAWK
Pen Tray with a plastic sheet.
5.4 Fitting the protective sleeve
CAUTION
Infection from contaminated protec-
tive sleeve
Failure to replace the protective sleeve
for the grip can lead to a transmission
of illnesses.
 Use a new protective sleeve for the
grip for each customer.
