Connections
See the connection diagram on p.28.
Current
The controller unit is suitable for both 12 and
24 volts DC.
The current for which the wiper motors are
suitable must correspond to the onboard cur-
rent (12 or 24 V)
The plus cable of the controller unit must in-
clude a main fuse and a switch. Use a smaller
fuse if applicable, appropriate for the total
maximum current of the 3 wiper motors.
Use connecting wires with a sufficiently large
diameter. See the connection diagram for the
recommended minimum wire diameter. Con-
nect the current to the cable spades provided
(ø 5 mm).
Wiper motors
Use only wiper motors of the same type; wiper
motors must be equipped with an automatic
park setting.
The wiper motors used must have 2 speeds to
be able to use both low and high speeds. For ex-
ample, VETUS type RWS and HDMC. VETUS type
ORW is not suitable.
Connect the wiper motors to the controller
unit as indicated in the diagram. Use connect-
ing wires with a sufficiently large diameter.
(See the connection diagram on p. 28 for the
recommended wire diameter).
Installation and user manual Windscreen wiper controller
n !
ote
n !
ote
Panel
Connect the control panel to the control unit as
described in the diagram. The connector wires
should have a core cross section that corre-
sponds to the core cross section as indicated.
Washer
A water pump or magnetic valve can be con-
nected to the WASHER connection for a washer.
The current for which the water pump or
magnetic valve are suitable must correspond
to the onboard current (12 or 24 V)
Rain sensors
Consult the manual provided with the rain sen-
sors to determine how to install them.
Safeguards
Each wiper motor is individually protected by
a fuse. The washer pump is also protected by
a fuse.

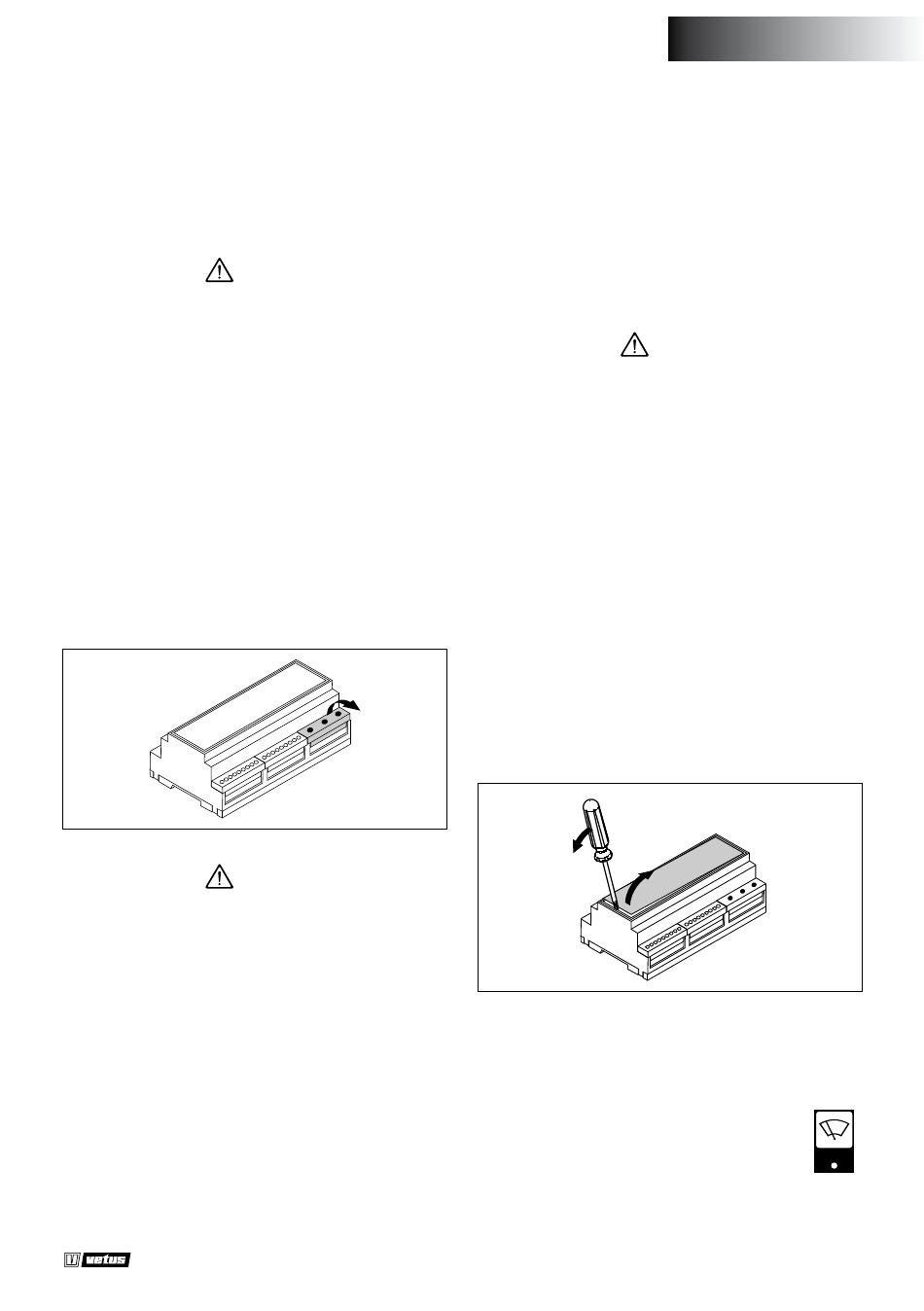

These fuses are under the lid of the controller
unit (see diagram below on how to remove lid).
See 'Technical data' for fuse values.
4

Operation

Wiper button
The three wiper switches on the pan-
el can be used to operate three wipers
in total. Each wiper (windshield wiper
motor) has its own switch. The switch is
ENGLISH
n !
ote
