Take care not to invert polarities when connecting the unit to the power supply. If this happens, the plate
does not come on and the unit does not work.
Centrifugal
blower
Az Blue
N Black
R Red
V Green
B White
A Yellow
Na Orange
M Brown
Compressor
electronic
module
2
Compressor
IMPORTANT WARNING!
Electronic
board
Toma original
24

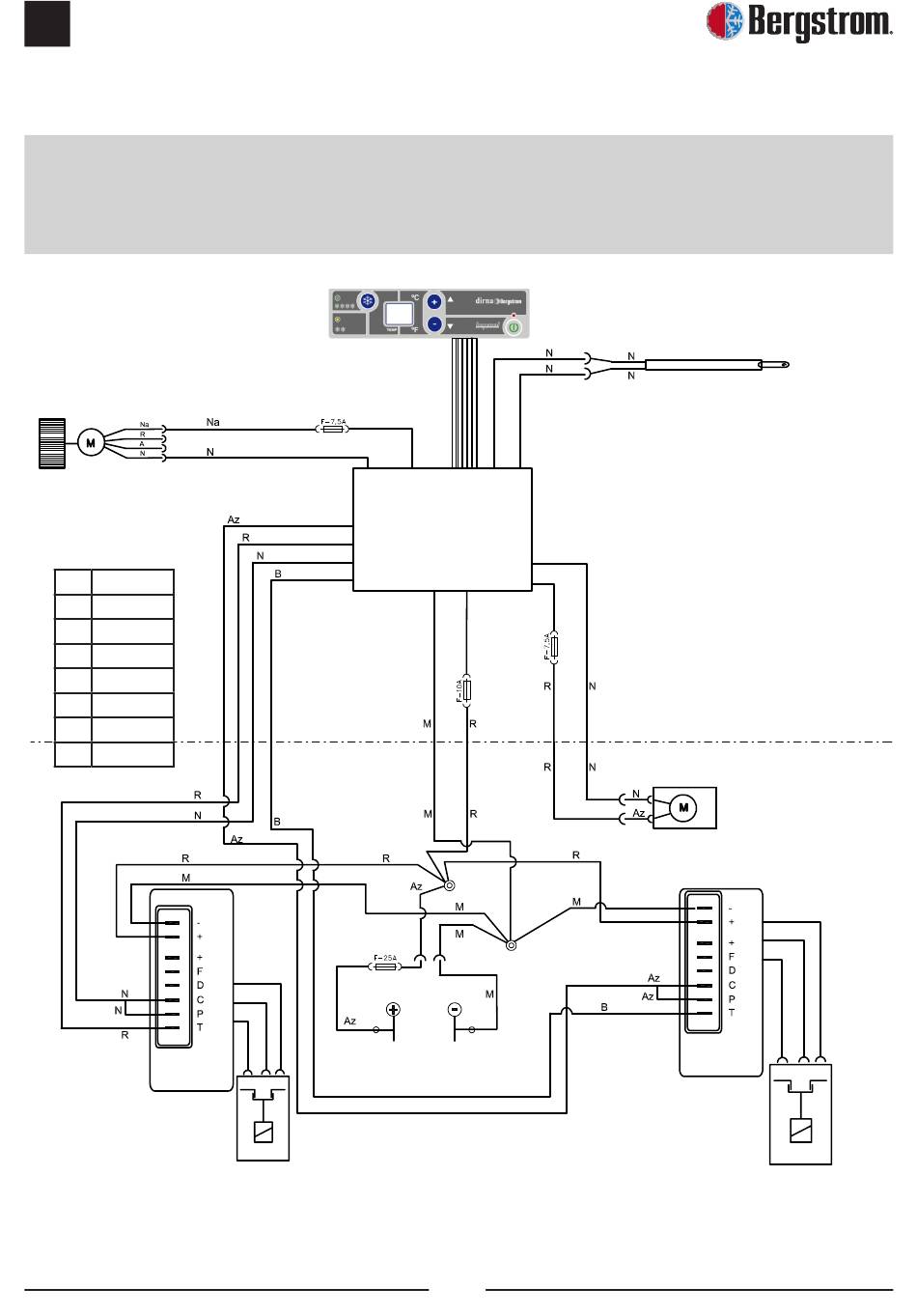

Electric wiring

Return
air sensor
Condenser
fan
Compressor
electronic
module
1
Compressor
