Cruiser/Swing FRONT CARRIER (VBK0259)
Cruiser/Swing FRONT CARRIER (VBK0259)
The optionally front carrier allows transporting additional luggage on the Cruiser (not at HS
models) and Swing models.
This manual consists of two parts (assembly instruction and manual).
Hand the manual over to the customer.
Scope of delivery
•
1x Front carrier incl. short clamping piece and light bracket (pre-assembled)
1x Carrier bracket incl. 2 long clamping pieces (pre-assembled)
•
1x Board PP incl. expander rope (pre-assembled)
•
•
1x Rounded head screw M6x10mm
1x Square nut M6
•
1x Fork clamping piece
•
1x Light bracket
•
•
1x Low headset cap
1x Cylinder head screw (M6x30)
•
1x Plastic spacer 6x5x5 (pre-assembled)
•
•
1x Self-locking nut M6 A2 (pre-assembled)
2x Washer (d=6,4mm DIN 125 A2) (pre-assembled)
•
4x Zip tie
•
Assembly
1.
Demount stem, spacers and front light.
2.
If not existing, install new light bracket
install it again with light bracket, fig. 1).
Reinsert the front fork into the head tube.
3.
At models with 165mm steerer tube replace existing headset by low headset cap
4.
Mount rounded head screw M6x10
3).

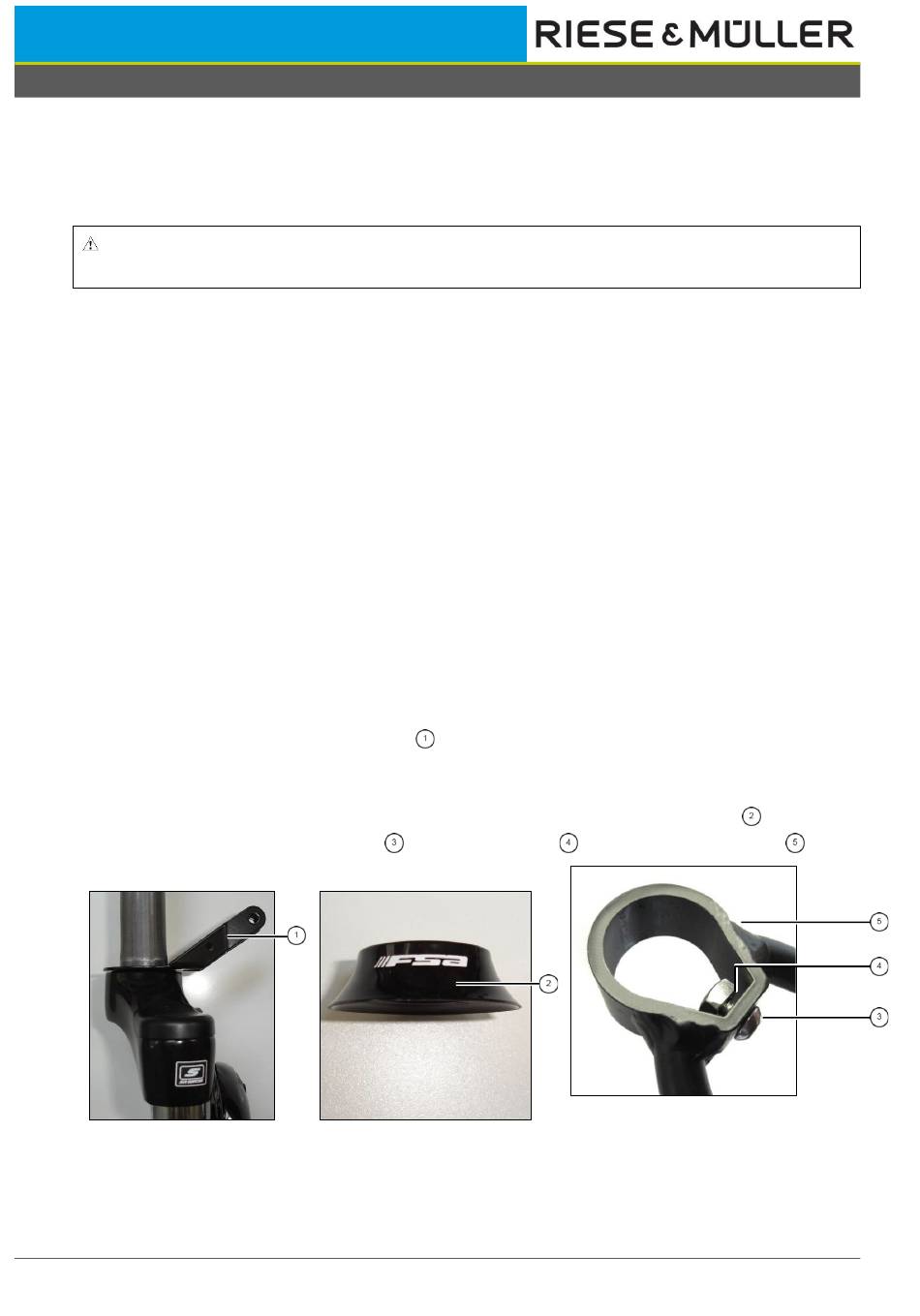

fig. 1: replace light bracket
